Groundsmaster 4100--D/4110--DPage 5 -- 32Electrical System
Hydraulic Valve Solenoid Coils

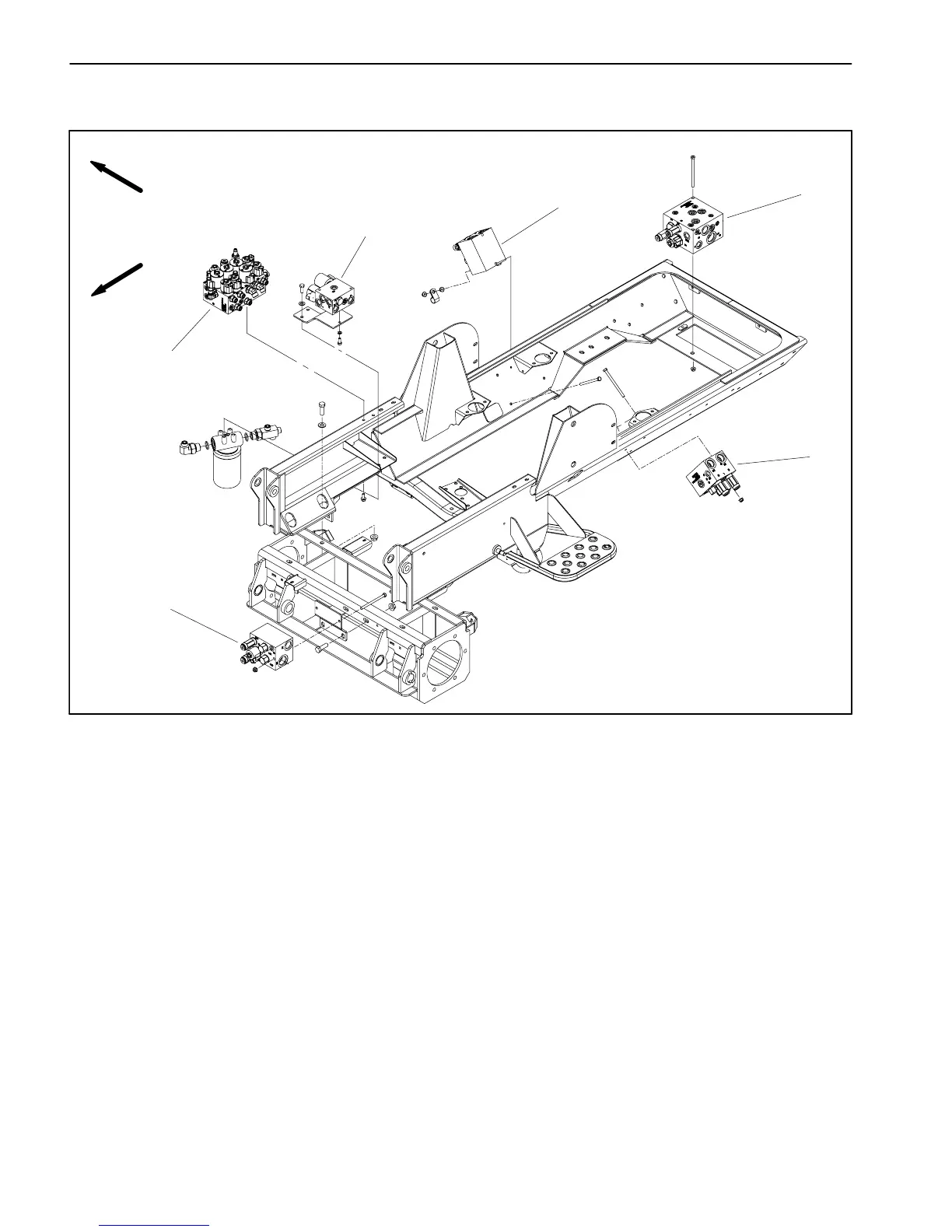

Figure 38
1. 4WD manifold
2. LH wing deck manifold
3. RH wing deck manifold
4. Front deck manifold
5. Fan drive manifold
6. Lift/lower manifold
FRONT
RIGHT
1
2
3
4
5
6
Several hydraulic solenoid valve coils are used on the
hydraulic control manifolds of Groundsmaster 4100--D
and 4110--D machines. When energized by the TEC
controller, these coils provide hydraulic circuit control.
Solenoid valve coils with two (2) different resistance
specificationsareusedonthe4100--Dand4110--D.The
correct resistance of a coil can be identified by measur-
ing the height and diameter of the coil (Fig. 39). Resist-
ance testing of the coils can be done with the coil
remaining on the hydraulic valve.
NOTE: To assist in troubleshooting, identical solenoid
coils can be exchanged. If the problem follows the ex-
changed coil, a problem with the coil likely exists. If the
problem remains unchanged, something other than the
solenoid coil is the problem source (e.g. switch, circuit
wiring,hydraulicproblem).Refertoyourpartscatalogto
determine if solenoid coils are identical.
