Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 14
Wing Deck Latch
Disassembly (Fig. 12)
1. Raise wing deck to transport position. Carefully ro-
tate latch to closed position.
2. Loosen lug nut to release compression spring ten-
sion.
3. Remove retaining ring and flat washer from bottom
of latch pin. R otate lug nut enough to allow latch pin to
be removed from latch.
4. Remove lug nut from spring support. Remove latch
assembly from deck.
5. Disassemble latch (items 1 through 8) using Figure
12 as a guide.
Assembly (Fig. 12)
1. Assemble latch (items 1 through 8) using Figure 12
as a guide.
2. Slide spring onto spring support and insert end of
spring support into hole located on underside of center
deck. Start lug nut (tapered side towards plate ondeck)
onto spring support.
3. Tighten lug nut until holes in front of deck align with
bushings in latch. Insert latch pin with retaining ring
downthroughdeckandlatch.Securelatchpinonunder-
side of deck with flat washer and retaining ring.
4. Carefully rotate latch to the open position. Lower
wing deck to allow link to engage latch.
5. Lubricate latch grease fitting.

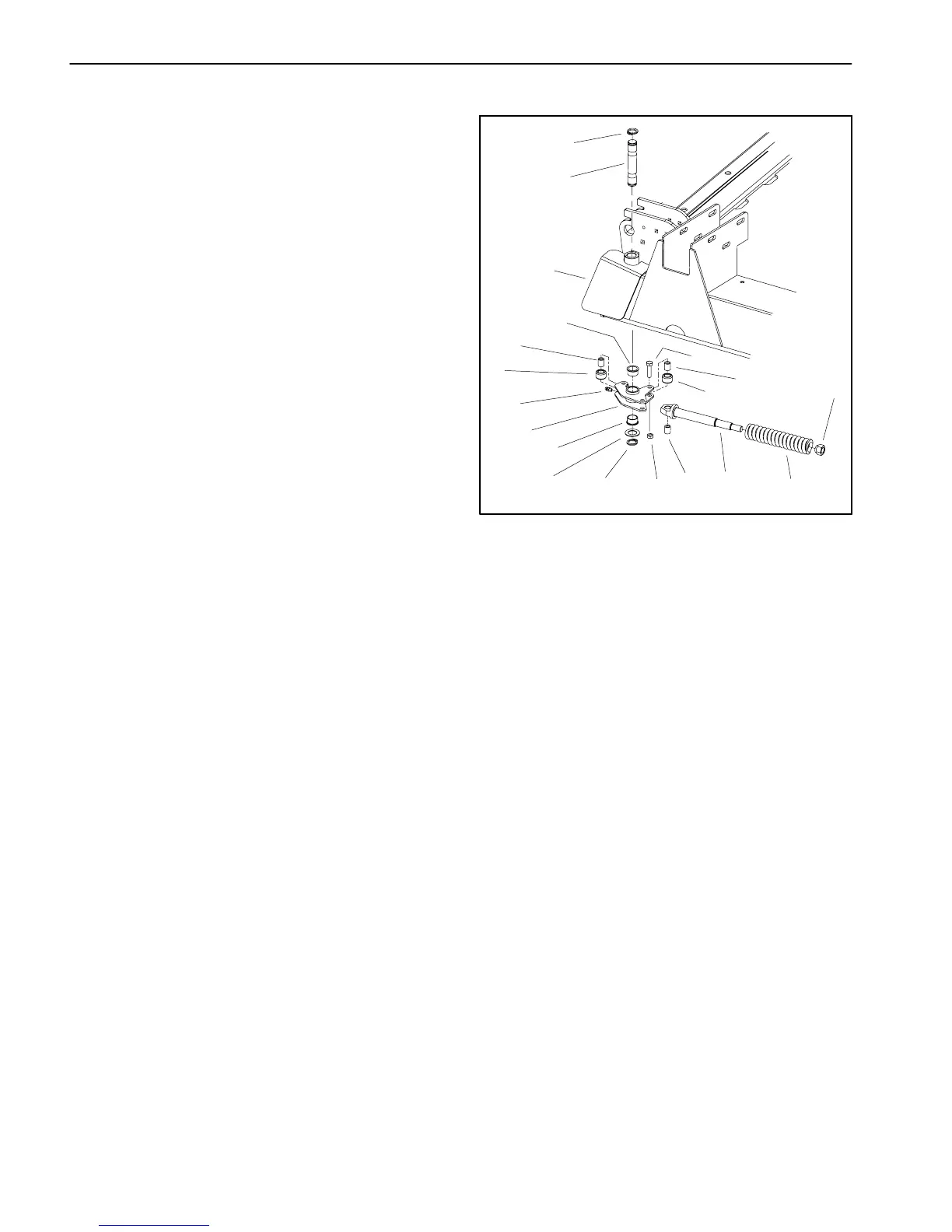

1. Latch
2. Grease fitting
3. Lock roller
4. Bushing
5. Flange bushing
6. Cap screw (3 used)
7. Spring support
8. Lock nut (3 used)
9. Retaining ring
10. Flat washer
11. Compression spring
12. Lug nut
13. Latch pin
14. Center deck
Figure 12
5
6
1
7
3
8
10
11
2
9
4
13
9
14
12
3
4
5
4
