Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 24

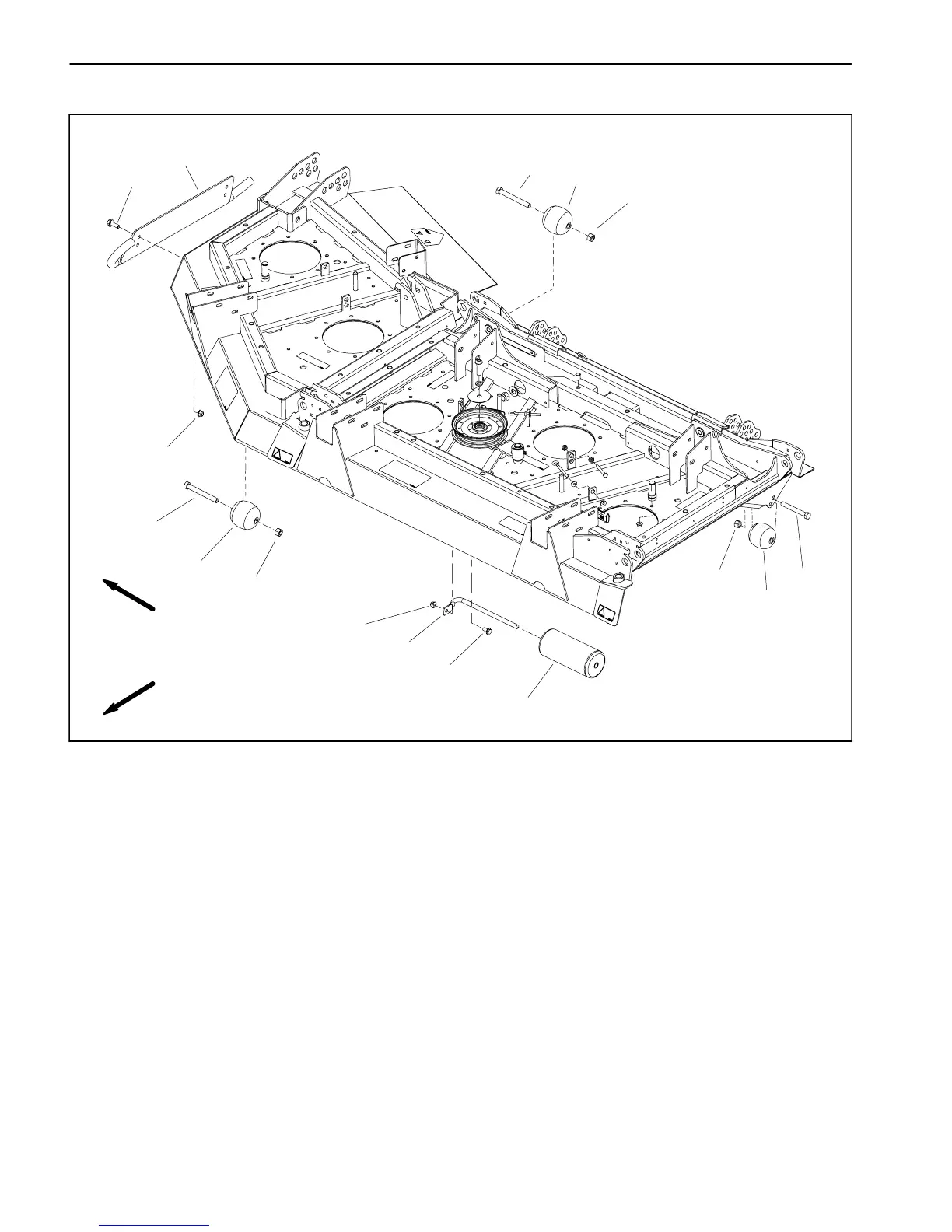

Deck Rollers and Skids
1. Roller
2. Flange head screw
3. Roller shaft
4. Flange nut
5. Lock nut
6. Roller
7. Cap screw
8. Flange nut
9. Skid (RH shown)
10. Flange head screw
Figure 23
1
2
3
4
5
6
7
5
6
7
5
6
7
8
10
9
FRONT
RIGHT
Removal (Fig. 23)
1. Remove skids and rollers fromdeckusingFigure23
as a guide.
Installation (Fig. 23)
1. Install skids (item 9) to deck using Figure 23 as a
guide. Make sure to install skids in the same mounting
hole height position (lower or upper).
2. Install rollers (items 1 and 6)todeckusing Figure 23
as a guide. When installing r oller (item 6), install cap
screw with the threads orientated toward the centerline
ofthedeck.Installandtightenlocknutuntilrollerwillnot
rotate, then loosen lock nut only enough to allow roller
torotatefreely.Makesuretoinstallall deckrollersinthe
same mounting hole height position (lower or upper).
