Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 10
Wing Deck Service
1. Wing deck (RH shown)
2. Skid (RH shown)
3. Flange screw (2 used per skid)
4. Flange nut (2 used per skid)
5. Cap screw
6. Roller (2 used)
7. Lock nut
8. Pivot latch (2 used)
9. Flat washer
10. Retaining ring (2 used per latch)
11. Cap screw (3 used per latch)
12. Lock nut (3 used per latch)
13. Spring support
14. Compression spring
15. Lug nut
16. Lock roller (2 used per latch)
17. Bushing (3 used per latch)
18. Pivot pin (4 used)
19. Flange nut (front links)
20. Grease fitting
21. Link assembly (4 used)
22. Cap screw (front links)
23. Thrust washer (0.030” thick)
24. Flat washer (4 used)
25. Lock nut (4 used)
26. Carriage bolt (4 used)
27. Latch pin
28. Flat washer (2 used)
29. Cap screw (4 used)
30. Cap screw (rear links)
31. Hex jam nut (rear links)
32. Washer head screw (12 used)
33. Wing strap (2 used)
34. Flex shield (2 used)
35. Shield strap (center deck)
36. Washer head screw (2 per shield)
37. Tapered stud
38. Hose guide
39. Hardened spacer (0.120” thick)
40. Plug
41. Grease fitting
42. Foam washer (4 used)
43. Link skid (2 used)
44. Link skid (2 used)
45. Flat washer
46. Flange nut
47. Dust cap
48. Retaining ring
49. Spherical bearing
50. Switch shield (RH shown)
51. Center deck
52. Flange bushing
53. Grease fitting

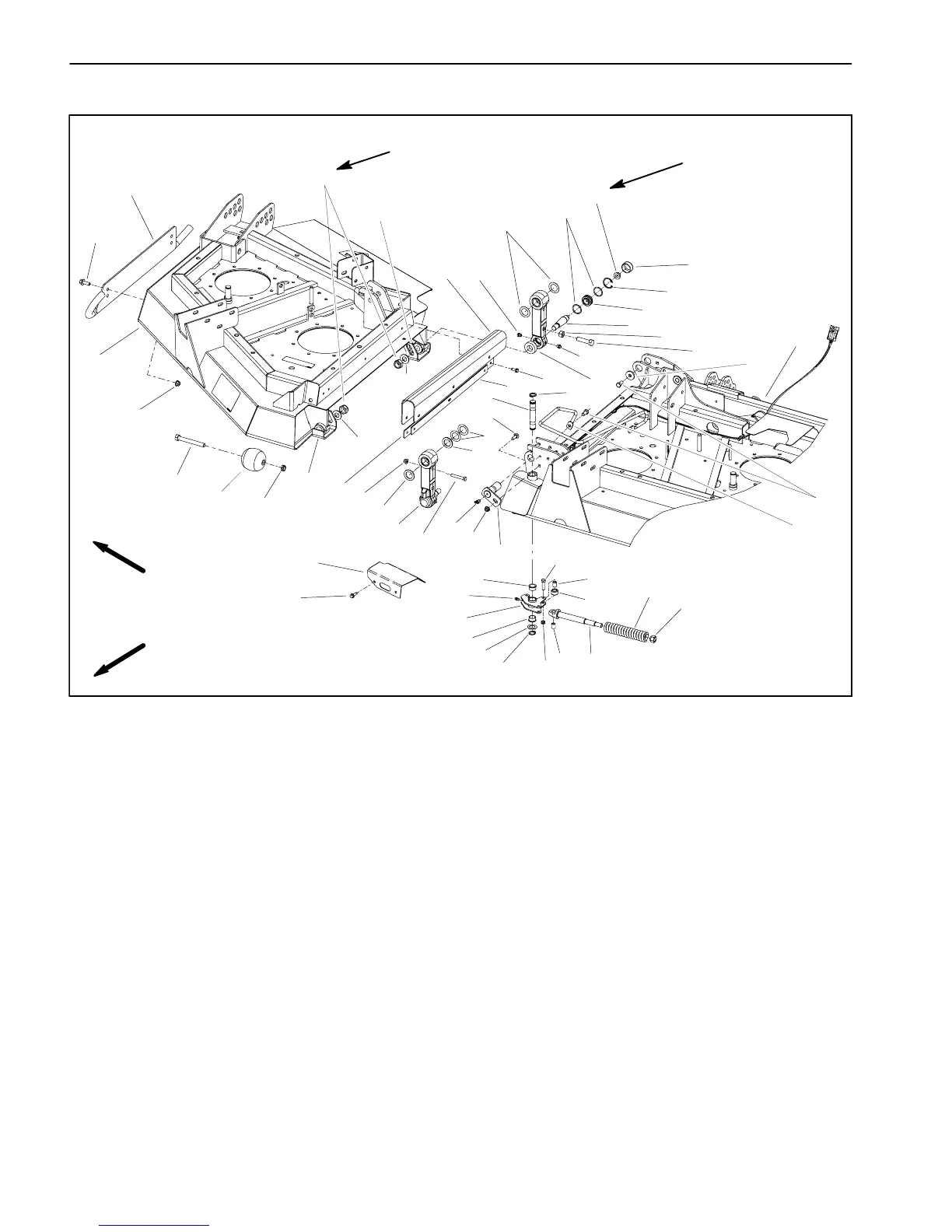

Figure 6
FRONT
RIGHT
1
2
10
15
9
16
33
34
8
37
38
39
29
28
35
36
30
17
21
18
22
19
23
20
24
26
27
25
32
6
7
31
3
4
5
42
40
41
11
12
13
14
10
17
19
23
24
39
43
44
47
48
45
46
49
50
51
52
53
52
30 to 40 ft--lb
(41to54N--m)
160 to 180 ft--lb
(217 to 244 N--m)
