Groundsmaster 4100--D/4110--DPage 6 -- 8Axles, Planetaries and Brakes
Brake Service

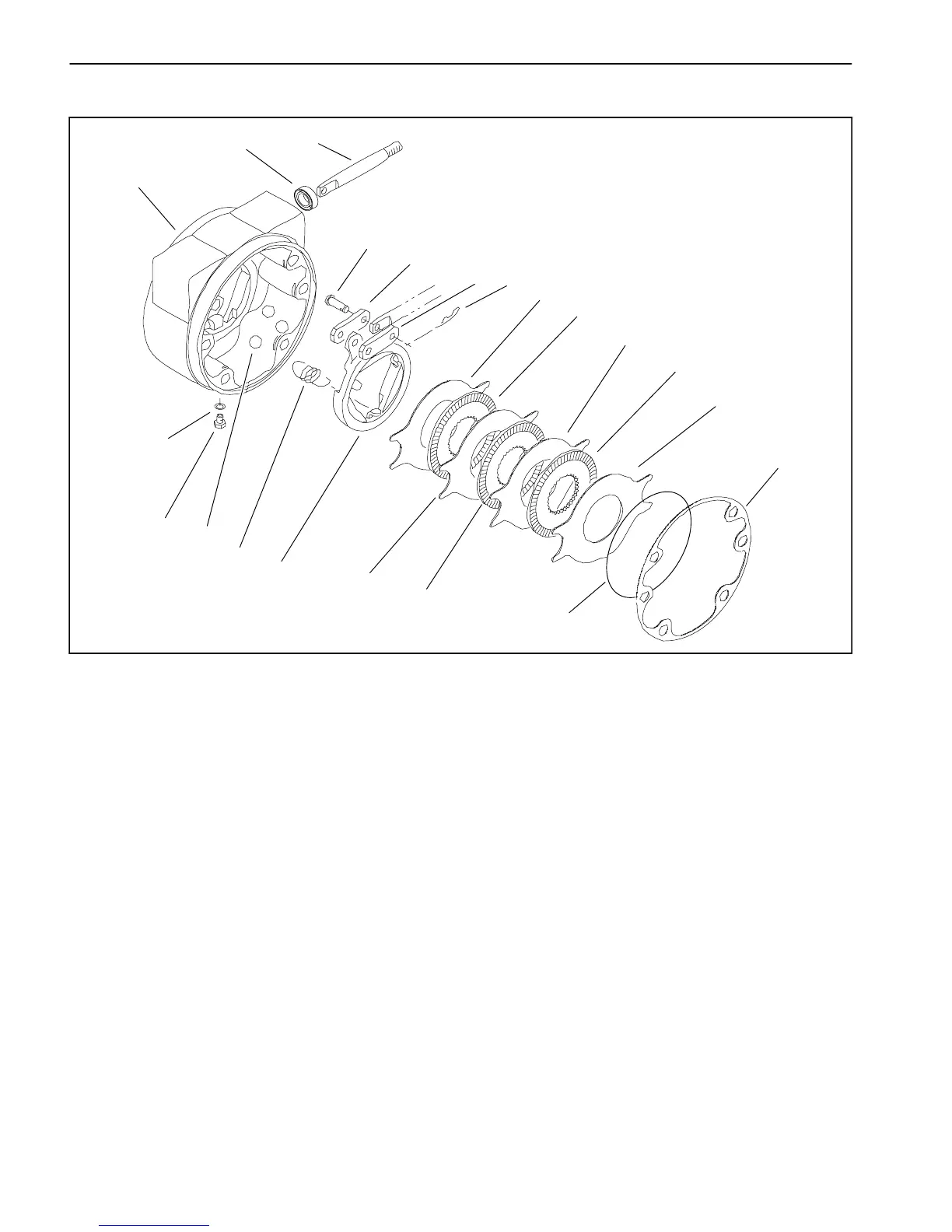

1. Brake housing (LH shown)
2. Seal
3. Pull rod
4. Clevis pin (2 used)
5. Link
6. Hitch pin (2 used)
7. Stationary disc (4 used)
8. Rotating disc (3 used)
9. Retaining ring
10. Gasket
11. Rotating actuator
12. Extension spring (3 used)
13. Ball (3 used)
14. Plug
15. O--ring
Figure 6
3
2
4
5
6
7
8
9
10
14
13
12
11
15
1
5
8
8
7
7
7
Brake Inspection and Repair (Fig. 6)
1. Scrapegasketmaterial(item10)frombrakehousing
and planetary wheel drive mounting surfaces.
2. Remove retaining ring (item 9).
3. Remove four (4) stationary discs (item 7) and three
(3) rotating discs (item 8).
4. Remove three ( 3) extension springs (item 12).
5. Remove actuator assembly (items 11, 6, 5, 4 and 3)
and balls (item 13).
6. Remove seal (item 2) from brake housing.
7. Washpartsincleaningsolvent.Inspectcomponents
for wear or damage.
A. Thestackoffour(4)stationaryandthree(3)rotat-
ingdiscs should have a minimum thickness of0.440
in. (11.2 mm).
8. Reverse steps 2 -- 6 to assemble brakes, installing
new parts as necessary. Install a new seal (item 2).
9. Useanewgasket(item10)wheninstallingbrakeas-
sembly to machine.
