Groundsmaster 4100--D/4110--DPage 6 -- 12Axles, Planetaries and Brakes

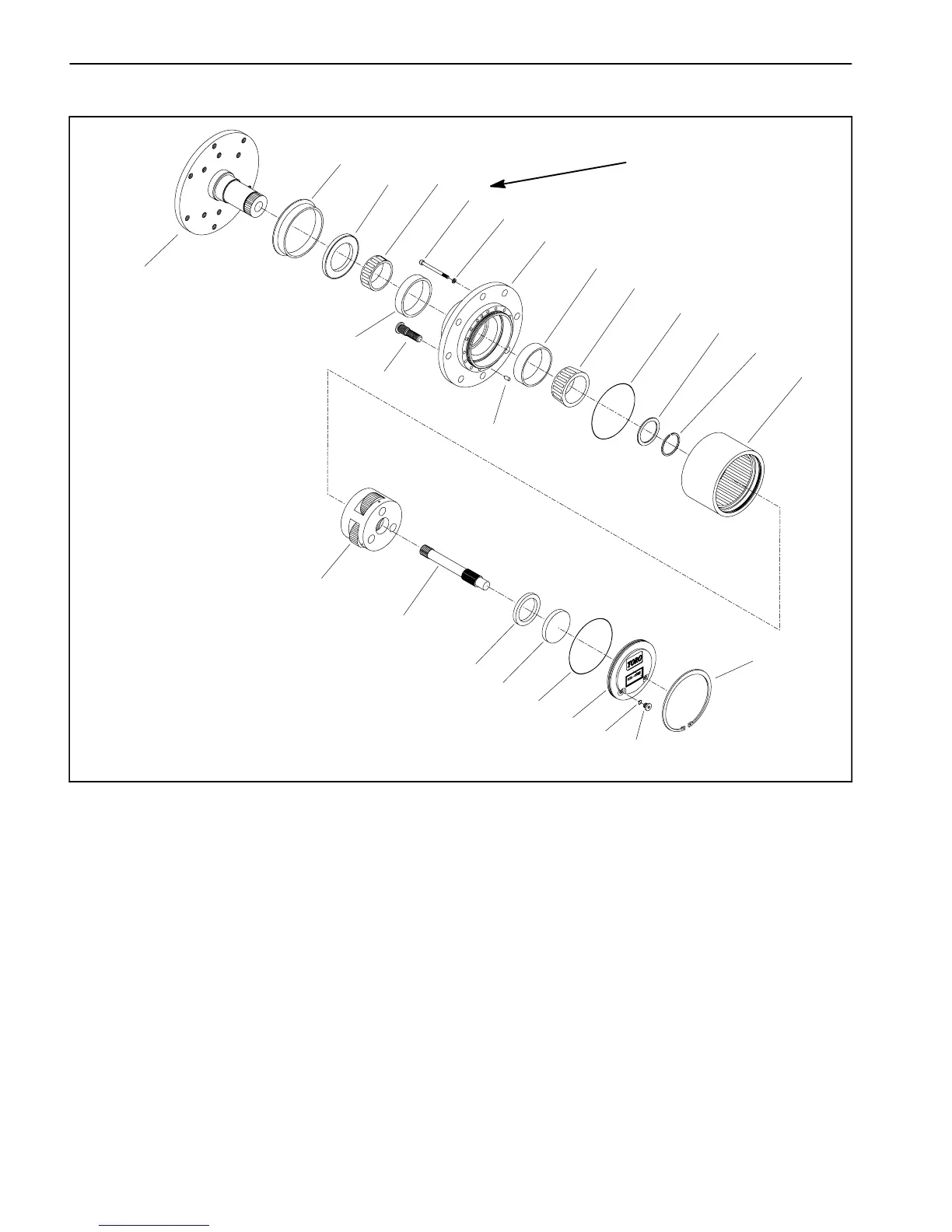

Planetary Wheel Drive Service
1. Spindle
2. Boot seal
3. Bearing cone
4. Bearing cup
5. Wheel stud (8 used)
6. Housing
7. Bearing cup
8. Bearing cone
9. Thrust washer
10. Retaining ring (external)
11. Ring gear
12. Retaining ring (internal)
13. Plug (2 used)
14. End cap
15. Thrust plug
16. Thrust washer
17. Drive shaft
18. Carrier assembly
19. Socket head screw (16 used)
20. Lock washer (16 used)
21. O--ring
22. O--ring
23. Dowel pin (2 used)
24. Seal
Figure 9
9ft--lb
(12 N--m)
1
2
3
4
19
20
6
7
8
9
10
23
5
11
13
14
15
16
12
17
21
22
18
24
21
NOTE: Theplanetarywheeldriveassemblycanbeser-
viced with the planetary installed to machine. If the
spindle(item1)needstoberemovedfrommachine,see
Planetary Wheel Drive Assembly Removal in this sec-
tion.
