Groundsmaster 4100--D/4110--DPage 6 -- 4Axles, Planetaries and Brakes
Service and Repairs
Brake Assembly
1. Planetary assembly
2. Retaining ring
3. Splined brake coupler
4. Brake assembly (RH)
5. O--ring
6. Hydraulic wheel motor
7. Flat washer
8. Cap screw (2 used per side)
9. Flange head screw (4 used per side)
10. Brake assembly (LH)
11. Gasket
12. Flange head screw (6 used per side)
13. Tire and wheel assembly
14. Lug nut (8 used per wheel)
15. Jam nut
16. Compression spring
17. Spring plate
18. Brake link

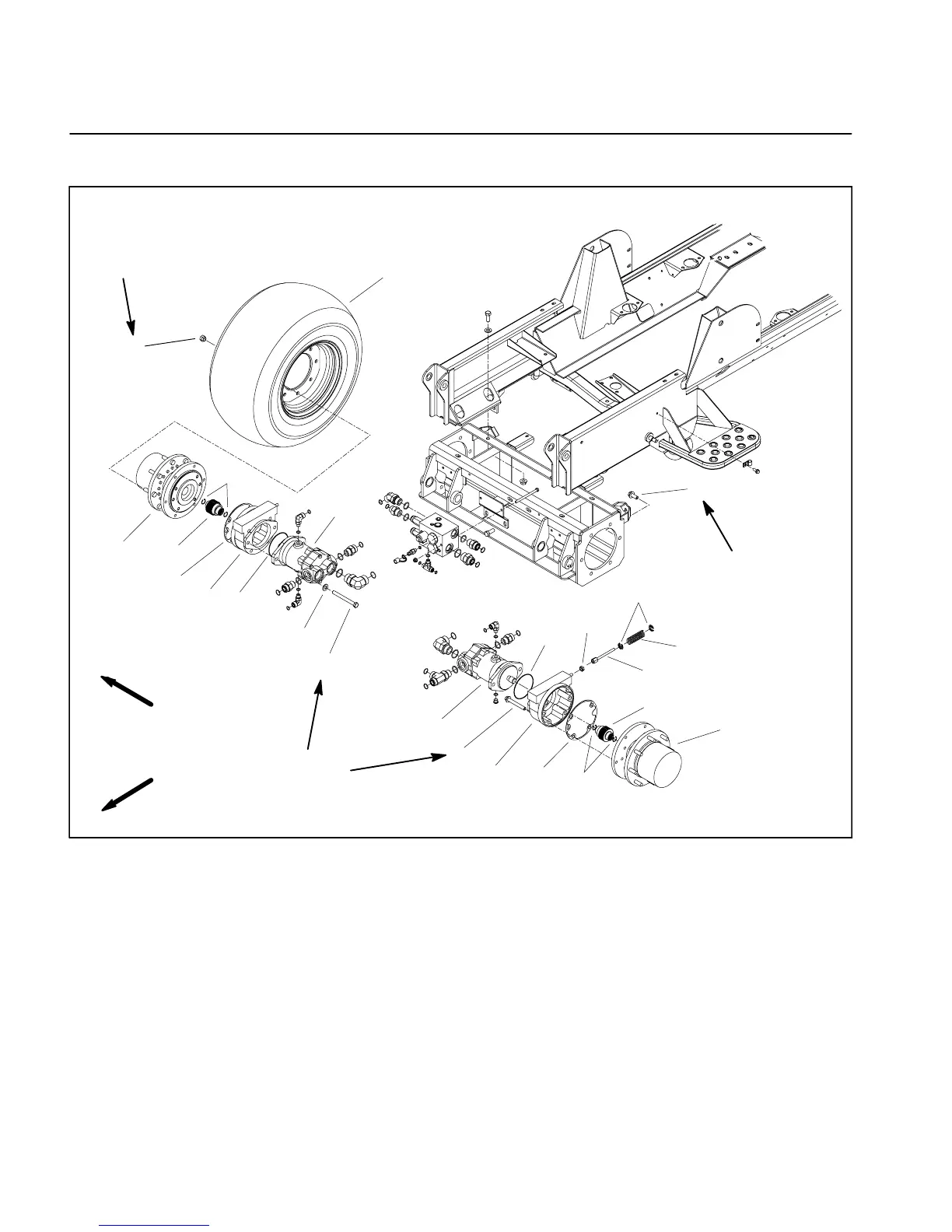

Figure 1
FRONT
RIGHT
75 to 85 ft--lb
(101 to 115 N--m)
85 to 100 ft--lb
(115 to 135 N--m)
75 to 85 ft--lb
(101 to 115 N--m)
5
15
2
1
2
3
4
5
6
12
13
9
10
11
8
7
14
1
6
11
3
16
17
18
