Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 6
Service and Repairs
CAUTION
Never install or work on the cutting deck or lift
arms with the e ngine running. Always stop en-
gine and remove ignition key first.

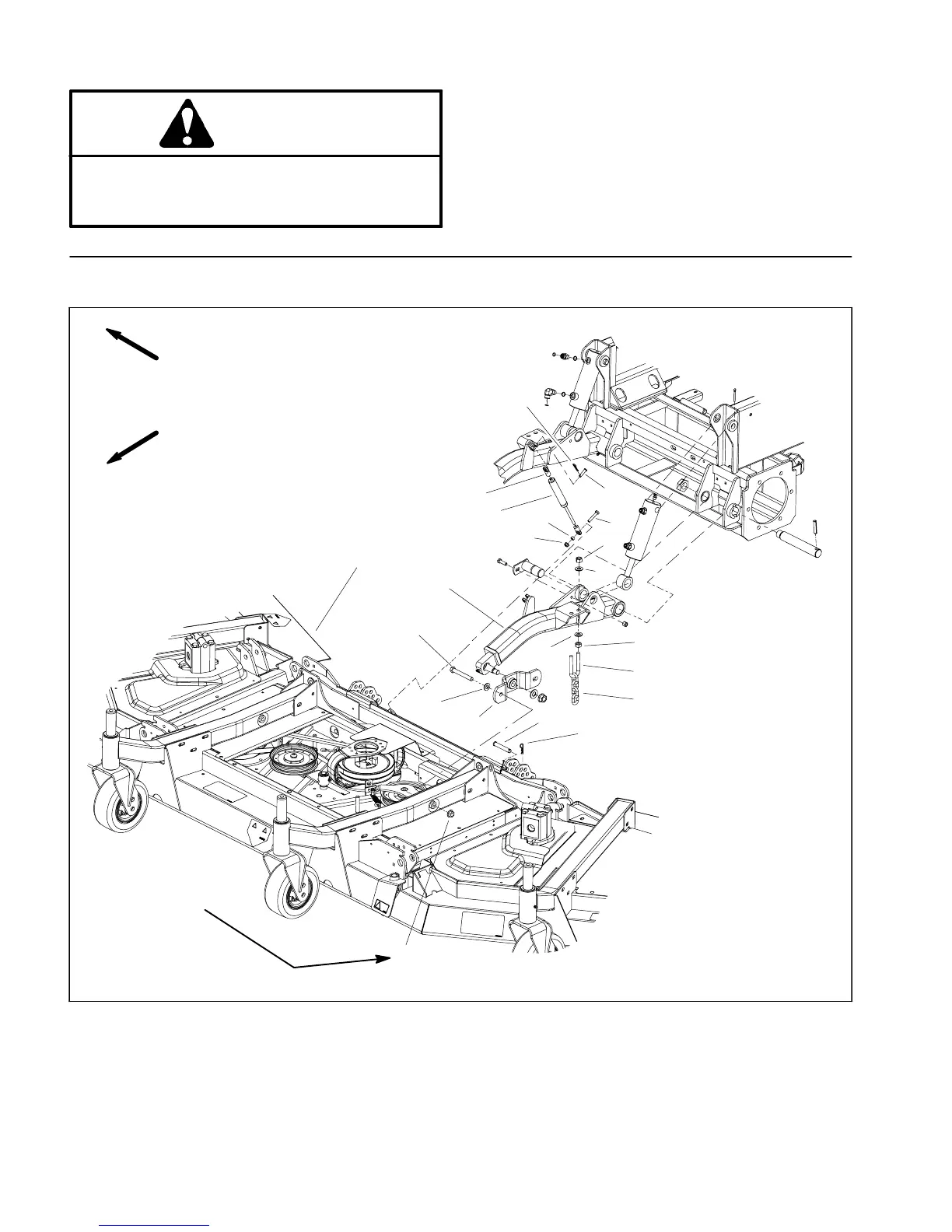

Cutting Deck
1. Cutting deck
2. Cap screw
3. Lift arm (LH shown)
4. Flange nut
5. Spacer
6. Damper
7. Damper rod end (2 per damper)
8. Hair pin
9. Clevis pin
10. Cap screw
11. Flange nut
12. Hair pin
13. Hex nut
14. U--bolt
15. Height of cut chain
16. Support hub
17. Clevis pin
18. Flat washer
Figure 1
FRONT
RIGHT
8
5
4
2
13
9
10
18
1
3
6
11
7
18
14
15
16
17
18
12
11
75 to 85 ft--lb
(102 to 115 N--m)
