Groundsmaster 4100--D/4110--DPage 7 -- 6Chassis

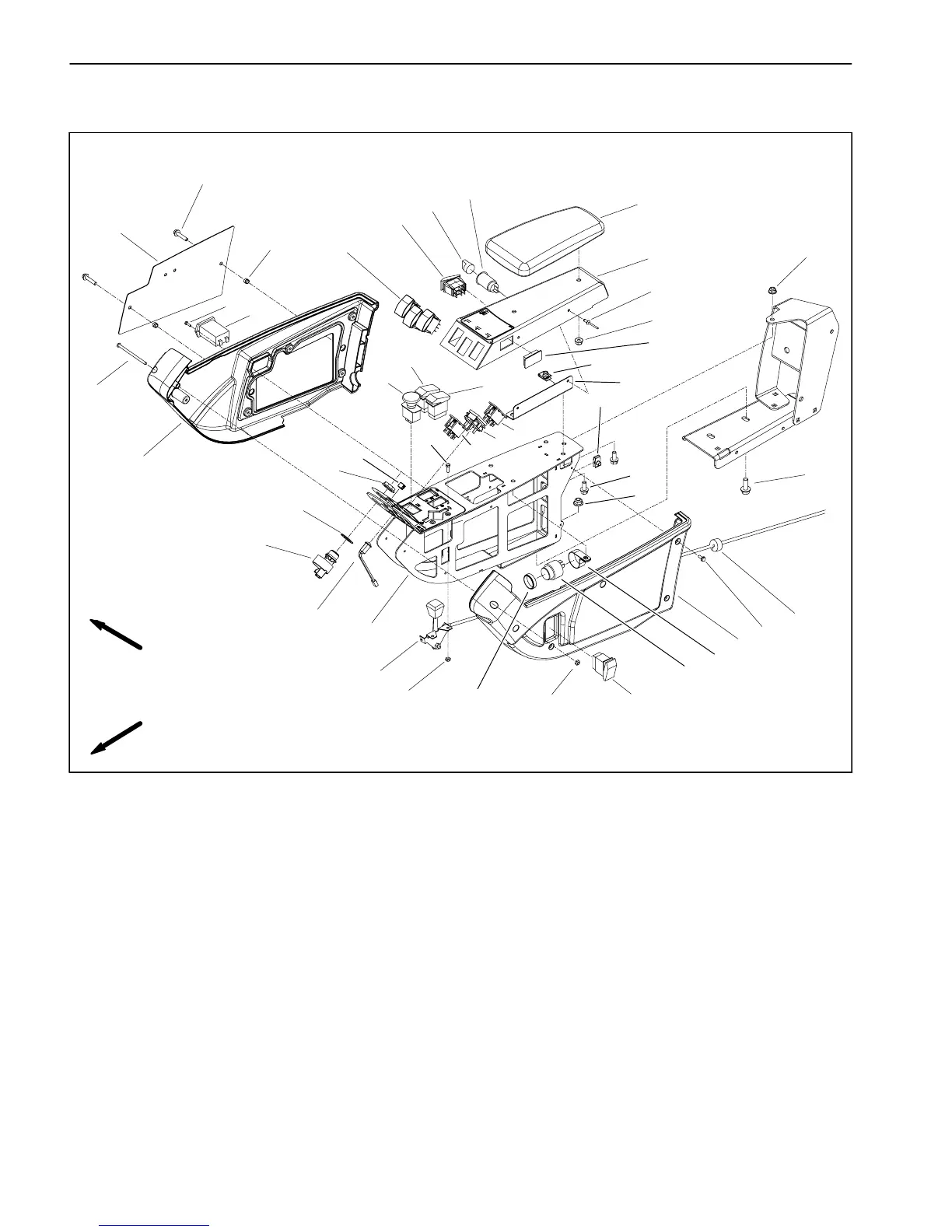

Console Arm
1. Flange nut (3 used)
2. Flange head screw (2 used)
3. Foam seal
4. Washer head screw (10 used)
5. LH cover
6. Hi--low speed switch
7. Lock nut (3 used)
8. Throttle control
9. Control arm
10. Diagnostic light
11. Ignition switch
12. Button plug
13. Screw (2 used)
14. Warning lamp (oil pressure/charge)
15. Temperature gauge
16. Warning lamp (glow plug/temp)
17. PTO switch
18. Hole plug
19. Flow divider switch (if equipped)
20. Nut
21. Flange nut (2 used)
22. Flange head screw (5 used)
23. Clip (2 used)
24. Bracket
25. U--nut (4 used)
26. Lock washer
27. Rivet (2 used)
28. Switch panel
29. Arm rest
30. Power point
31. Cap
32. Engine cooling fan control switch
33. Nut
34. Lift/lower switch (3 used)
35. Hour meter
36. RH cover
37. Cap screw (2 used)
38. Spacer (2 used)
39. Cover plate
40. Flange head screw (2 used)
41. R--clamp
42. Audio alarm
43. Screw
44. Headlight switch (if equipped)
Figure 5
FRONT
RIGHT
2
3
44
8
9
10
11
13
1
5
7
12
14
15
16
17
19
20
4
21
22
23
24
25
26
27
28
29
30
7
6
1
31
32
33
34
35
36
37
38
39
40
41
42
43
18
