Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 98

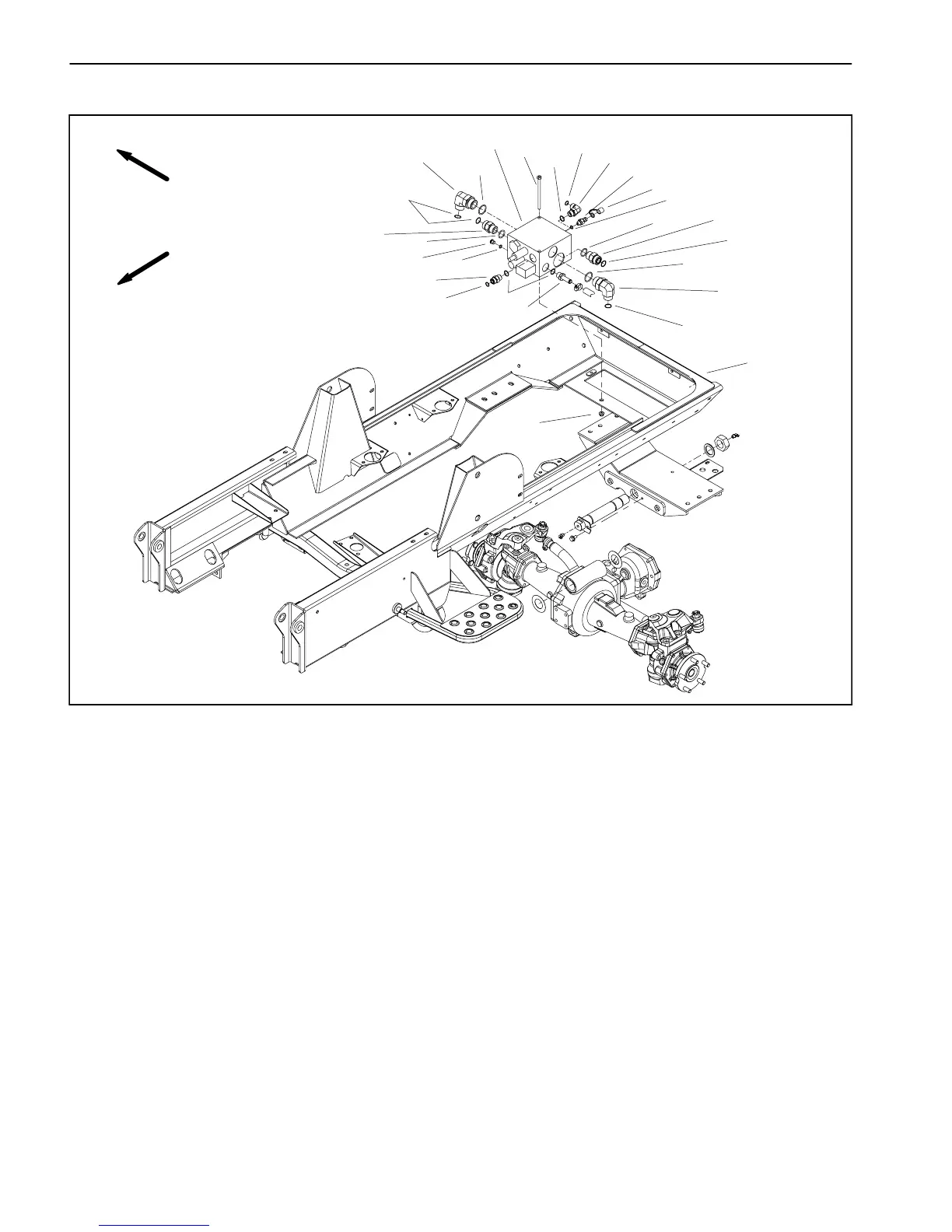

4WD Manifold
1. Frame assembly
2. 4WD manifold
3. 90
o
hydraulic fitting
4. O--ring
5. O--ring
6. Quick fitting
7. O--ring
8. Fitting cap
9. Hydraulic fitting
10. O--ring
11. O--ring
12. 90
o
hydraulic fitting
13. O--ring
14. O--ring
15. Hydraulic fitting
16. Adapter
17. Plug (SAE #4)
18. Flange nut (2 used)
19. Cap screw (2 used)
Figure 68
FRONT
RIGHT
1
4
2
6
3
7
5
8
10
13
11
9
12
14
19
18
15
17
16
9
10
11
12
13
11
7
4
