Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 126

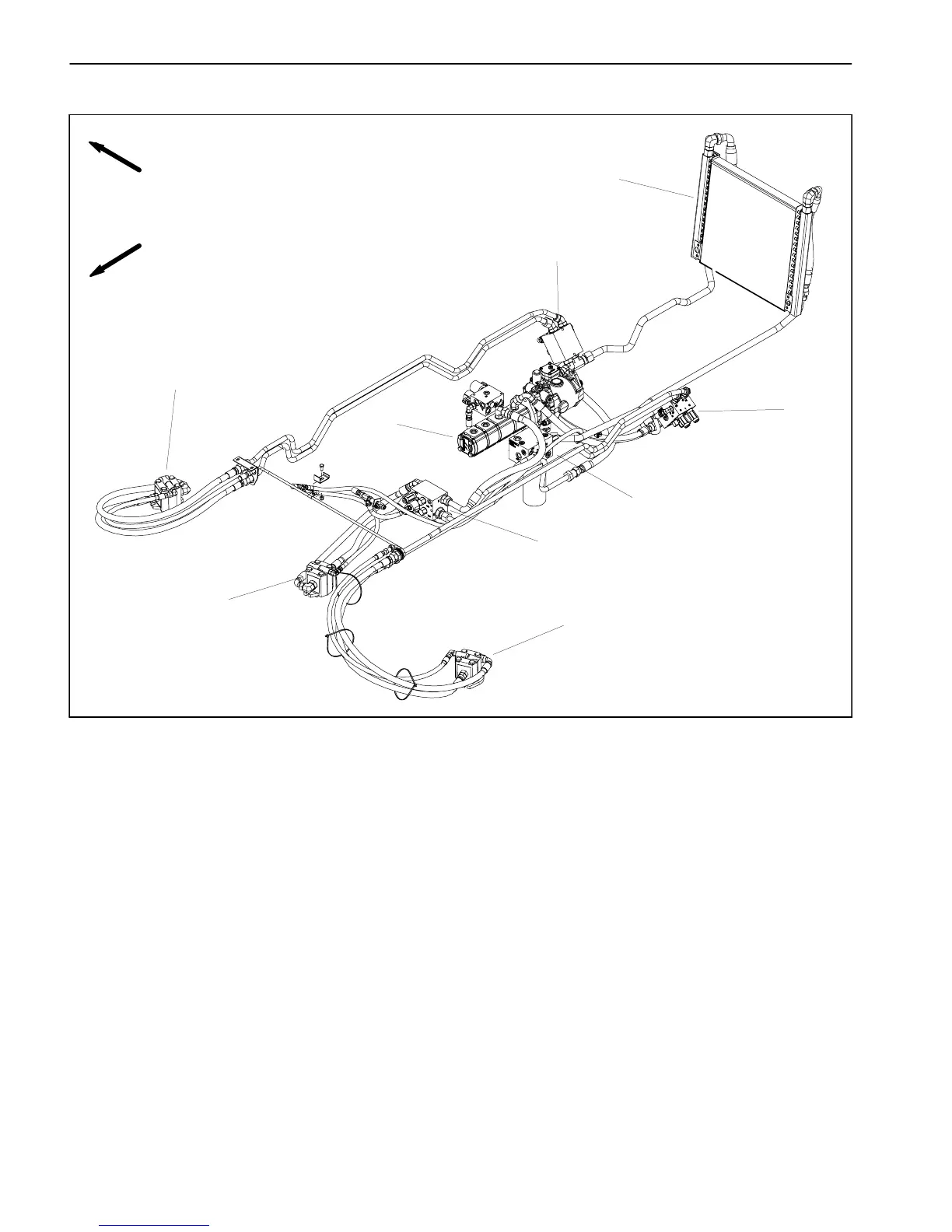

Mow Circuit
1. Gear pump
2. RH wing deck motor
3. LH wing deck motor
4. RH PTO manifold
5. Front cutting deck motor
6. LH PTO manifold
7. Front PTO manifold
8. Filter manifold
9. Oil cooler
Figure 88
FRONT
RIGHT
2
1
5
4
3
7
6
8
9
Figure88illustratesthecomponentsthatareusedinthe
Groundsmaster4100--Dand4110--Dmowcircuits.Pro-
cedures for removal, installation and disassembly/as-
sembly of these components are provided on the
following pages of this section.
