Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 132
PTO Manifolds
1. Front PTO manifold
2. O--ring
3. Hydraulic adapter
4. O--ring
5. Straight hydraulic fitting
6. O--ring
7. 90
o
hydraulic fitting
8. O--ring
9. Hydraulic tee fitting
10. O--ring
11. O--ring
12. Dust cap
13. Quick fitting
14. Flange nut
15. LH PTO manifold
16. 45
o
hydraulic fitting
17. Cap screw (2 used per manifold)
18. O--ring
19. Hydraulic tee fitting
20. RH PTO manifold
21. R--clamp
22. 90
o
hydraulic fitting
23. Hydraulic fitting
24. Hydraulic adapter
25. 90
o
hydraulic fitting
26. Hydraulic tee fitting
27. O--ring
28. O--ring
29. 90
o
hydraulic fitting
30. O--ring

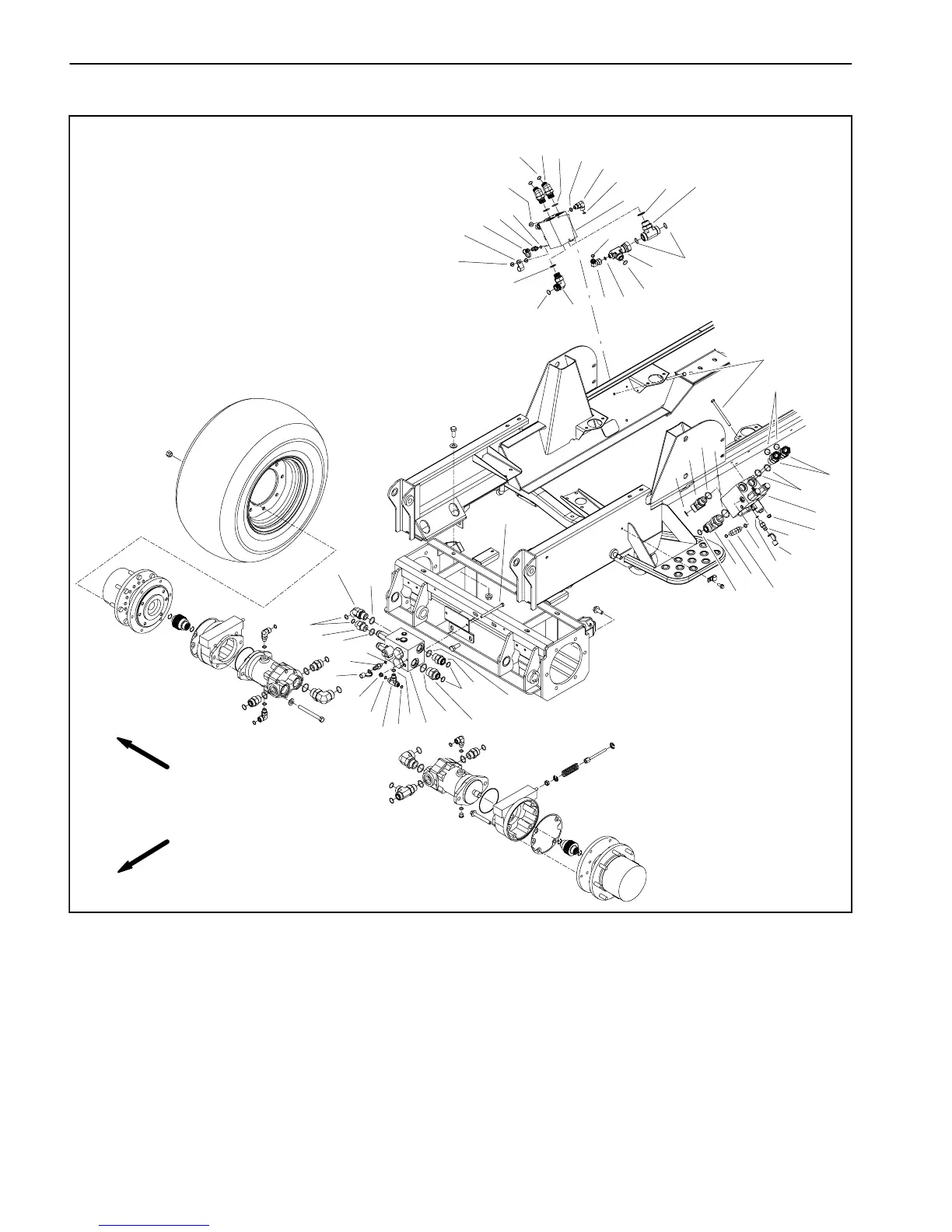

Figure 96
21
12
13
16
17
14
15
18
22
20
19
8
7
6
5
4
3
2
1
11
10
25
FRONT
RIGHT
2
6
6
4
2
8
10
9
8
8
10
25
11
11
12
12
13
13
14
17
6
6
6
16
4
4
4
6
16
14
4
23
24
18
14
26
27
28
29
30
