Groundsmaster 4100--D/4110--DPage 3 -- 4Kubota Diesel Engine
Service and Repairs
Air Filter System

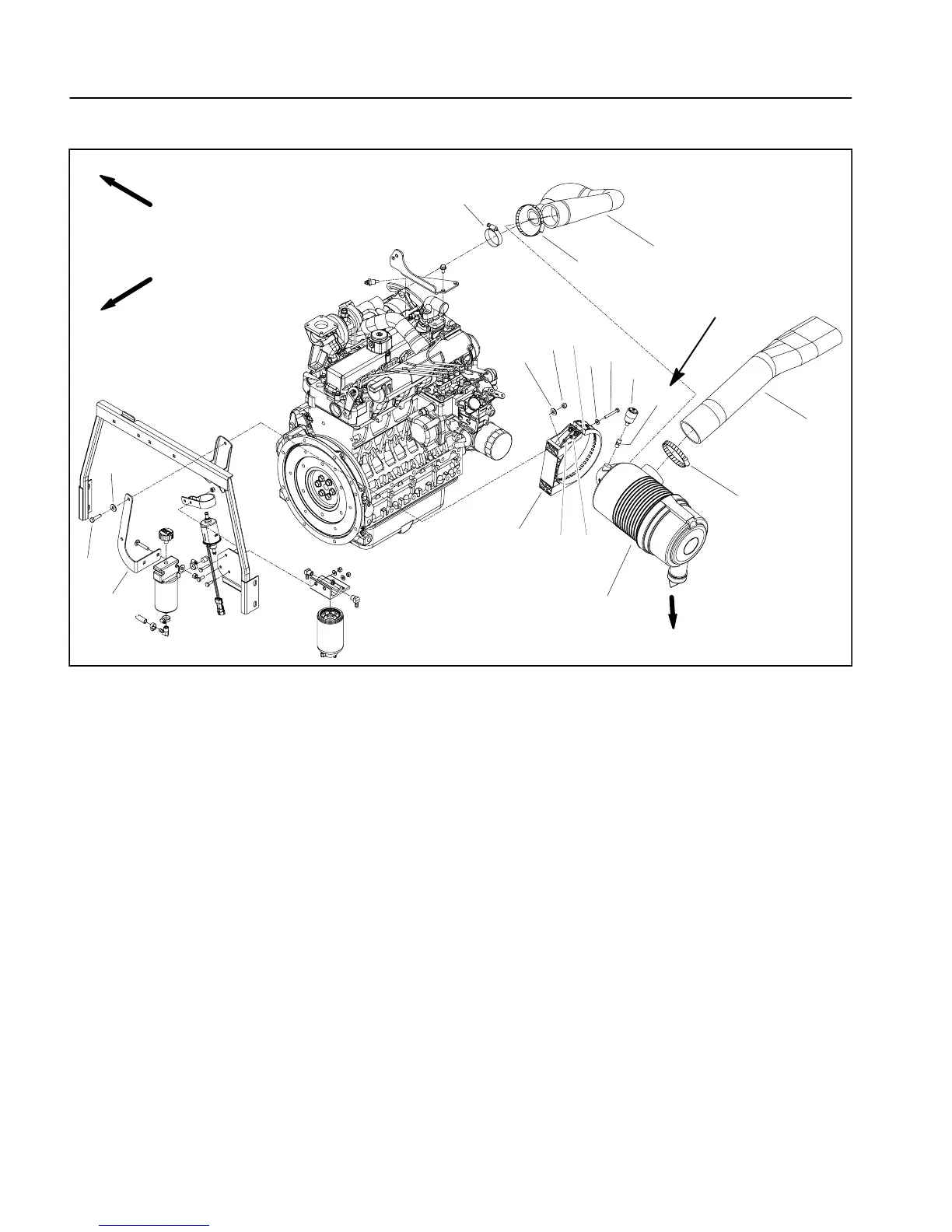

Figure 1
1. Air cleaner hose
2. Hose clamp
3. Air cleaner assembly
4. Service indicator
5. Air cleaner strap
6. Lock nut (2 used)
7. Hose clamp
8. Air cleaner hose
9. Hose clamp
10. Cap screw (2 used)
11. Flat washer (4 used)
12. Spring (2 used)
13. Flat washer (2 used)
14. Cap screw (2 used)
15. Adapter
16. Lock nut (2 used)
17. Flat washer (2 used)
18. Overflow bracket
VACUATOR
DIRECTION
FRONT
RIGHT
8
1
3
4
5
6
9
7
10
2
11
11
12
13
14
15
16
17
18
12 to 15 in--lb
(1.4 to 1.6 N--m)
