Groundsmaster 4100--D/4110--DPage 6 -- 18Axles, Planetaries and Brakes
8. Installsteeringcylindertoaxleassembly(seeSteer-
ingCylinderInstallation in the Serviceand Repairssec-
tion of Chapter 4 -- Hydraulic System).
9. Install hydraulic motor to axle assembly (see Rear
Axle Motor Installation in the Service and Repairs sec-
tion of Chapter 4 -- Hydraulic System).
10.Install wheels to rear axle.
WARNING
Failure to maintain proper wheel lug nut torque
couldresultinfailureorlossofwheelandmayre-
sult in personal injury.
11.Lower machine to ground. Torque wheel lug nuts
from 85 to 100 ft--lb (115 to 135 N--m).
12.Fill axle and input gearbox with SAE 85W--140
weightgearlube.Lubricantcapacityisapproximately80
fl. oz. (2.37 liters) for the axle and 16 fl. oz. (0.47 liters)
for the gearbox.
13.Check rear wheel toe-- in and adjust if necessary.

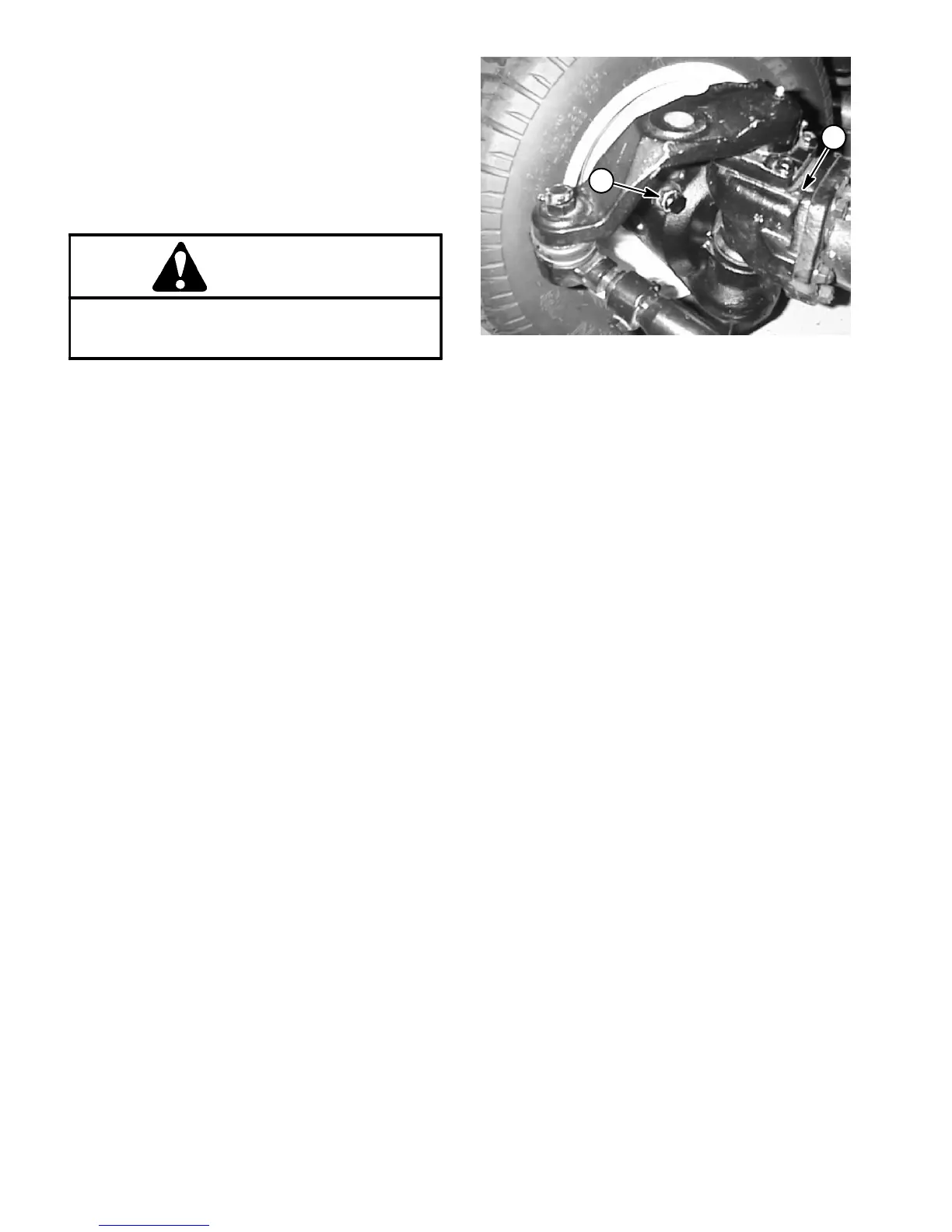

14.Check steering stop bolt adjustment. When the
steering cylinder is fully extended (right turn), a gap of
1/16 in. (1.6 mm) should exist between bevel gearcase
casting and stop bolt onleftaxle case. Figure 15 shows
stop bolt location.
1. Steering stop bolt 2. Bevel gear case (LH)
Figure 15
1
2
