Rev. A Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 14

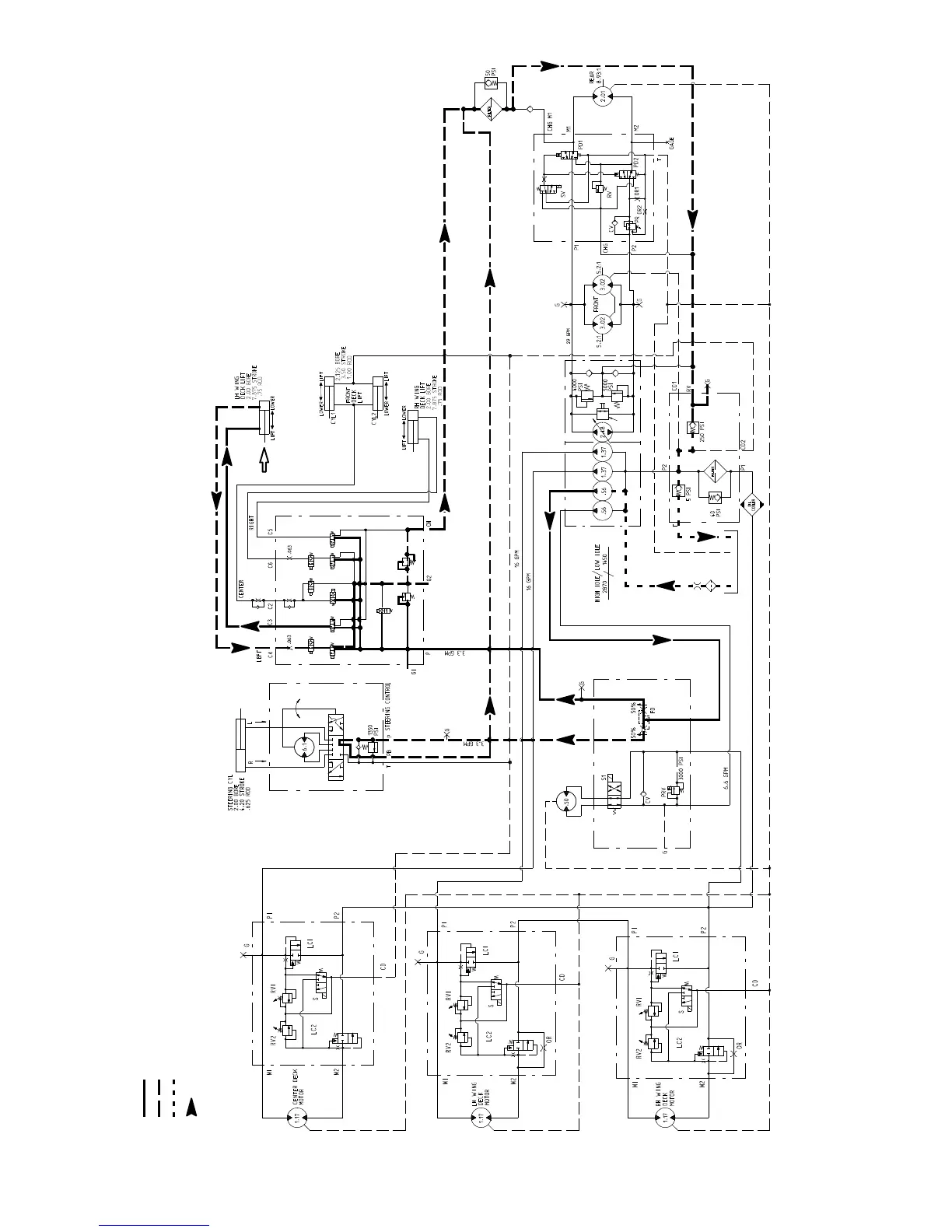

Lower Cutting Deck (LH Wing Deck Shown)
Working Pressure
Low Pressure (Charge)
Return or Suction
Flow
Groundsmaster 4100 --D/4110--D
FRONT PTO
MANIFOLD
FAN DRIVE
MANIFOLD
RH PTO
MANIFOLD
4WD
MANIFOLD
LH PTO
MANIFOLD
FILTER
MANIFOLD
S1
S2 S3
S4
S5 S7
S6
S8
RV1
RV2
S9
LIFT/LOWER
MANIFOLD
BYPASS
VALVE
M1 M2 ST L
TP1 P2
SOLENIDS S1, S3 AND S4
ENERGIZED
RETRACTING
2500 PSI
.070
.035
