Groundsmaster 4100--D/4110--D Hydraulic SystemPage 4 -- 41
Procedure for Traction Circuit Relief Pressure Test
1. Make sure hydraulic oil is at normal operating tem-
perature by operating the machine under load for
approximately ten (10) minutes. Make sure the hydrau-
lic tank is full.
CAUTION
Movemachinetoanopenarea,awayfrompeople
and obstructions.
2. Drive machine to an open area, lower cutting deck,
turn the engine off and engage the parking brake.
CAUTION
Prevent personalinjury and/or damage to equip -
ment. Read all WARNINGS, CAUTIONS and Pre-
cautions for Hydraulic Testing at the beginning
of this section.
3. Connect a 10,000 PSI (700 bar) pressure gauge to
traction circuit test port for function to be checked: for-
ward (Fig. 27) or reverse (Fig. 28).
4. After installing pressuregauge, start engine and run
at idle speed. Check for hydraulic leakage at pressure
gauge location and correct before proceeding with test.
5. Move throttle soengineisrunningathighidlespeed
(2870 RPM). Make sure that Hi/Low speed switch is in
the Hi speed (2WD) position.
6. Sitonseat,applybrakesfullyandslowlydepressthe
traction pedal in the appropriate direction. While
pushing traction pedal, look at pressure reading on
gauge:
GAUGE READING TO BE:
Forward: 3750 to 4250 PSI (259 to 293 bar)
Reverse: 4750 to 5250 PSI (328 to 362 bar)
7. Release traction pedalandstop engine. Record test
results.
8. If traction relief pressure is too low, inspect traction
pump relief valves (Fig. 29). Clean or replace valves as
necessary. These cartridge type valves are factory set
andarenotadjustable.Ifreliefvalvesarein goodcondi-
tion, traction pump or wheel motors should be sus-
pected of wear and inefficiency.
NOTE: Seal leakage across pilot directional valves
PD1 and PD2 in 4WD manifold can cause low forward
tractionpressurewithreversepressuremeetingspecifi-
cations.
9. When testing is completed, disconnect pressure
gauge from test port.

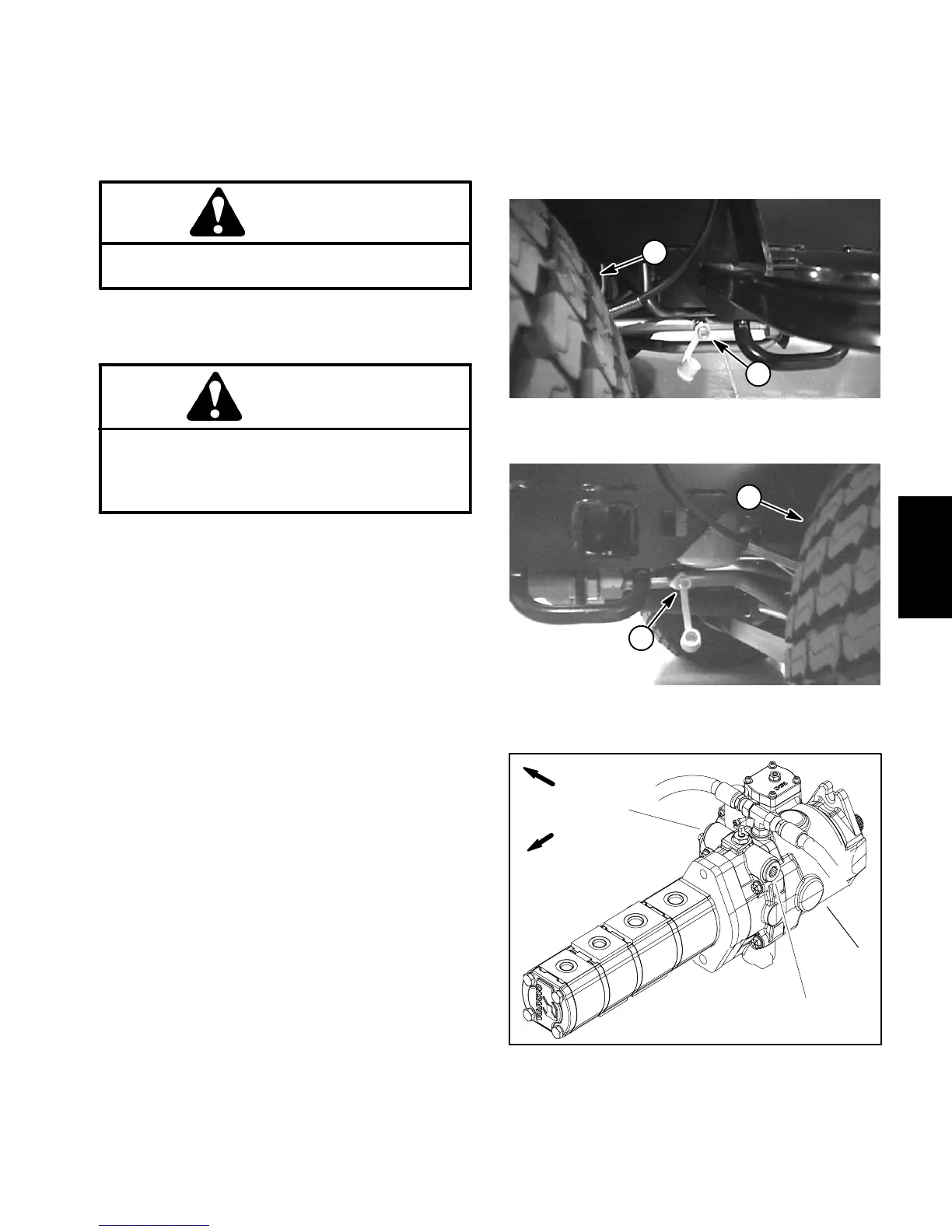

1. Forward traction port 2. LH front tire
Figure 27
1
2
1. Reverse traction port 2. RH front tire
Figure 28
1
2
1. Forward relief valve
2. Reverse relief valve
3. Traction pump
Figure 29
FRONT
RIGHT
1
2
3
Hydraulic
System
To Next Page
