Adjustments and Checks using Test Chart No. TCC-1
Following items can be checked with the Test Chart No. TCC-1.
1. Points to be measured in the chart

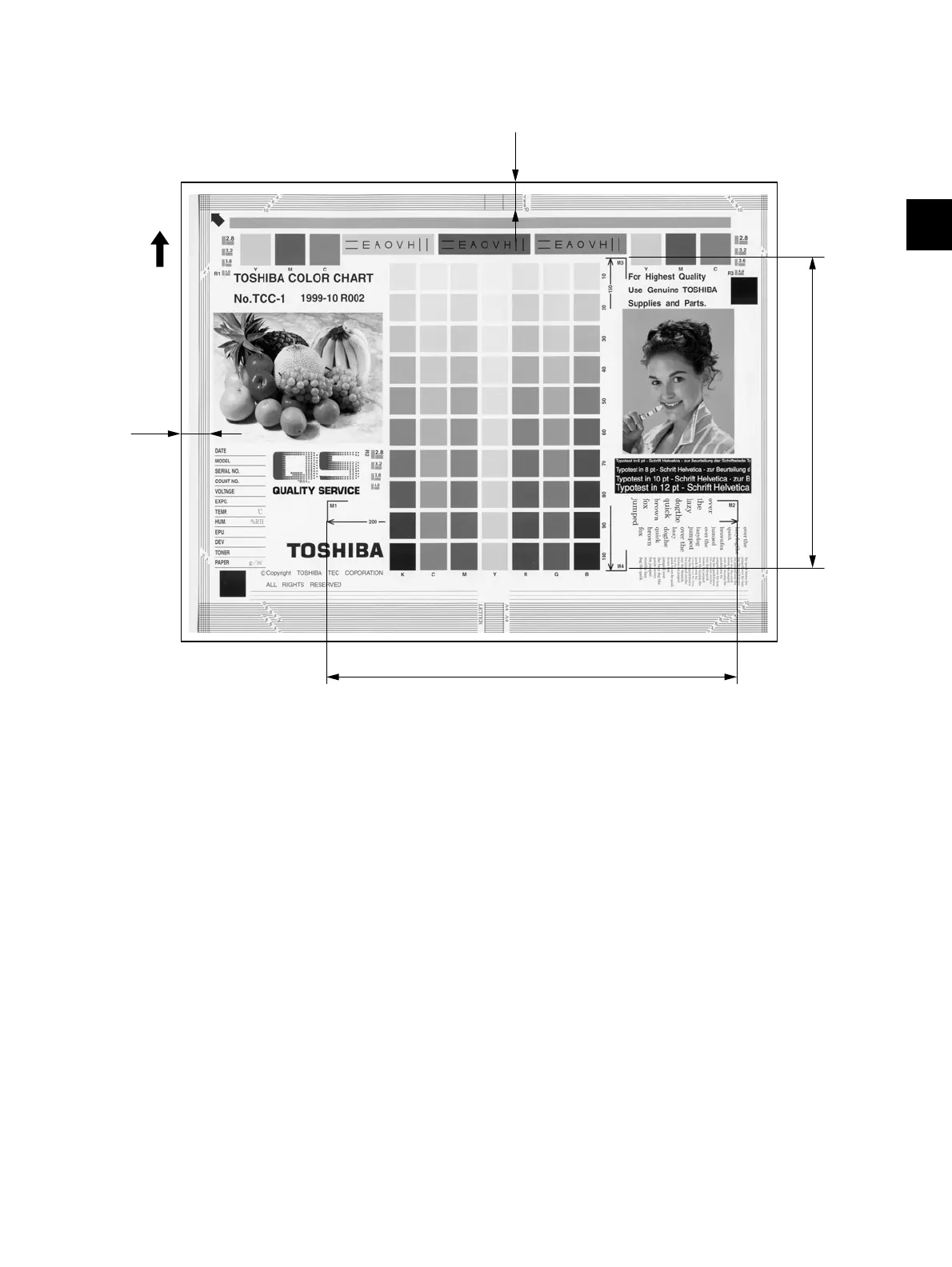

Fig. 3-20
<Adjustment order>
[0] [5] [Power ON] → (Chart TCC-1) → [FAX] → [START] (A3/LD, 100%, Full color and Text/
Photo)
A: 05-405 → 200±0.5 mm (0.1 mm/step)
B: 05-306 → 5±0.5 mm (0.04 mm/step)
C: 05-340 → 150±0.5 mm (0.02 mm/step)
D: 05-305 → 10±0.5 mm (0.08 mm/step)
C
D
B
A
Feeding direction
