REPLACEMENT OF PC BOARDS/HDD

7 - 1

7. REPLACEMENT OF PC BOARDS/HDD

7.1 Removal and Installation of PC Boards/HDD

Note:

When the PC board/HDD is replaced, refer to the respective Notes and Cautions of

“Replacement of PC boards and HDD” in  P.7-15 "7.2 Precautions, Procedures and Settings

for Replacing PC Boards and HDD".

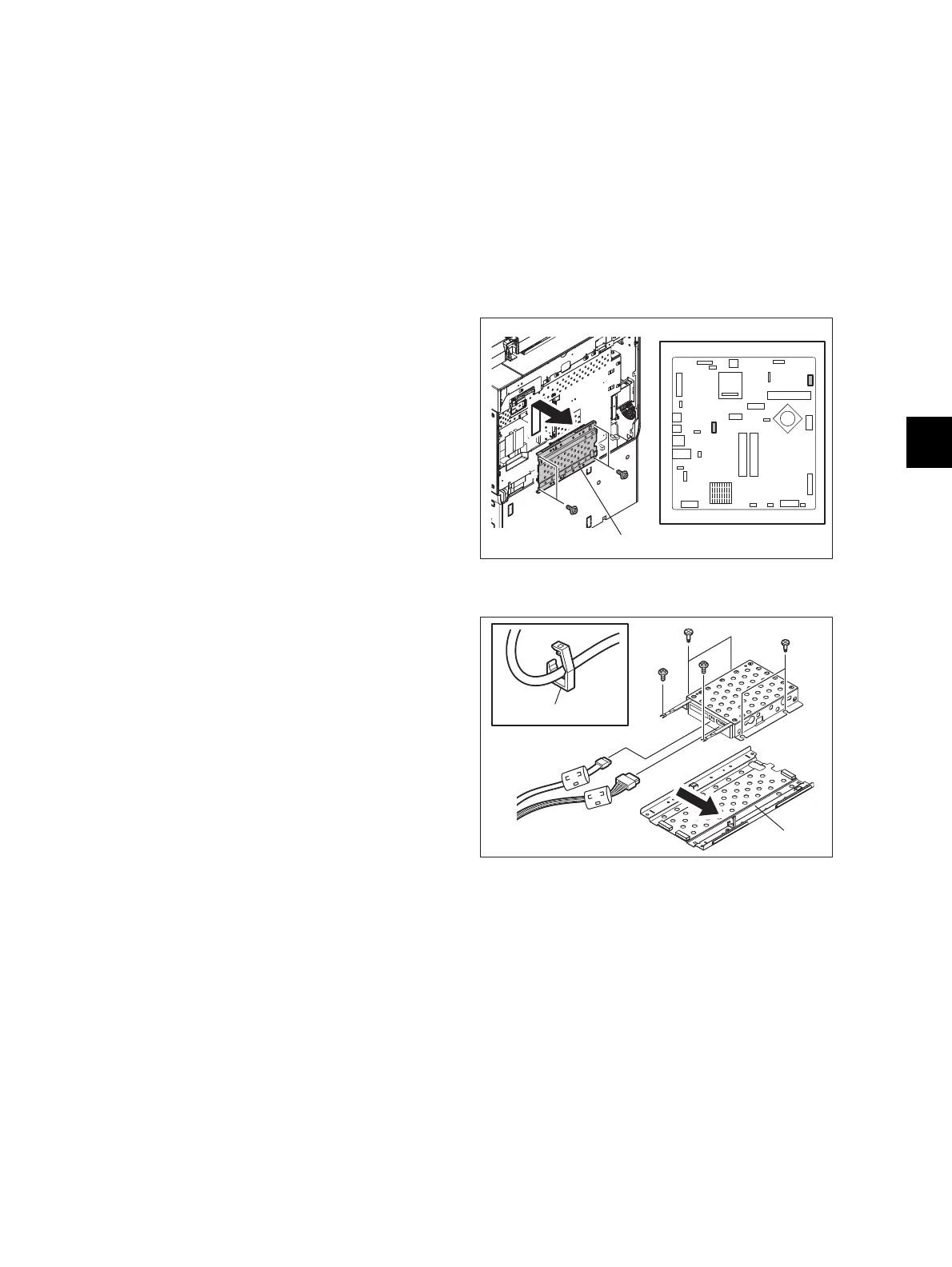

7.1.1 Hard disk (HDD)

(1) Take off the rear cover-1.

 Service Manual "3.5.18 Rear cover-1"

(2) Remove 4 screws.

(3) Disconnect 2 connectors and take off the

HDD case.

Fig. 7-1

(4) Remove 6 screws, release 1 clamp and take

off the bracket.

Fig. 7-2

HDD Case

Clamp

bracket
