e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 4

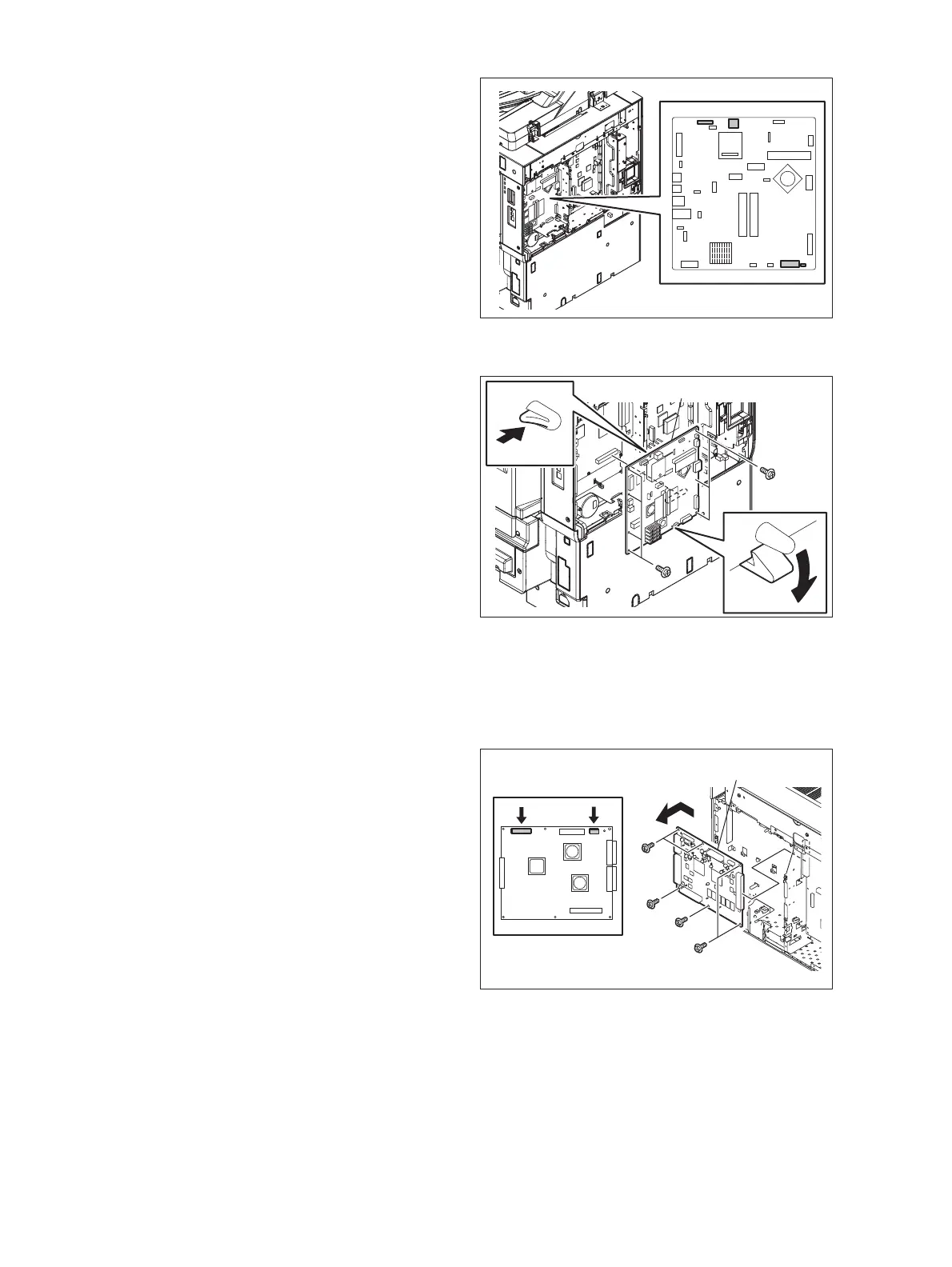

7.1.6 IMG board
(5) Disconnect 3 connectors and the USB
terminal.
Fig. 7-9
(6) Remove 7 screws, release 2 locking
supports and take off the SYS board.
Fig. 7-10
(1) Take off the SYS board.
 P.7-3 "7.1.5 SYS board"
(2) Disconnect 2 connectors.
(3) Remove 6 screws and slide the IMG board to
take it off.
Fig. 7-11
SYS board
IMG board
