REPLACEMENT OF PC BOARDS/HDD

7 - 8

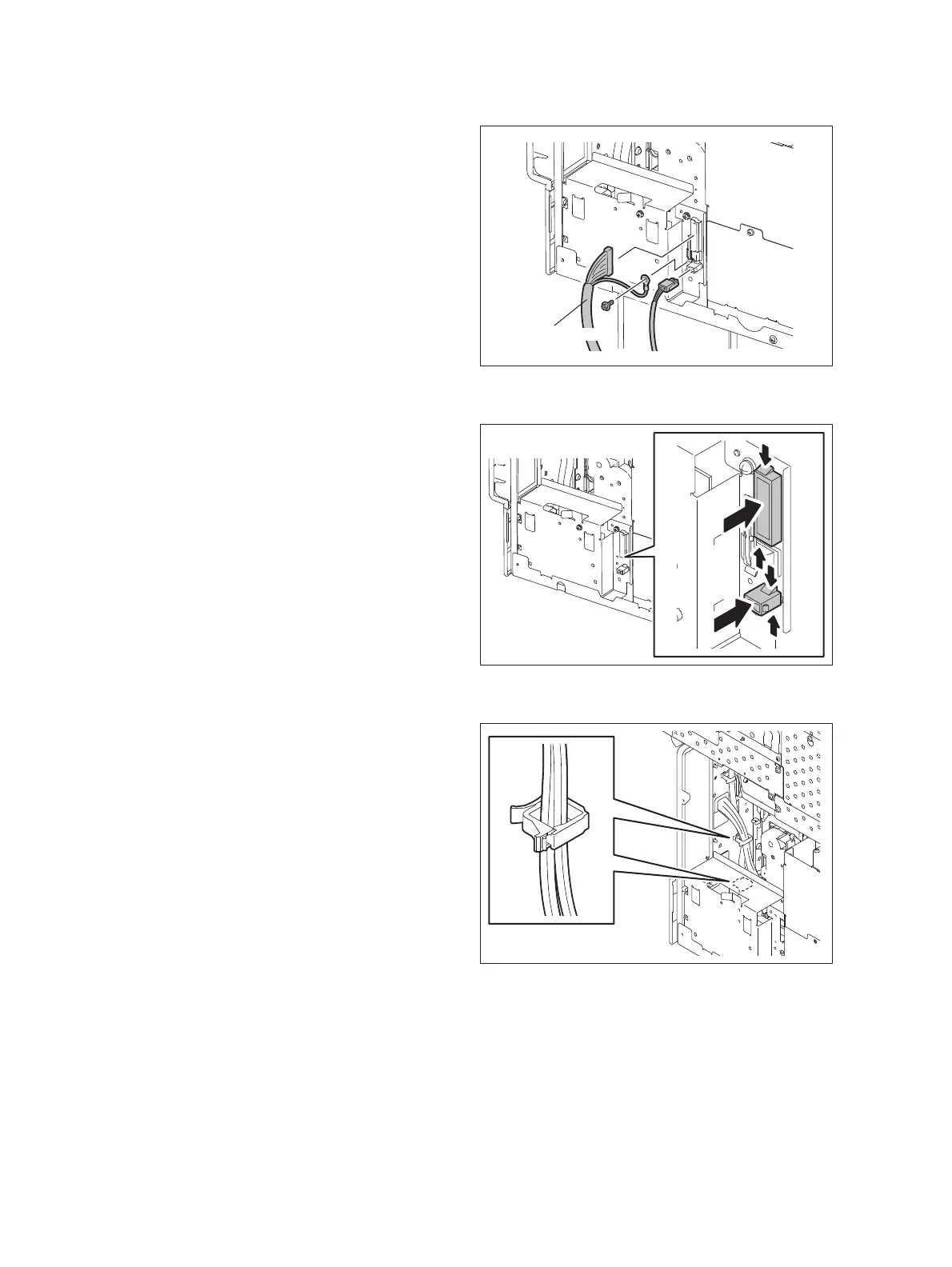

7.1.10 FIL board

(1) Take off the right lower cover.

 Service Manual "3.5.13 Right lower

cover"

(2) Take off the rear cover-3.

 Service Manual "3.5.20 Rear cover-3"

Note:

Release the optional connector (KD-1023/

1024) from the filter bracket if it is connected.

Fig. 7-18

(3) Disconnect 2 relay connector of the filter

bracket.

Fig. 7-19

(4) Release 2 clamps.

Fig. 7-20

Optional Connector
