3
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
ADJUSTMENT
3 - 15

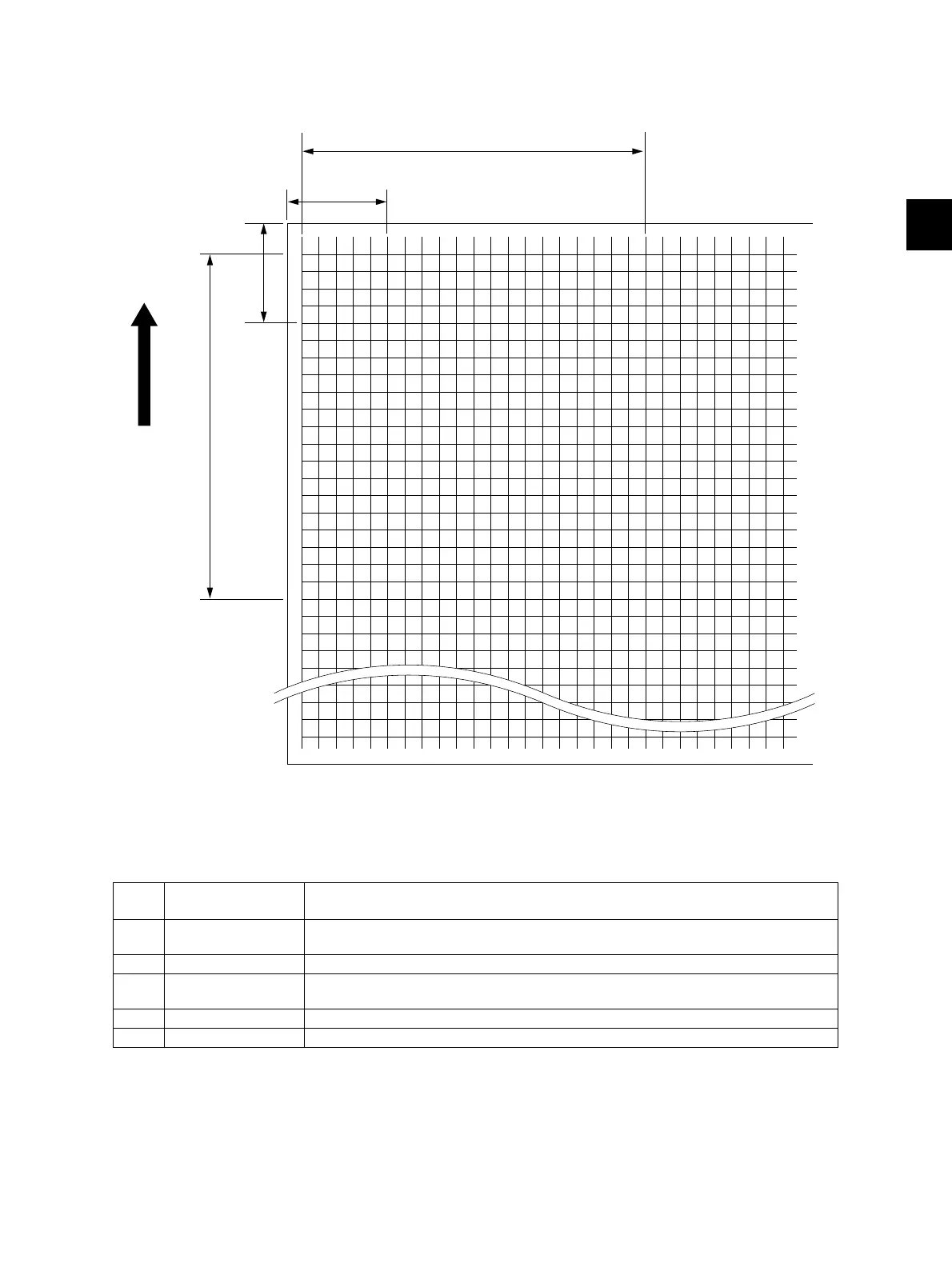

3.1.8 Image dimensional adjustment at the printing section
The printer related adjustment is performed by using the printed out grid pattern.
Fig. 3-13
Adjustment
Tolerance
Detail of adjustment
A 200 ± 0.5mm Refer to “[A] Reproduction ratio of primary scanning direction (Fine adjustment of
polygonal motor rotation speed (Printer))”
B 52 ± 0.5mm Refer to “[B] Primary scanning data laser writing start position (Printer)”
C 200 ± 0.5mm Refer to “[C] Reproduction ratio of secondary scanning direction (Fine adjustment
of transfer belt motor rotation speed (Printer))”
D 52 ± 0.5mm Refer to “[D] Secondary scanning data laser writing start position”
E 52 ± 0.5mm Refer to “[E] Primary scanning data laser writing start position at duplexing”
A
21
6
1
B, E
D
C
6
2
22
Feeding direction
