REPLACEMENT OF PC BOARDS/HDD
7 - 3

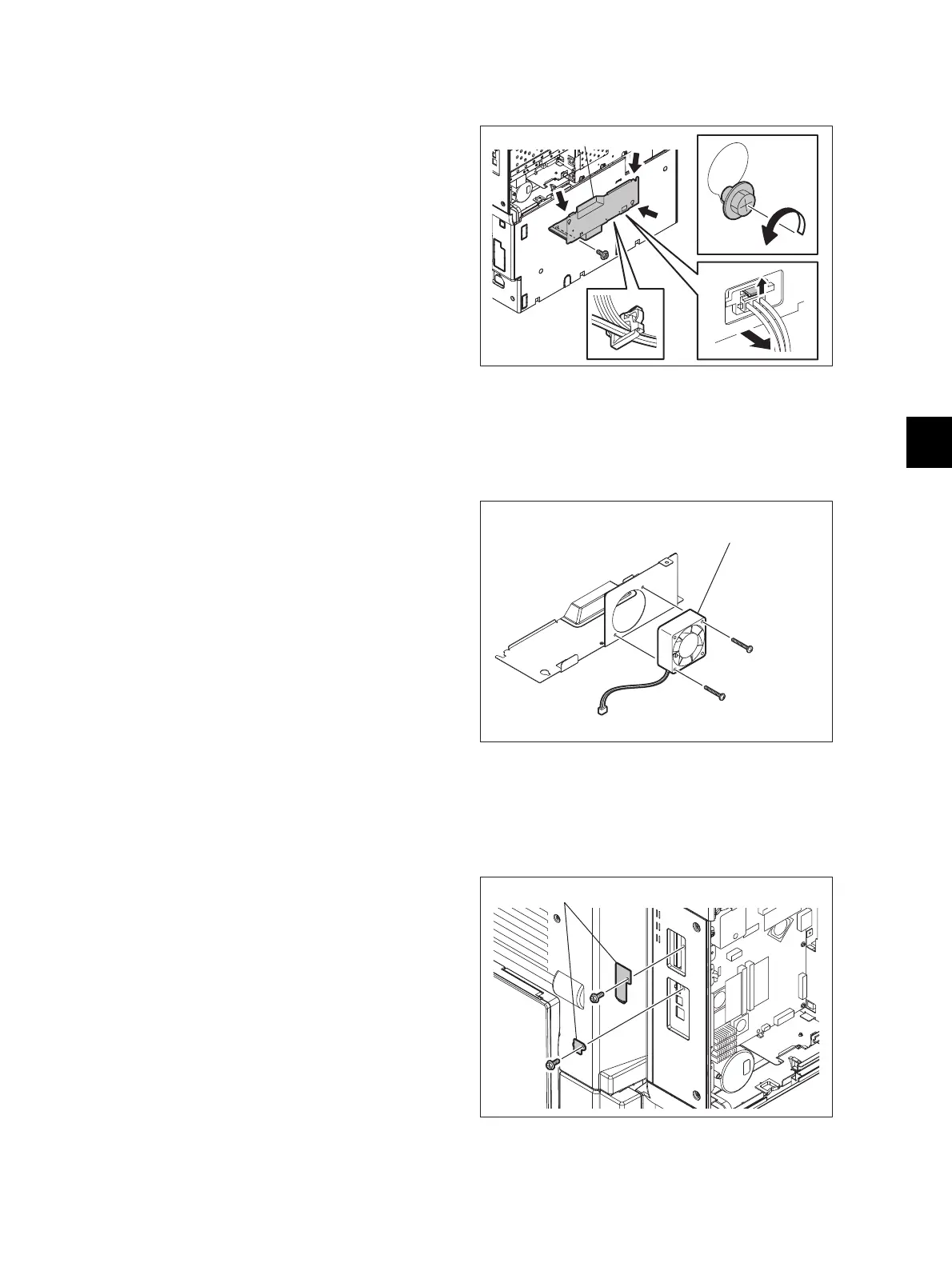

7.1.3 FAX cover
7.1.4 SYS/HDD cooling fan
7.1.5 SYS board
(1) Take off the rear cover-1.
 Service Manual "3.5.18 Rear cover-1"
(2) Release 1 clamp and disconnect 1
connector.
(3) Remove 1 screw and loosen 3 screws.
(4) Slide the FAX cover to take it off.
Fig. 7-6
(1) Take off the FAX cover.
 P.7-3 "7.1.3 FAX cover"
(2) Remove 2 screws and take off the SYS/HDD
cooling fan.
Fig. 7-7
(1) Take off the board cover.
 P.7-2 "7.1.2 Board cover"
(2) Take off the FAX cover.
 P.7-3 "7.1.3 FAX cover"
(3) Take off the hard disk.
 P.7-1 "7.1.1 Hard disk (HDD)"
(4) Remove 2 screws and take off 2 earth plates.
Fig. 7-8
FAX cover
SYS/HDD cooling fan
Earth plate
