7
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
REPLACEMENT OF PC BOARDS/HDD
7 - 5

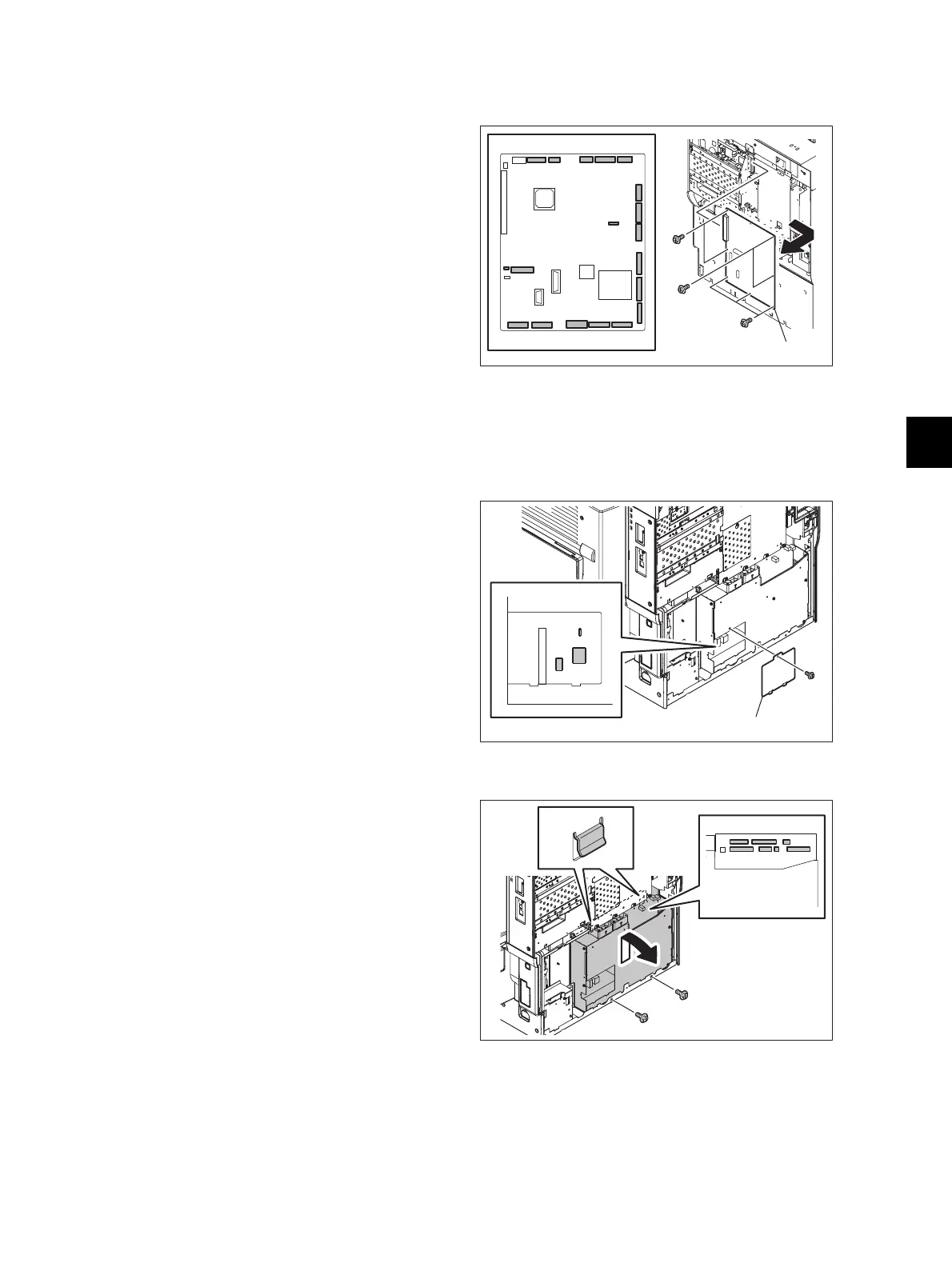

7.1.7 LGC board
7.1.8 Switching regulator
(1) Take off the board cover.
 P.7-2 "7.1.2 Board cover"
(2) Disconnect 19 connectors.
(3) Remove 8 screws and slide the LGC board
to take it off.
Fig. 7-12
(1) Take off the rear cover-3.
 Service Manual "3.5.20 Rear cover-3"
(2) Remove 1 screw and take off the connector
cover.
(3) Disconnect 3 connectors.
Fig. 7-13
(4) Disconnect 7 connectors.
(5) Remove 2 screws.
(6) Slightly lift up the switching regulator and
release the hook.
Fig. 7-14
To Next Page
