Toshiba e-STUDIO2020C User Manual

7
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
REPLACEMENT OF PC BOARDS/HDD
7 - 7

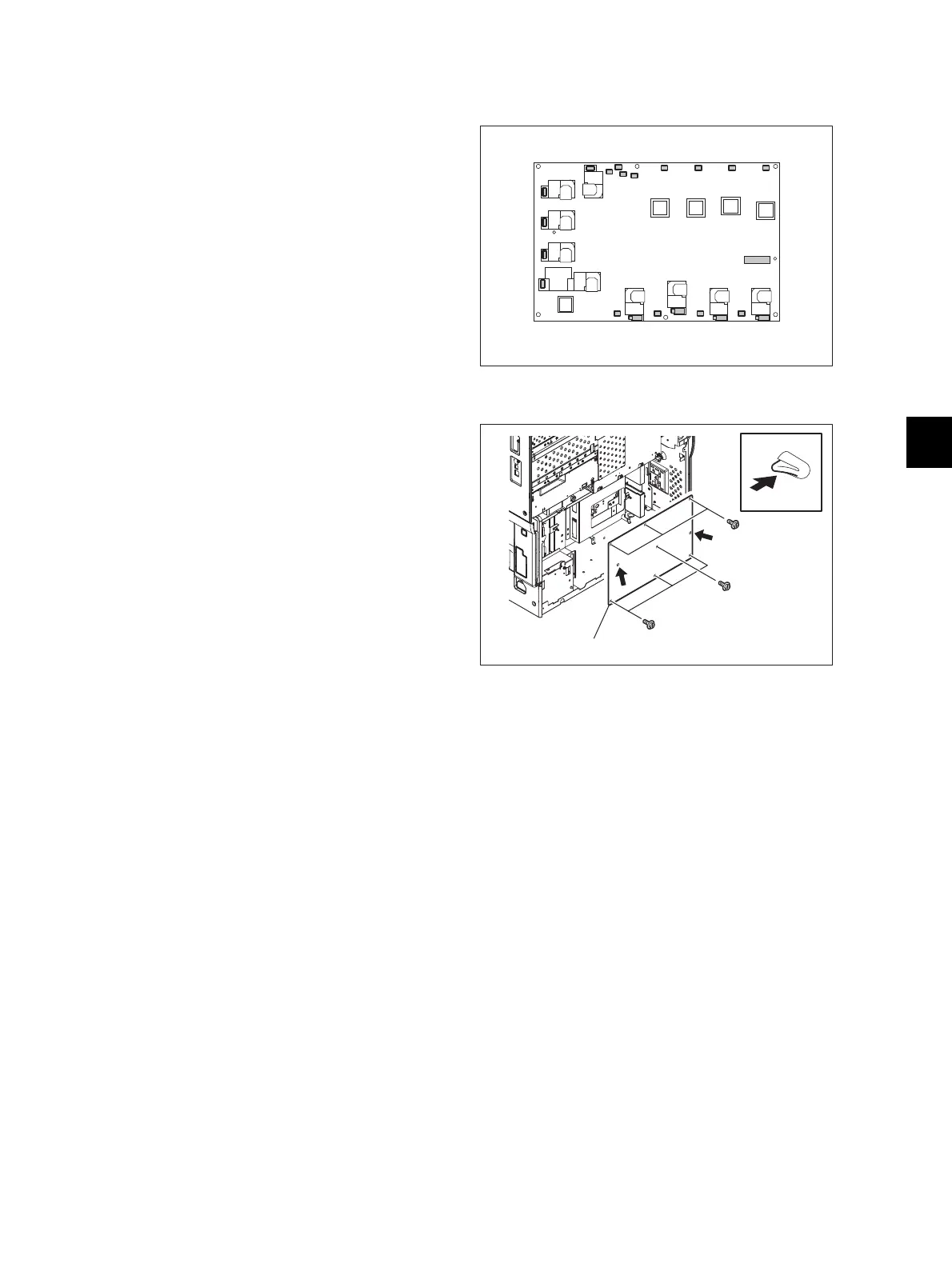

7.1.9 High-voltage transformer (HVT)
(1) Take off the switching regulator.
 P.7-5 "7.1.8 Switching regulator"
(2) Disconnect 22 connectors.
Fig. 7-16
(3) Remove 7 screws.
(4) Release 2 locking supports and take off the
high-voltage transformer.
Fig. 7-17
High-voltage transformer
