5
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
PREVENTIVE MAINTENANCE (PM)
5 - 37

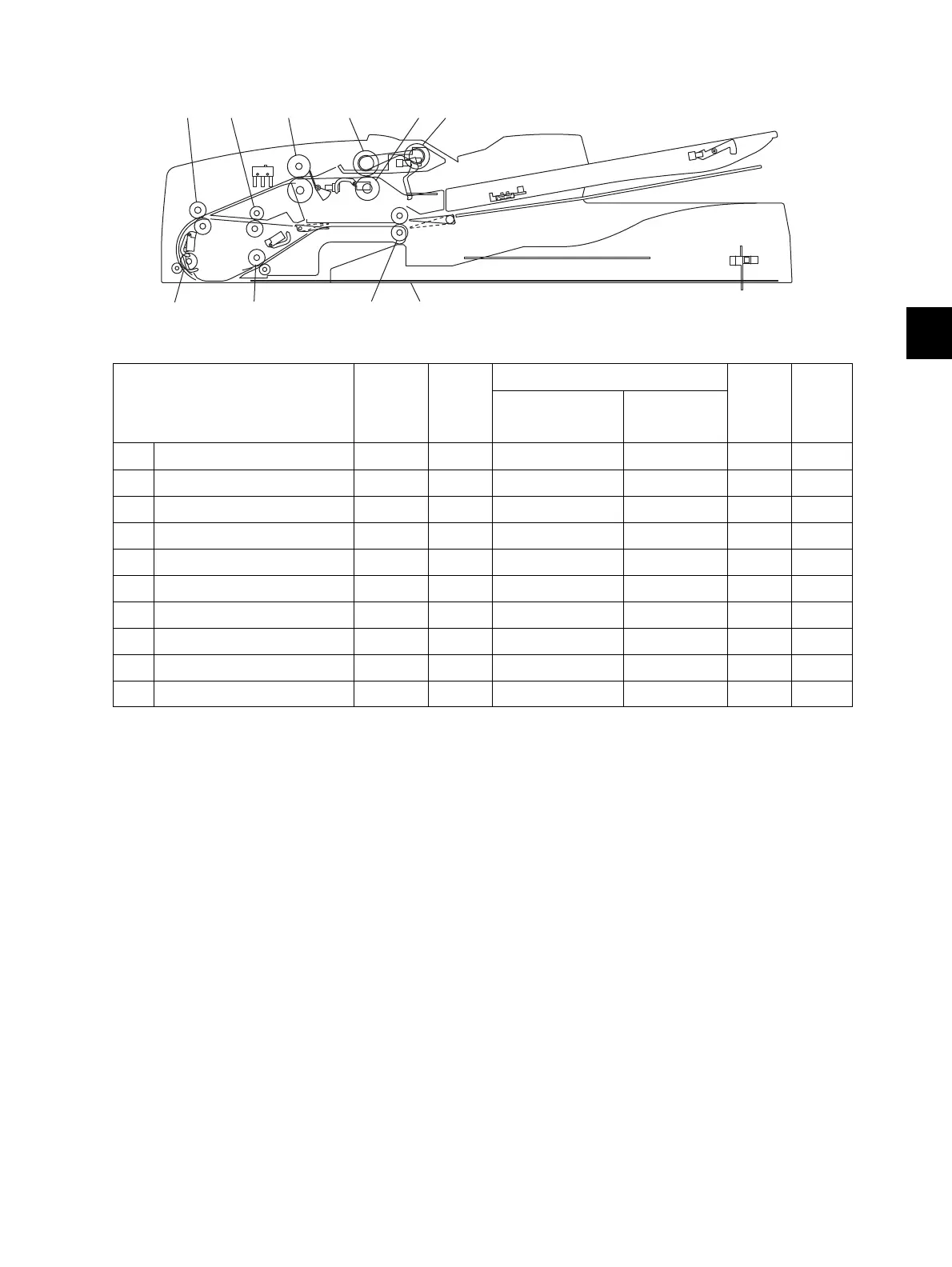

5.6.15 RADF (MR-3018)
Fig. 5-32
Items to check Cleaning
Lubric
ation/
Coatin
g
Replacement
Operati
on
check
Parts
list
<P-I>
(x 1,000 sheets)
(x 1,000 drive
counts)
O1 Pickup roller A 120 - 5-1
O2 Separation roller A 120 - 4-10
O3 Feed roller A 120 - 5-1
O4 Registration roller A 4-30
O5 Intermediate transfer roller A 3-13
O6 Front read roller A 3-14
O7 Rear read roller A 3-1
O8 Reverse registration roller A 3-10
O9 Exit/reverse roller A 4-25
O10 Platen sheet B or A
O1O3
O7
O4 O2
O6
O5 O8
O9 O10
To Next Page
