Toshiba e-STUDIO2020C User Manual

7
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
REPLACEMENT OF PC BOARDS/HDD
7 - 13
7.1.13 SRAM board <for SYS board>
(1) Take off the board cover.
 P.7-2 "7.1.2 Board cover"
(2) Disconnect 2 connectors and take off the
HDD.

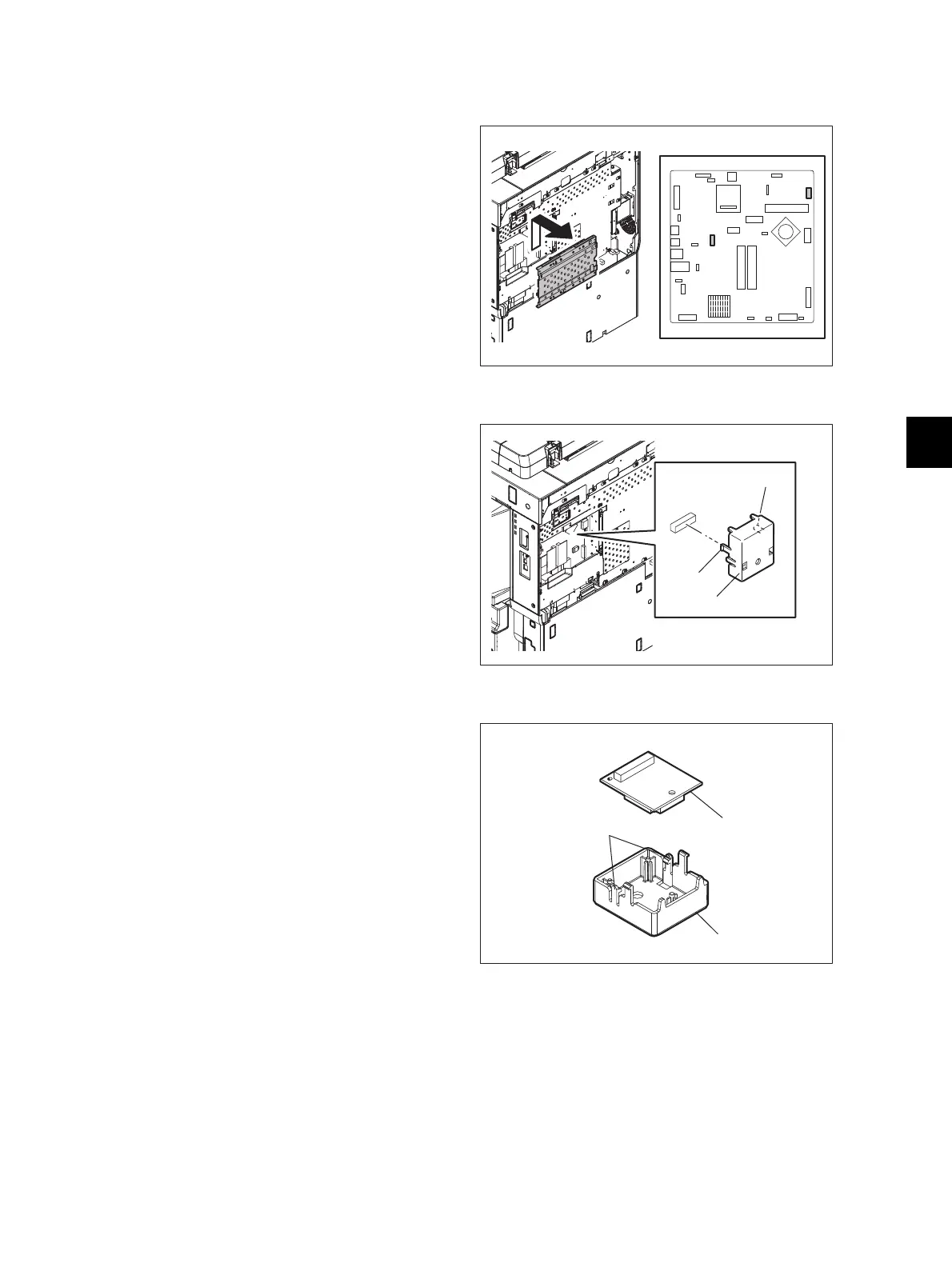

Fig. 7-32
(3) Release 2 latches and take off the SRAM
board for the SYS board with the case.
Fig. 7-33
(4) Release 2 latches and take off the SRAM
board for SYS board from the case.
Fig. 7-34
Latch
Case
Latch
Latch
SRAM board
(for SYS board)
Case
