REPLACEMENT OF PC BOARDS/HDD
7 - 2

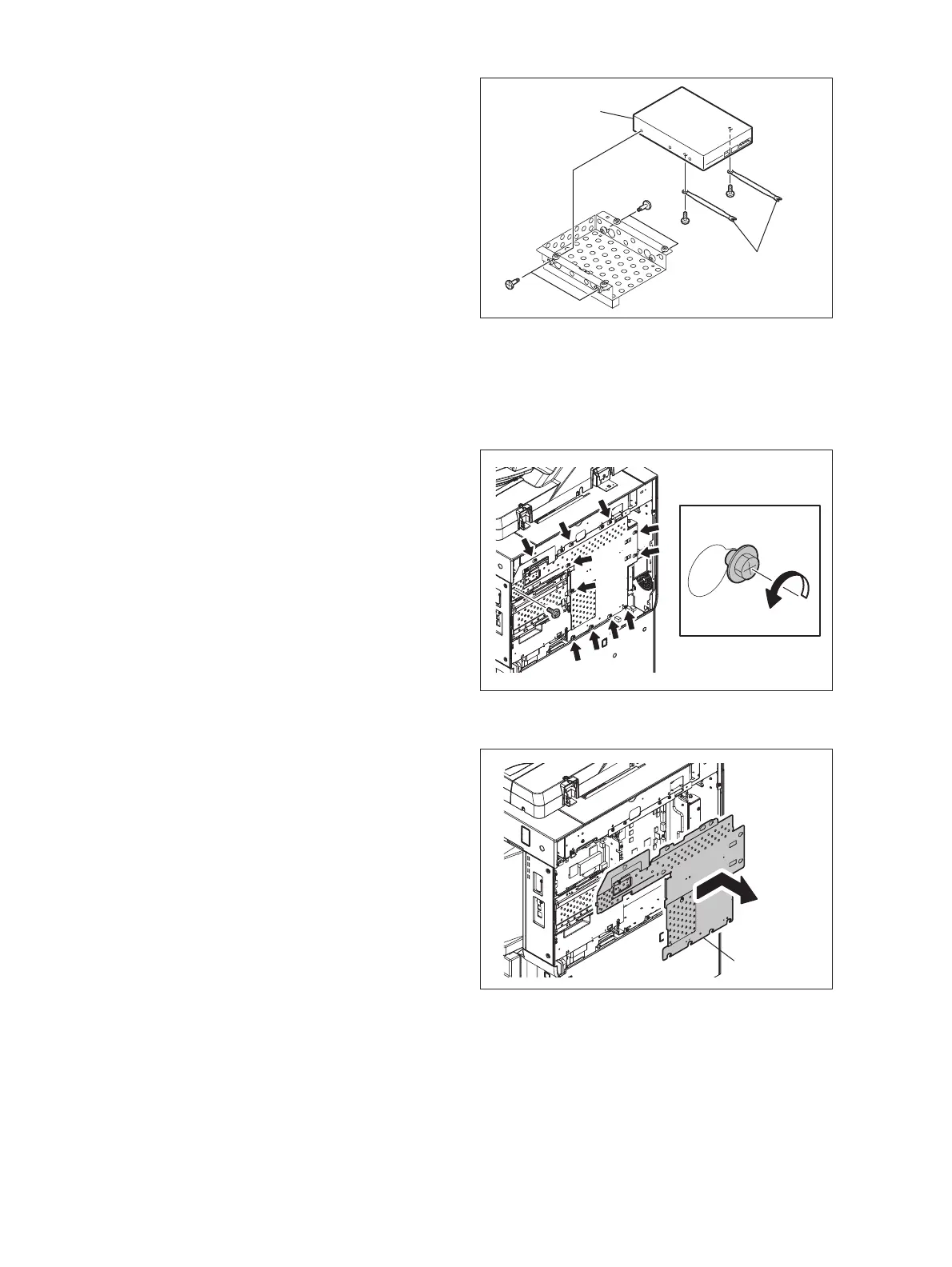

7.1.2 Board cover
(5) Remove 4 screws and take off the hard disk.
(6) Remove 1 screw each and the 2 ground
wires.
Fig. 7-3
(1) Take off the rear cover-2.
 Service Manual "3-5-19 Rear cover-2"
(2) Remove 1 screw and loosen 11 screws.
Fig. 7-4
(3) Slide the board cover to take it off.
Fig. 7-5
Ground wire
Hard disk
Board cover
