e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 10

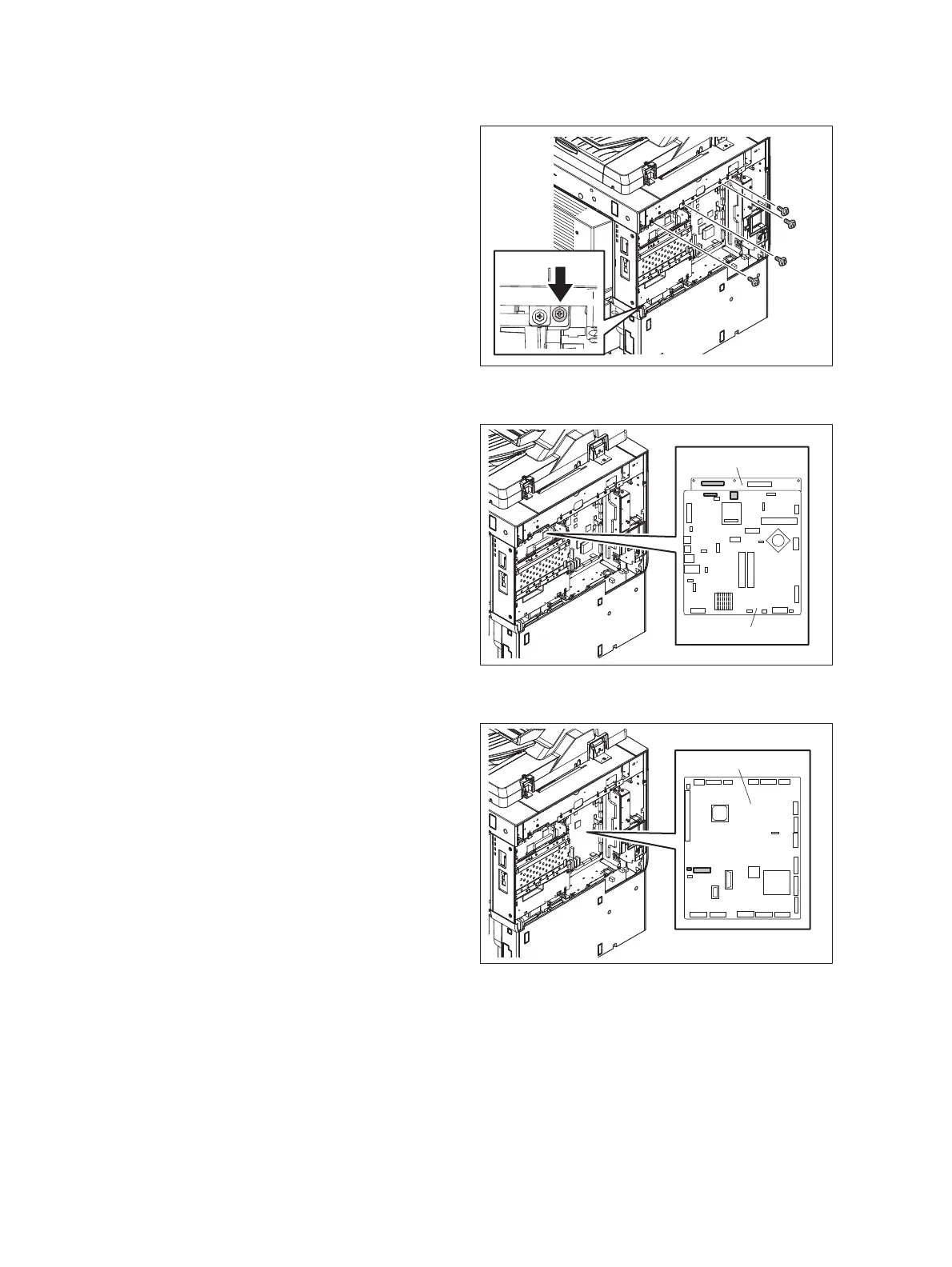

7.1.11 Board case
(1) Take off the board cover.
 P.7-2 "7.1.2 Board cover"
(2) Remove 5 screws.
Fig. 7-24
(3) Disconnect the USB terminal and 1
connector from the SYS board.
(4) Disconnect the 1 connector from the IMG
board.
Fig. 7-25
(5) Disconnect 2 connectors from the LGC
board.
Fig. 7-26
IMG Board
SYS Board
LGC board
