© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
REPLACEMENT OF PC BOARDS/HDD
7 - 11

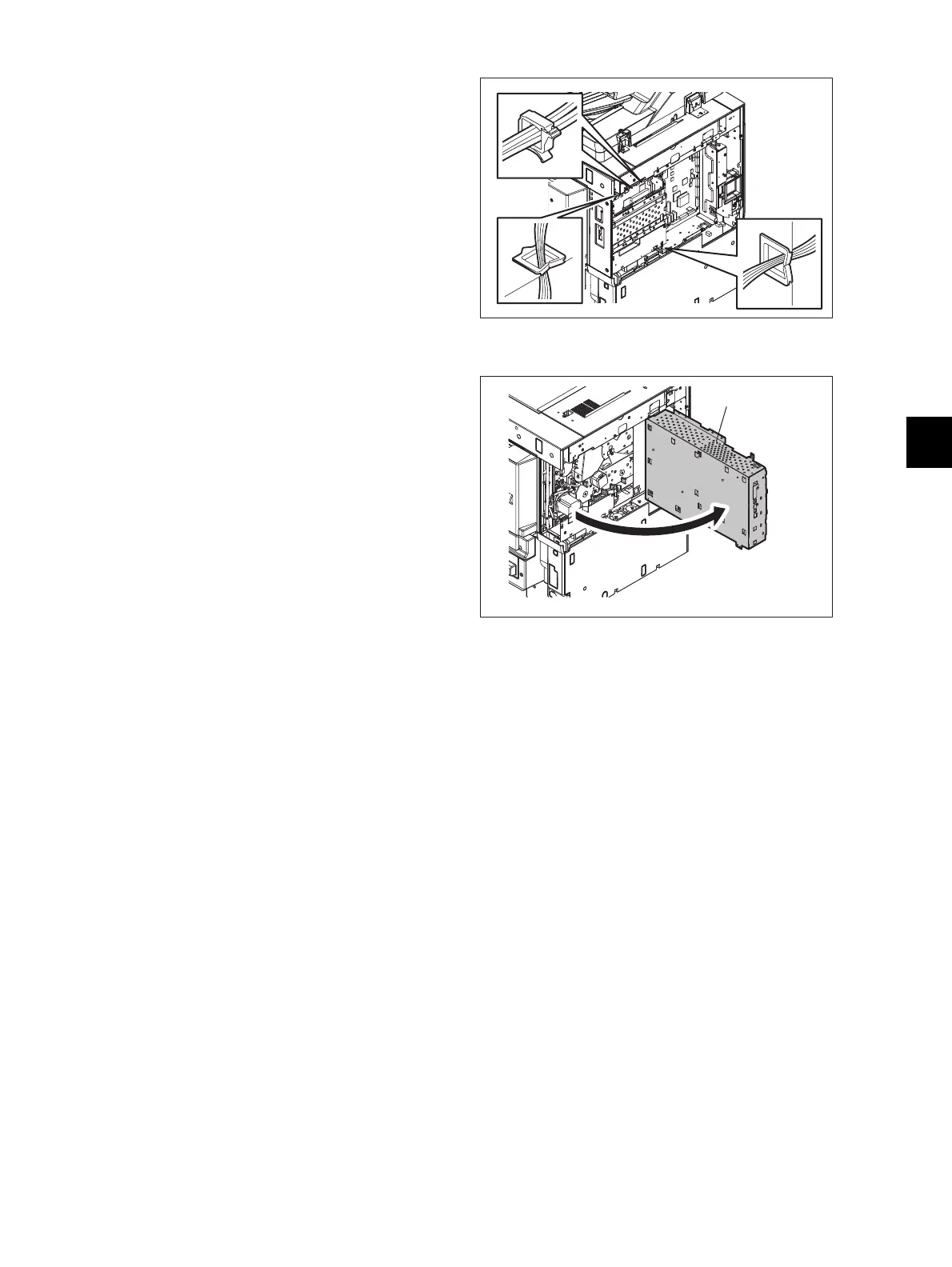

(6) Release harnesses from 4 clamps.
Fig. 7-27
(7) Open the board case.
Note:
Open the board case gently during
maintenance work or similar.
Fig. 7-28
Board case
