FIRMWARE UPDATING
8 - 37
8.3.3 Finisher firmware (MJ-1101)
Important:
• Be sure to shut down the equipment before installing and removing the download jig.
• Do not shut down the equipment during the update. The data could be damaged and not be
operated properly.
[A] Update Procedure
(1) Install the ROM to the download jig (K-PWA-DLM-320).
Make sure the direction is correct.
(2) Press the [ON/OFF] button on the control panel to shut down the equipment.
(3) Remove 1 screw and take off the board access cover.

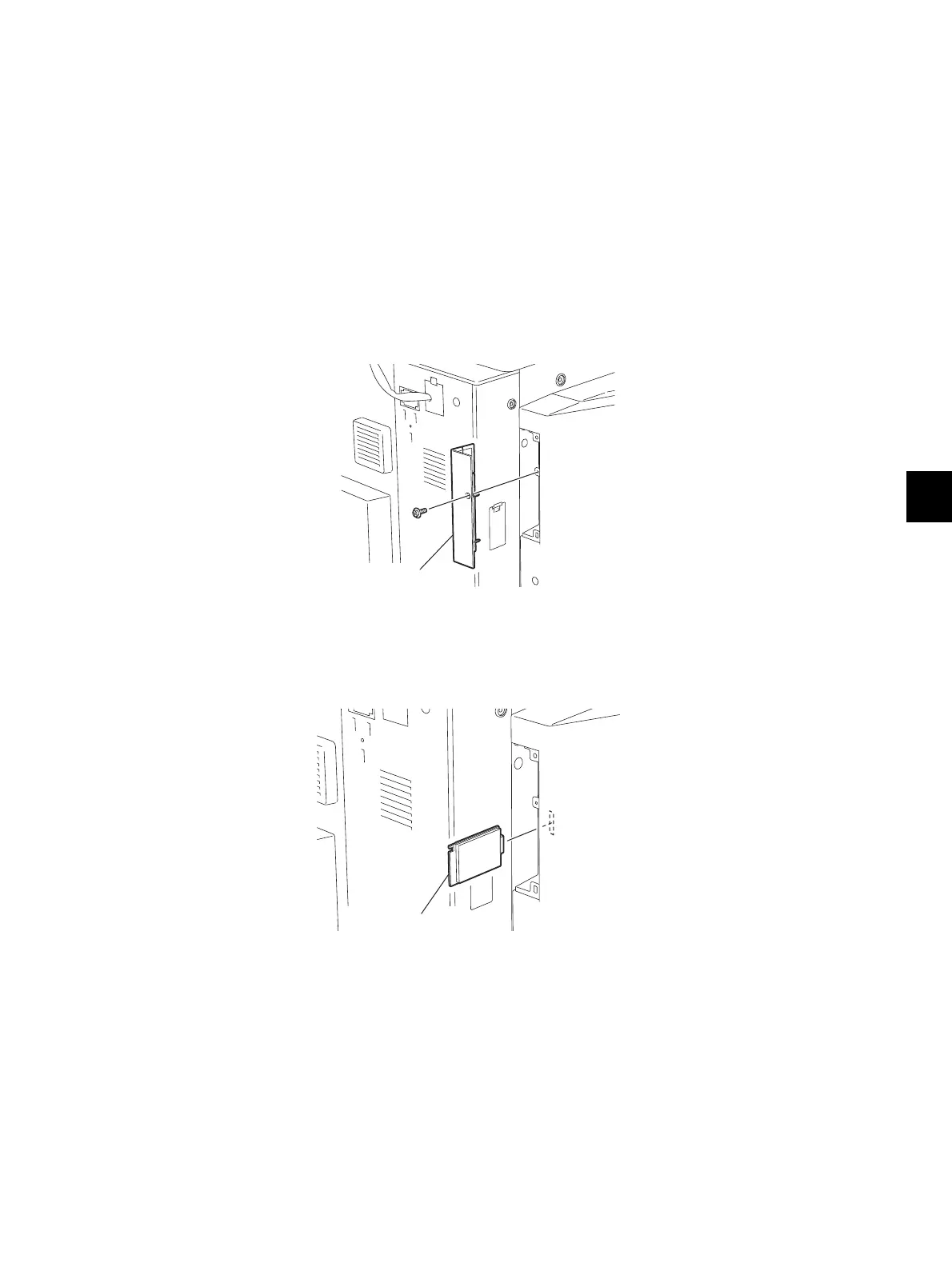

Fig. 8-29
(4) Connect the download jig with the jig connector (CN9) on the Finisher control board.
Fig. 8-30
(5) Press the [ON/OFF] button while simultaneously holding down the [0] and [8] buttons.
Updating starts and the LED on the download jig lights
Board access cover
Download jig
