Toshiba e-STUDIO2020C - Finisher Firmware;Saddle Stitcher Firmware (MJ-1030)

8
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
FIRMWARE UPDATING
8 - 47
8.3.6 Finisher firmware/Saddle stitcher firmware (MJ-1030)
Important:
• Be sure to shut down the equipment before installing and removing the download jig.
• Do not shut down the equipment during the update. The data could be damaged and not be
operated properly.
[A] Firmware update
(1) Install the ROM to the download jig (K-PWA-DLM-320).
Make sure the direction is correct.
(2) Press the [ON/OFF] button on the control panel to shut down the equipment.
(3) Take off the finisher rear cover.

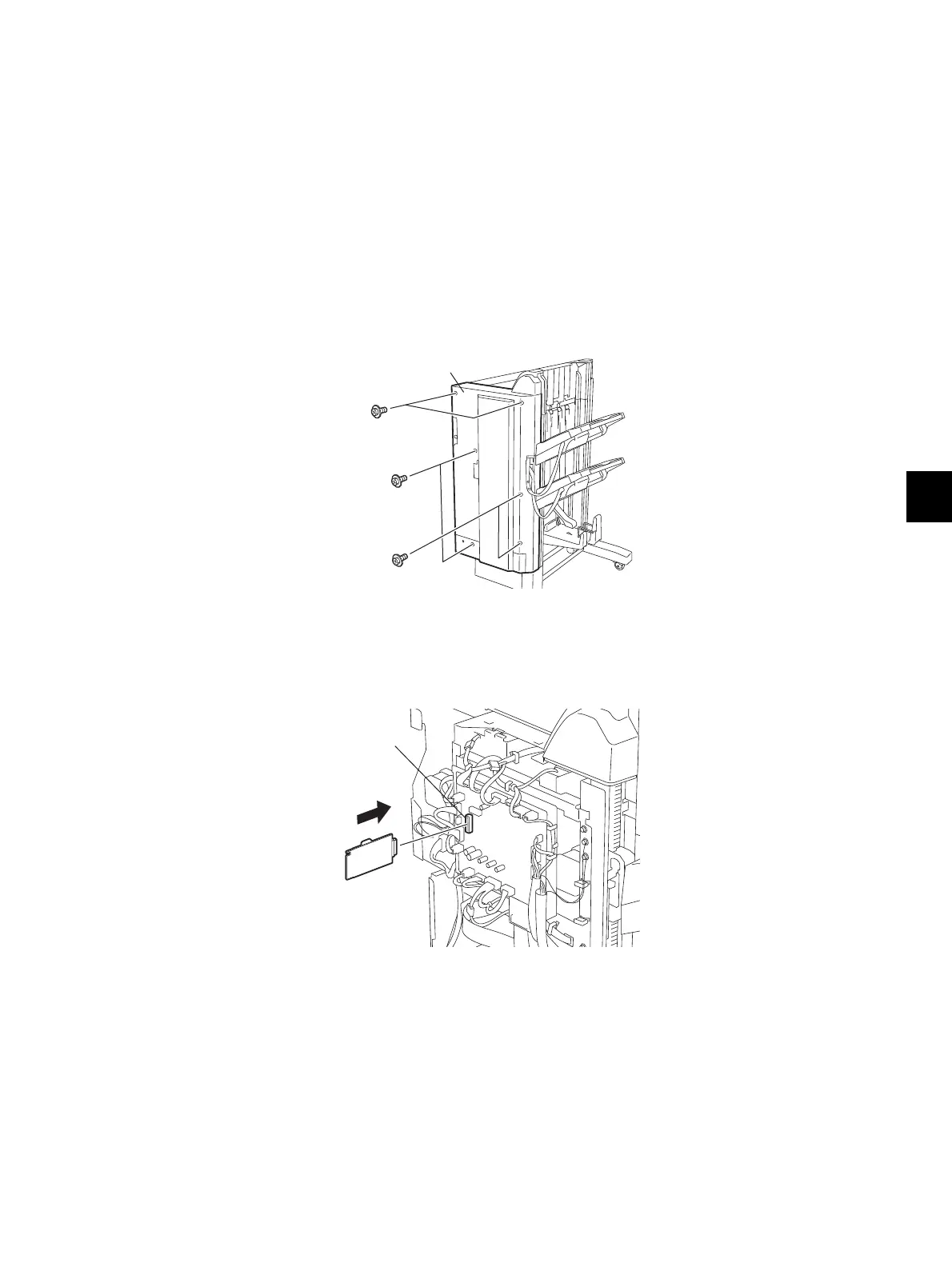

Fig. 8-45
* Connect the finisher interface cable with the equipment after removing the finisher rear cover.
(4) Connect the download jig with the jig connector on the finisher control PC board.
Fig. 8-46
Finisher rear cover
Connector
