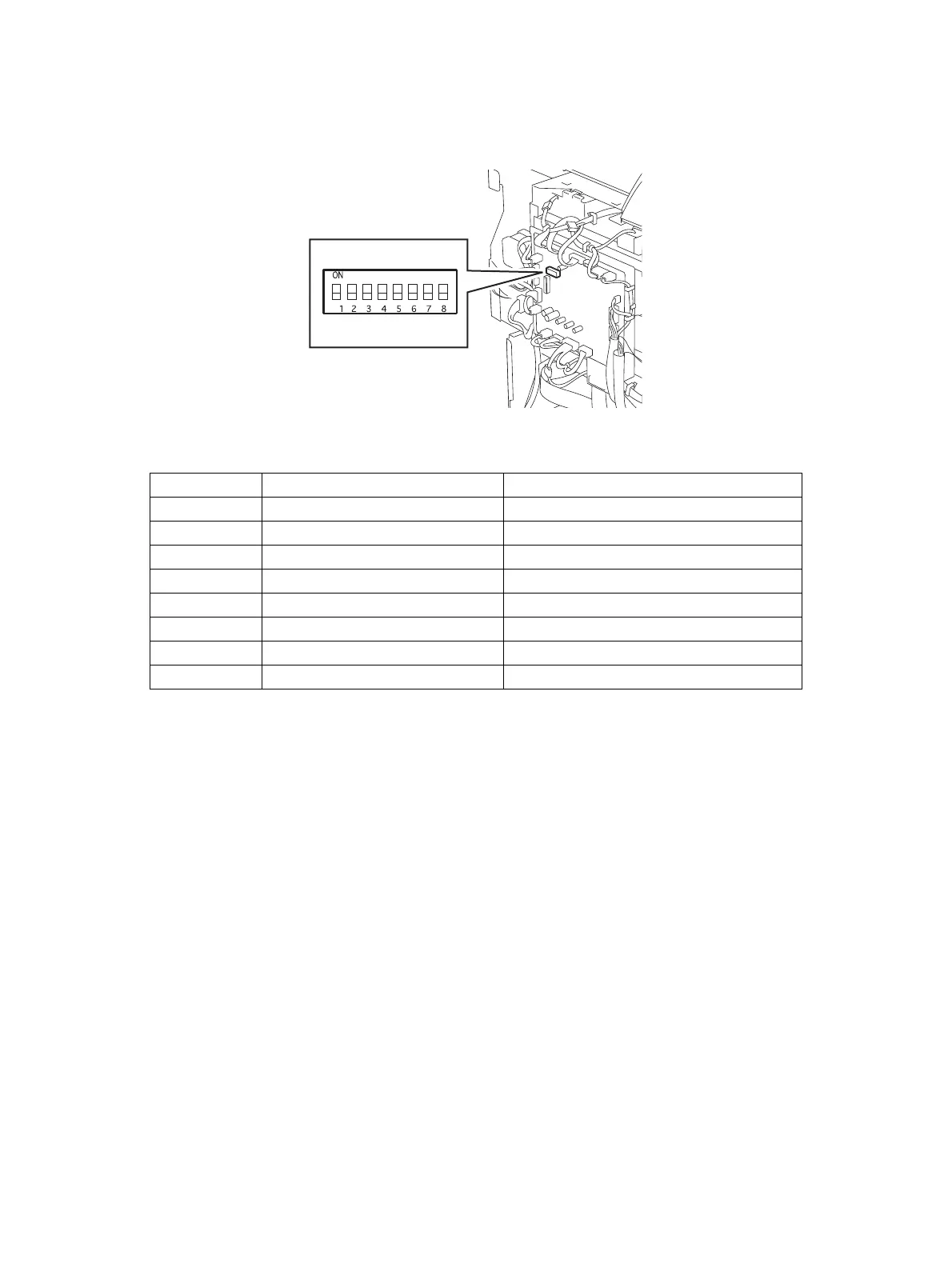

(5) Change the setting of the DIP switch on the finisher control PC board.
Change the setting of the DIP switch as follows according to the firmware to be updated.
Record the current settings of the DIP switch before changing them. After the updating is
completed, return the DIP switch to the status as record.
Fig. 8-47
DIP switch Updating Finisher Firmware Updating Saddle Stitcher Firmware
1OFF OFF
2OFF OFF
3OFF OFF
4OFF OFF
5OFF OFF
6OFF OFF
7OFF ON
8OFF ON
