FIRMWARE UPDATING

8 - 49

(6) Press the [ON/OFF] button while simultaneously holding down the [0] and [8] buttons.

Updating starts automatically and the LED on the download jig lights.

Tip:

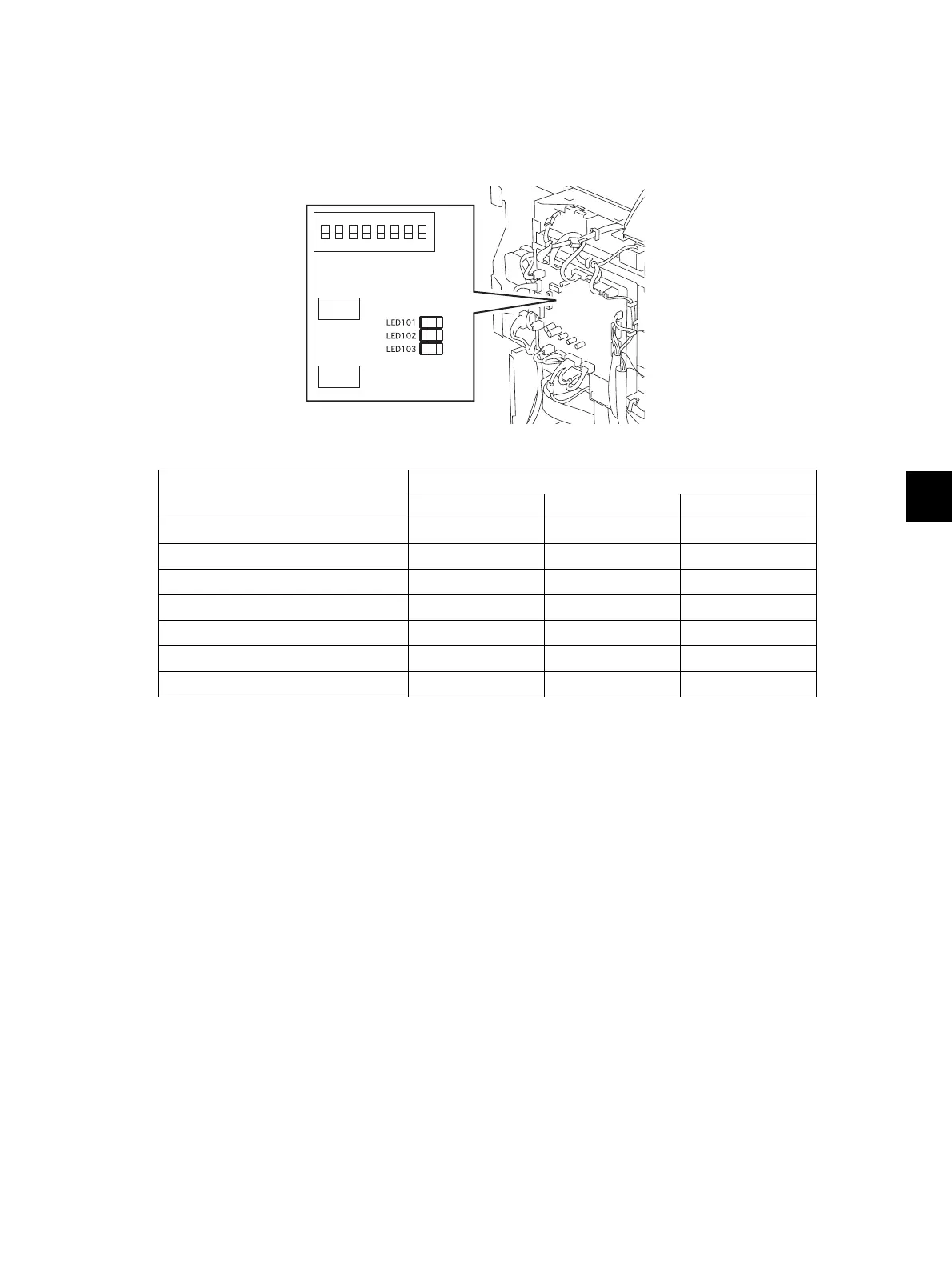

The processing status can be confirmed by the lighting of the LED (LED 101-103) on the finisher

control board.

Fig. 8-48

(7) After the update is completed properly, the LED on the download jig blinks slowly (at interval of

0.8 sec.).

The LED starts blinking approx. 30 sec. (finisher section) or 2 min. 30 sec. (saddle stitcher

section) since the update starts. It is assumed that the update has failed if it does not start

blinking even though 1 min. has passed (finisher section) or 3 min. (saddle stitcher section), or

LED flashes fast (at interval of 0.1 sec.). In this case, shut down the equipment and check the

following items. Then clear the problems and restart updating from the beginning.

• Is the download jig connected properly?

• Is the ROM installed to the download jig properly?

• Is the updating data written on the ROM of the download jig properly?

• Do the download jig and the equipment operate properly?

• Is the DIP switch on the finisher control PC board set properly according to the download

section (finisher or saddle stitcher)?

(8) Turn the power OFF using the main power switch on the right-hand surface of the equipment,

remove the download jig, and then return the DIP switch to the status before updating.

(9) Install the finisher rear cover.

Processing status

LED

LED103 LED102 LED101

0% or above OFF OFF ON

15% or above OFF ON OFF

30% or above OFF ON ON

45% or above ON OFF OFF

60% or above ON OFF ON

75% or above ON ON OFF

90% or above ON ON ON
