Toshiba e-STUDIO2020C - Lcf (Kd-1024)

5
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
PREVENTIVE MAINTENANCE (PM)
5 - 39
5.6.17 LCF (KD-1024)

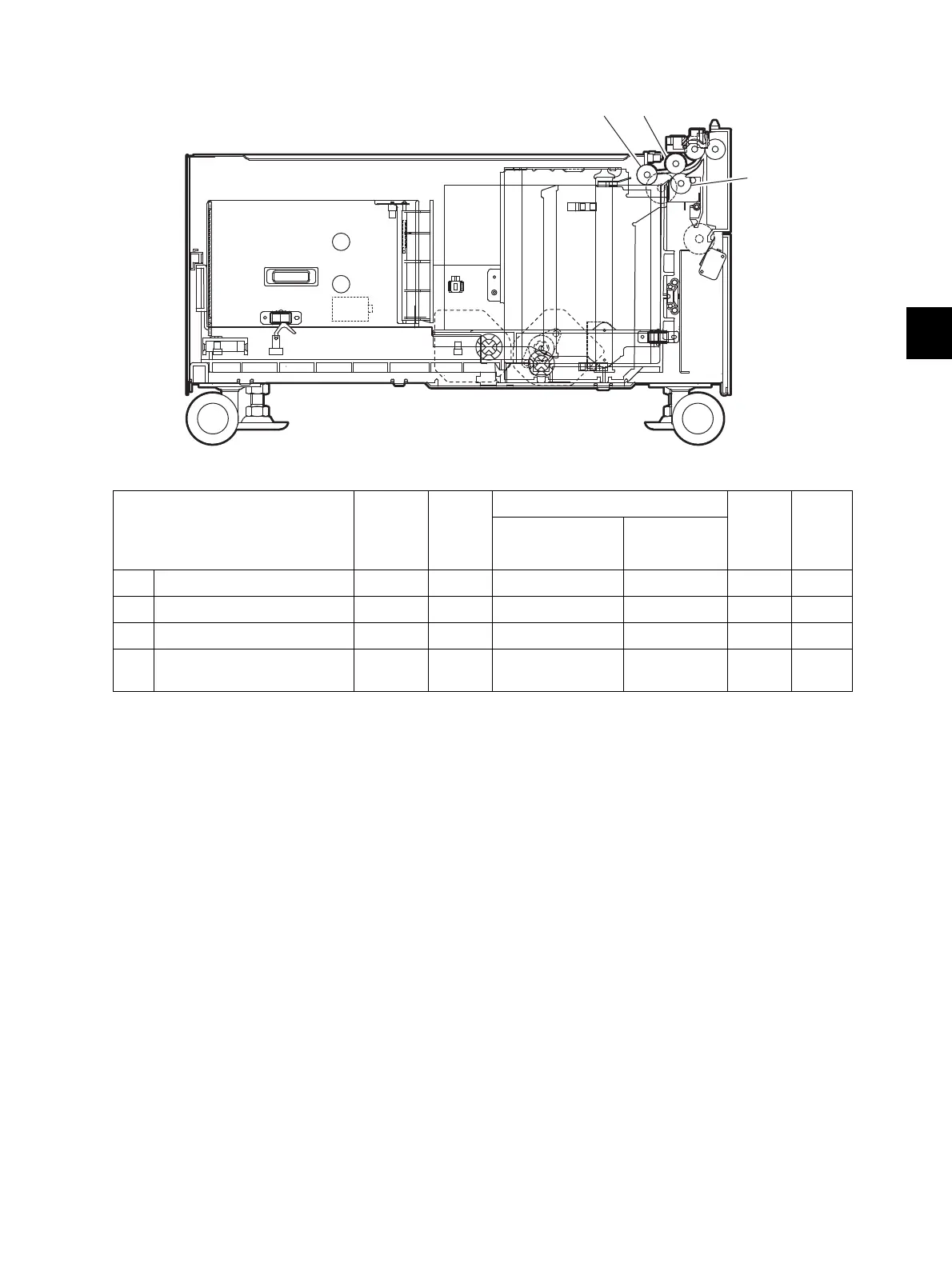

Fig. 5-34
Items to check Cleaning
Lubric
ation/
Coatin
g
Replacement
Operati
on
check
Parts
list
<P-I>
(x 1,000 sheets)
(x 1,000 drive
counts)
Q1 Pickup roller A 160 - 4-30
Q2 Feed roller A 160 - 4-28
Q3 Separation roller A 160 - 5-12
Q4 Drive gear
(tooth face)
W1
Q1 Q2
Q3
