5
© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
PREVENTIVE MAINTENANCE (PM)
5 - 19
5.6.5 Bypass feed unit

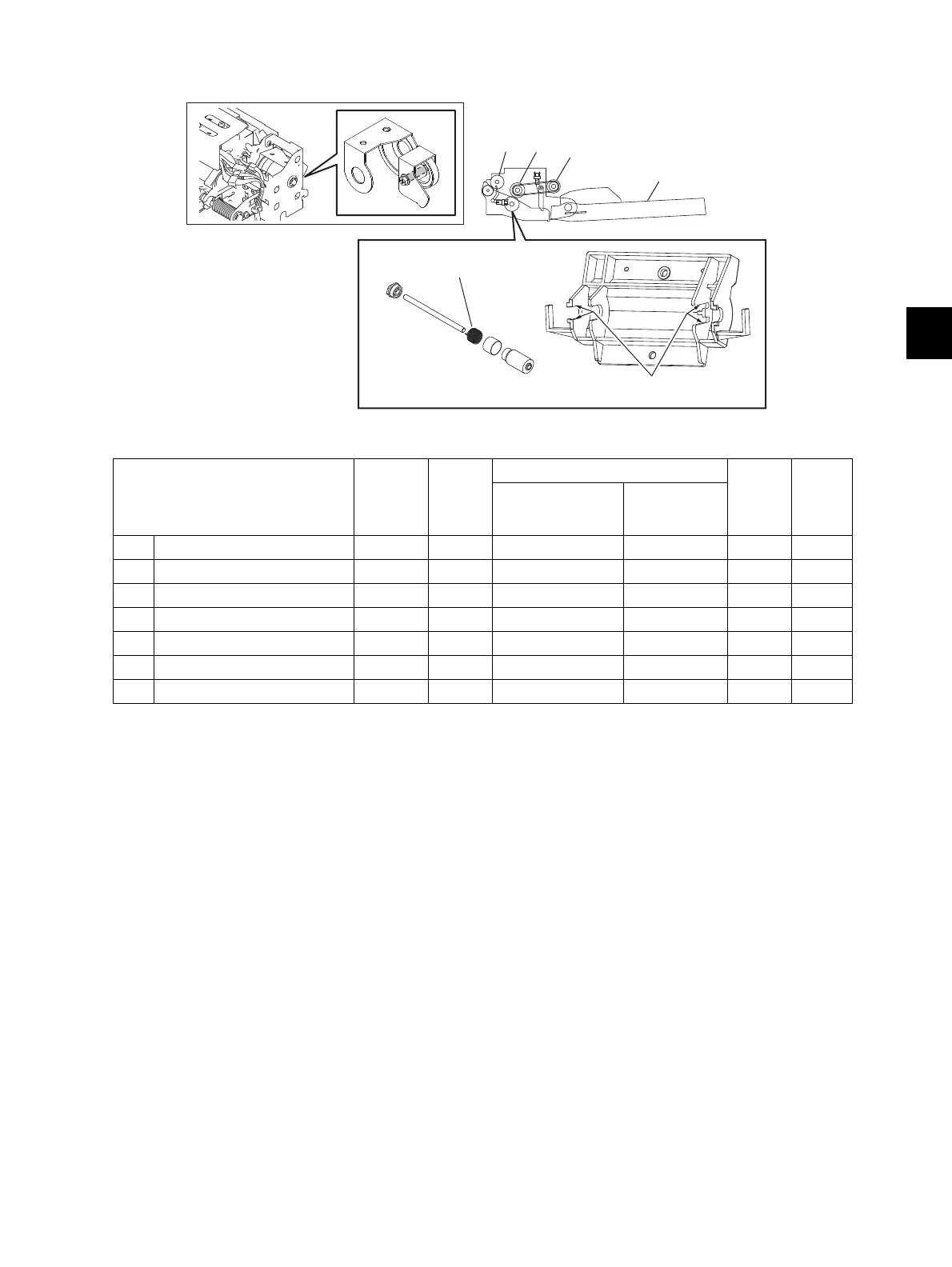

Fig. 5-15
* E3: Separation roller
Apply an even coat of grease (Alvania No.2) to all round the inside of the spring.
When replacing the separation roller, apply 1 rice-sized grain of white grease (Molykote HP-300)
on the places of the holder shown in the figure (4 places).
Make sure that the grease does not adhere to the roller surface. Wipe it off with alcohol if
adhered.
Items to check Cleaning
Lubric
ation/
Coatin
g
Replacement
Operati
on
check
Parts
list
<P-I>
(x 1,000 sheets)
(x 1,000 drive
counts)
E1 Pickup roller 80 - 24-26
E2 Feed roller 80 - 24-37
E3 Separation roller AV, W2 80 - 23-1
E4 Bypass tray B
E5 Drive gear (shaft) W1
E6 GCB bushing bearing L
E7 Transport roller A R R 24-40
E5
E3
E7
E1
E2
E4
E3
