e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C © 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved
POWER SUPPLY UNIT
9 - 6

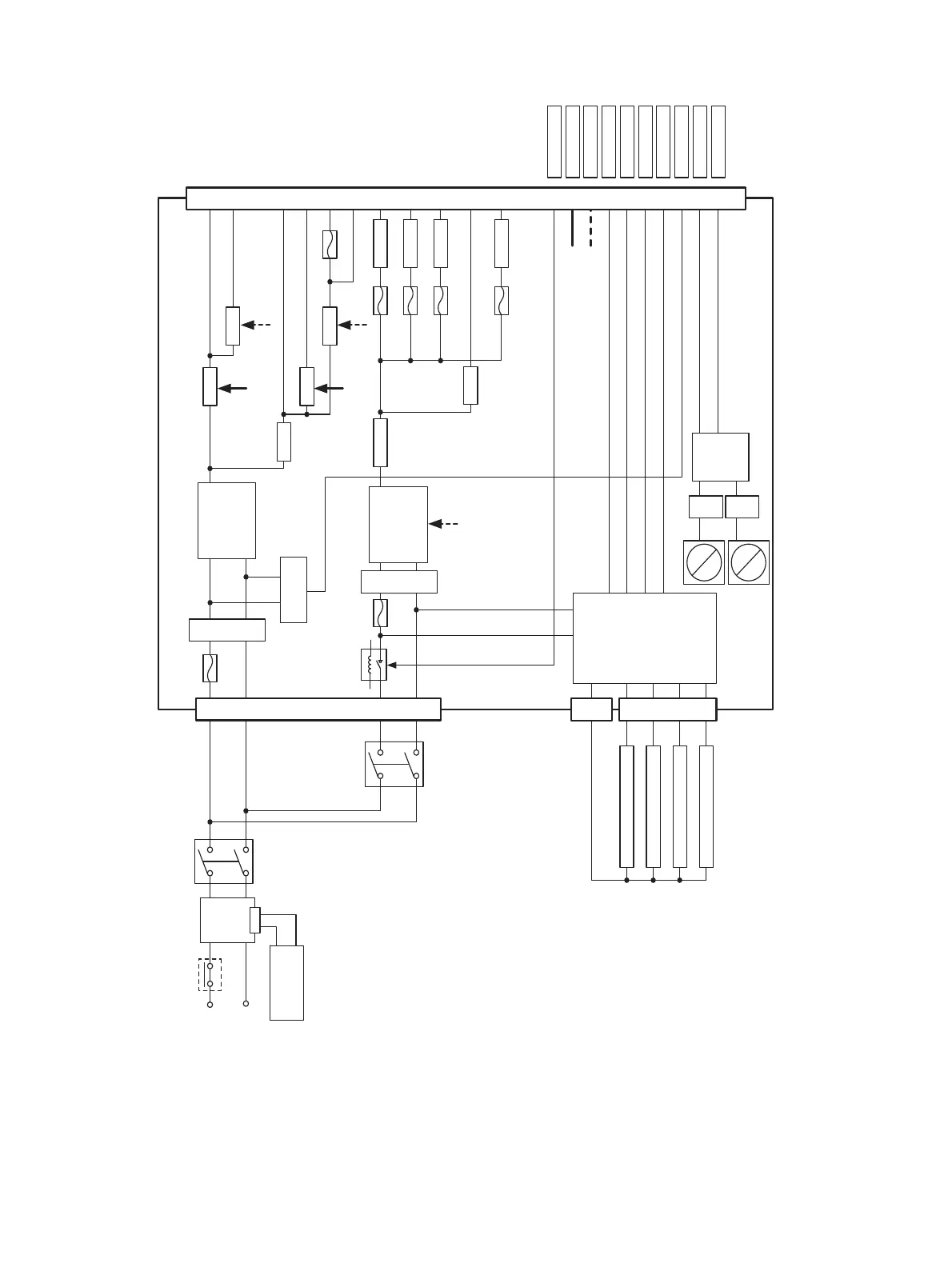

9.6 Configuration of Power Supply Unit
Fig. 9-1
L
N
Breaker
RLY1
*:e-STUDIO4520C only
RLY-ON
24VD3
24VD2
24VD1
24VD424VD
5VD
5VS
5VA
5VB
12VA
12VB
Center heater lamp
Side heater lamp
Pressure roller lamp
Sub heater lamp*
SYS-EN
PWR-EN
LAMP1ON
LAMP2ON
LAMP3ON
LAMP4ON
PWR-DN
FAN ON_H
FAN ON_L
CN402 ~ CN407
CN401
CN409
CN5 CN6
CN408
F203
F202
F201
F204F102
F101
F205
AC-DC
power supply
12V
AC-DC
power supply
24V
Heater lamp
control circuit
FAN
control
circuit
FIL
board
Damp heater
Main switch
Cover interlock
switch
Switching regulator
AC input
Noise filter
Noise filter
AC OFF
detection
