Universal Programmable Control Module (UPCM) Interface
BMTW-SVN01F-EN 119

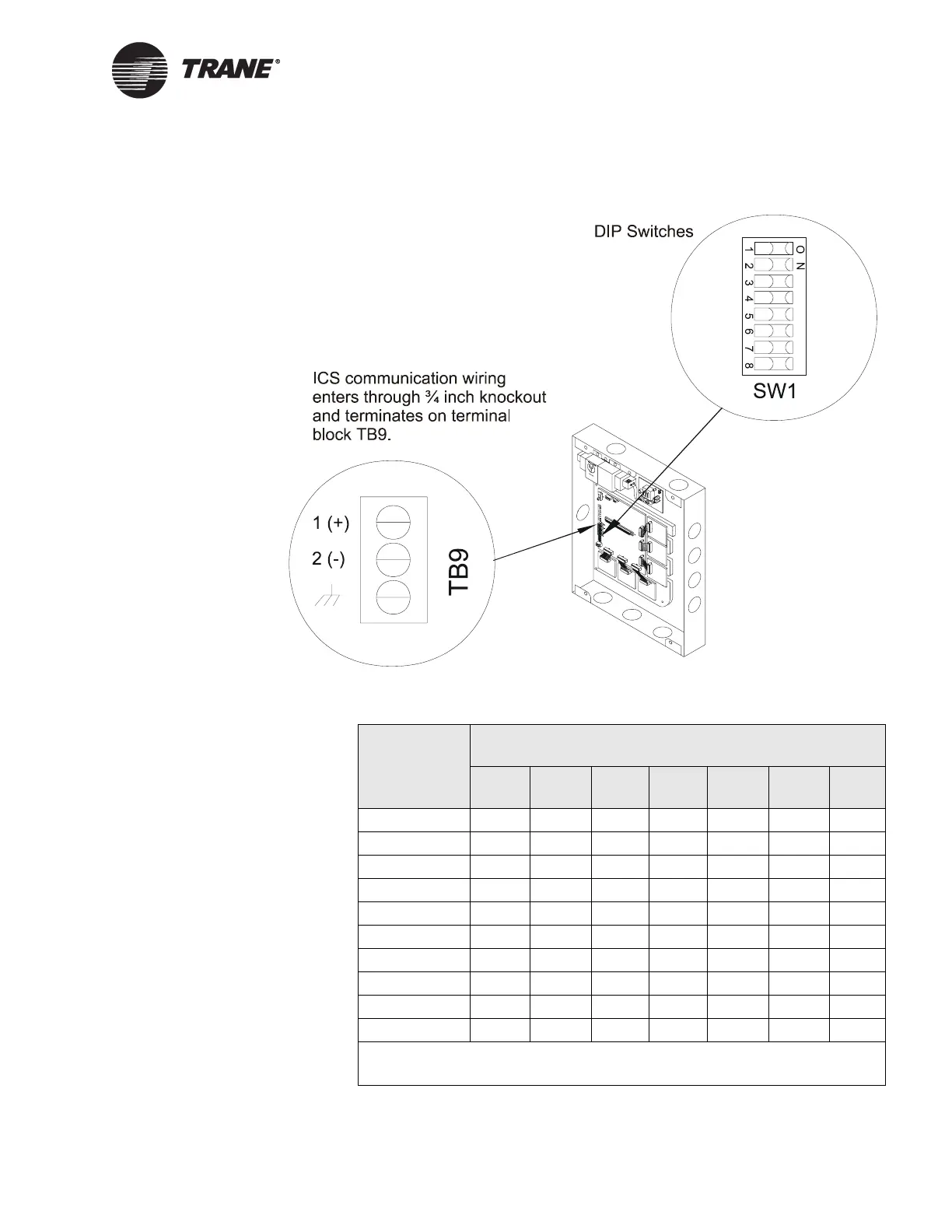

Figure 56. ICS Termination Points and DIP Switch Location on the
UPCM
Table 22. UPCM Address Settings
UPCM SW1 DIP Switch Settings
UCM Address 1 2 3 4 5 6 7
32 OFF OFF OFF OFF OFF on OFF
33 on OFF OFF OFF OFF on OFF
34 OFF on OFF OFF OFF on OFF
35 on on OFF OFF OFF on OFF
36 OFF OFF on OFF OFF on OFF
37 on OFF on OFF OFF on OFF
38 OFF on on OFF OFF on OFF
39 on on on OFF OFF on OFF
40 OFF OFF OFF on OFF on OFF
41 on OFF OFF on OFF on OFF
Note:
DIP switch SW1-8 is not used. Set it to the off position.
