Installing Coaxial Cable Connectors
BMTW-SVN01F-EN 163
Installing an ARCNET Card
The installation procedure for installing the ARCNET card into a BCU
panel applies to all of the cards discussed. For information on installing
an ARCNET card in a PC, refer to the PC manufacturer’s literature.
nCAUTION
Hazardous Voltage!
Turn off power at the BCU before installing the ARCNET card. Failure to
turn off power before servicing may result in human injury or damage
to equipment.
To install an ARCNET card into a BCU panel:
1. Choose one of the card slots in the BCU’s ISA bus.
2. Remove the screw from the card mounting bracket on the BCU.
3. Insert the ARCNET card into the slot.
4. Secure the card in place with the mounting screw.
Installing Coaxial Cable Connectors
1. Cut off any excess cable, leaving two extra feet.
2. Push the small end of the crimp ferrule (see Figure 74) onto the end of
the cable.

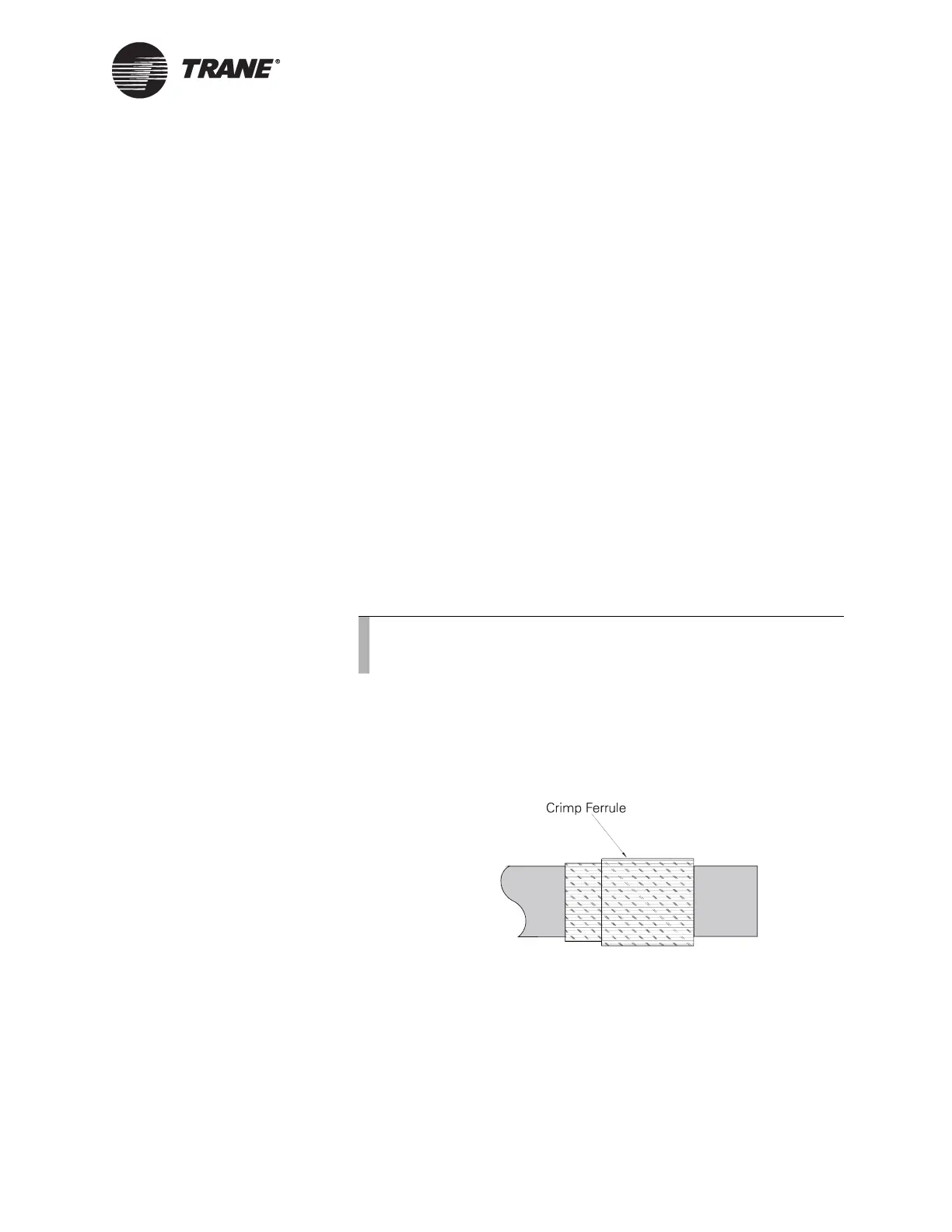

Figure 74. Crimp Ferrule
3. Using the coaxial cable stripper, remove 1/2 inch of the outer jacket
from the end of the cable as shown in Figure 75.
Note:
RG-62 cables typically use two-piece connectors (as shown in
the following figures). RG-58 cables use three-piece connectors.
