Trane Tracer MP581/AH541 User Manual

Chapter 5 UCM Wiring and Addressing
76 BMTW-SVN01F-EN

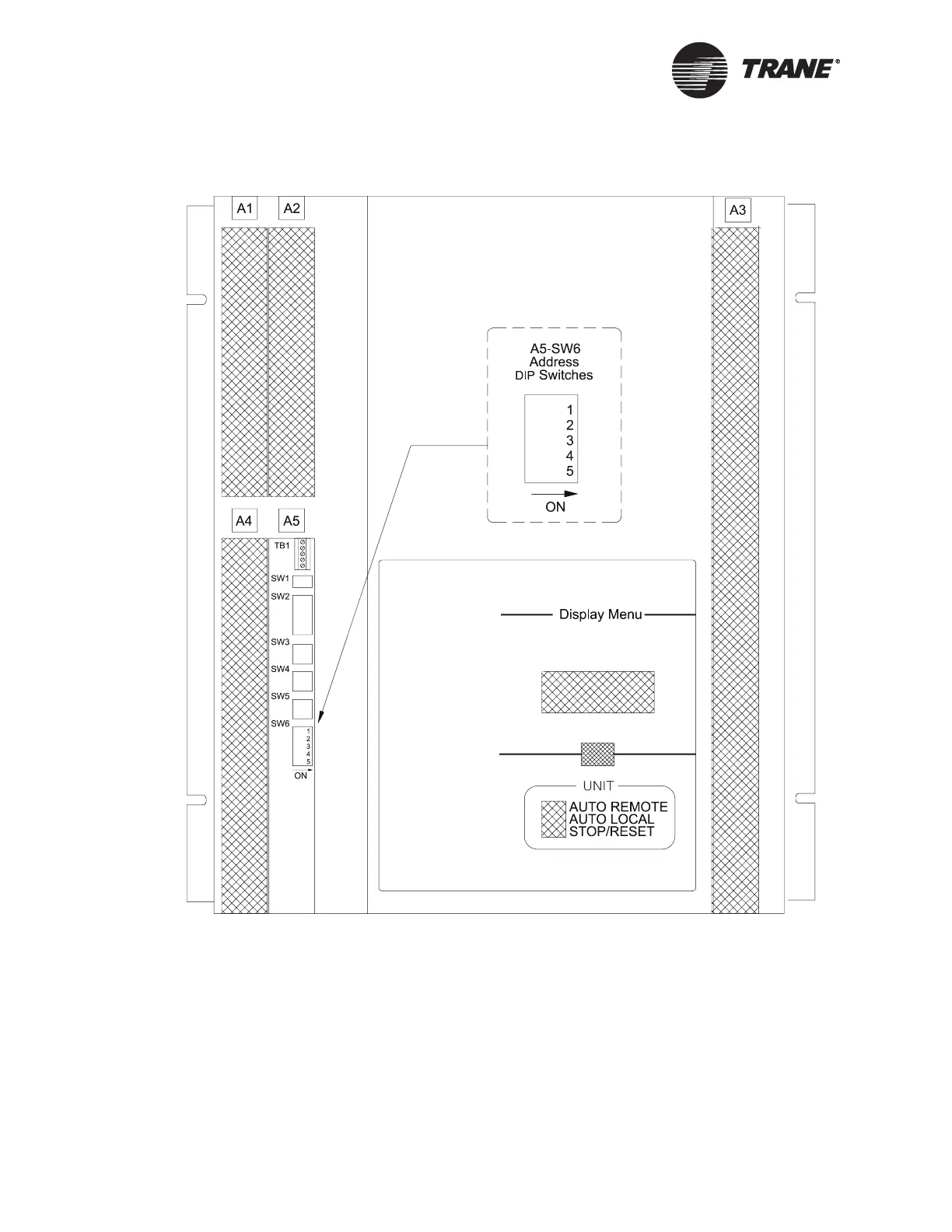

Figure 36. Location of Address DIP Switches on the CSC UCM
Device Addressing
Each UCM must have a unique address that is set using a DIP switch on
the CSC. The location of the Tracer Summit address DIP switch on the
CSC is shown in Figure 36. For CSC address DIP switch settings, refer to
Table 11 on page 77.
