Binary Output
BMTW-SVN01F-EN 43

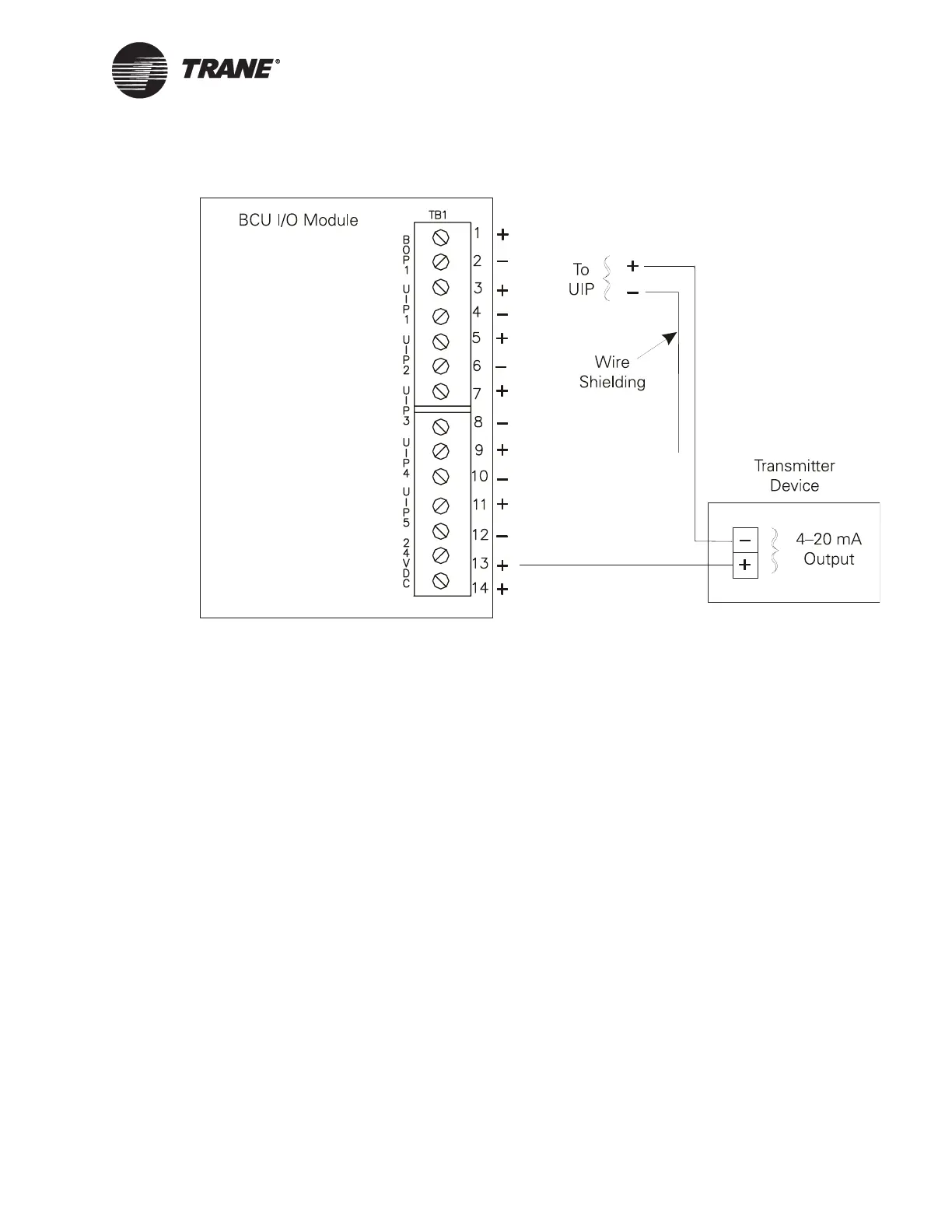

Figure 15. Transmitting Device to Power Supply Wiring Diagram
For all UIPs in the BCU I/O module, you must create and set up the nec-
essary objects that will provide units, calculation, and alarming to the
desired input. Refer to the Tracer Summit System Programming guide for
creating and setting up the necessary objects.
Binary Output
A single triac powered binary output is available for use. The triac
accepts loads up to 500 mA at 24 Vdc. Refer to Figure 13 on page 38 for
the location of the binary output, which is labeled BOP1.
For the binary output on the BCU I/O module, you must create and setup
a binary output object that will control this output. Refer to the Tracer
Summit System Programming guide for creating and setting up binary
objects.
