Chapter 5 UCM Wiring and Addressing
124 BMTW-SVN01F-EN

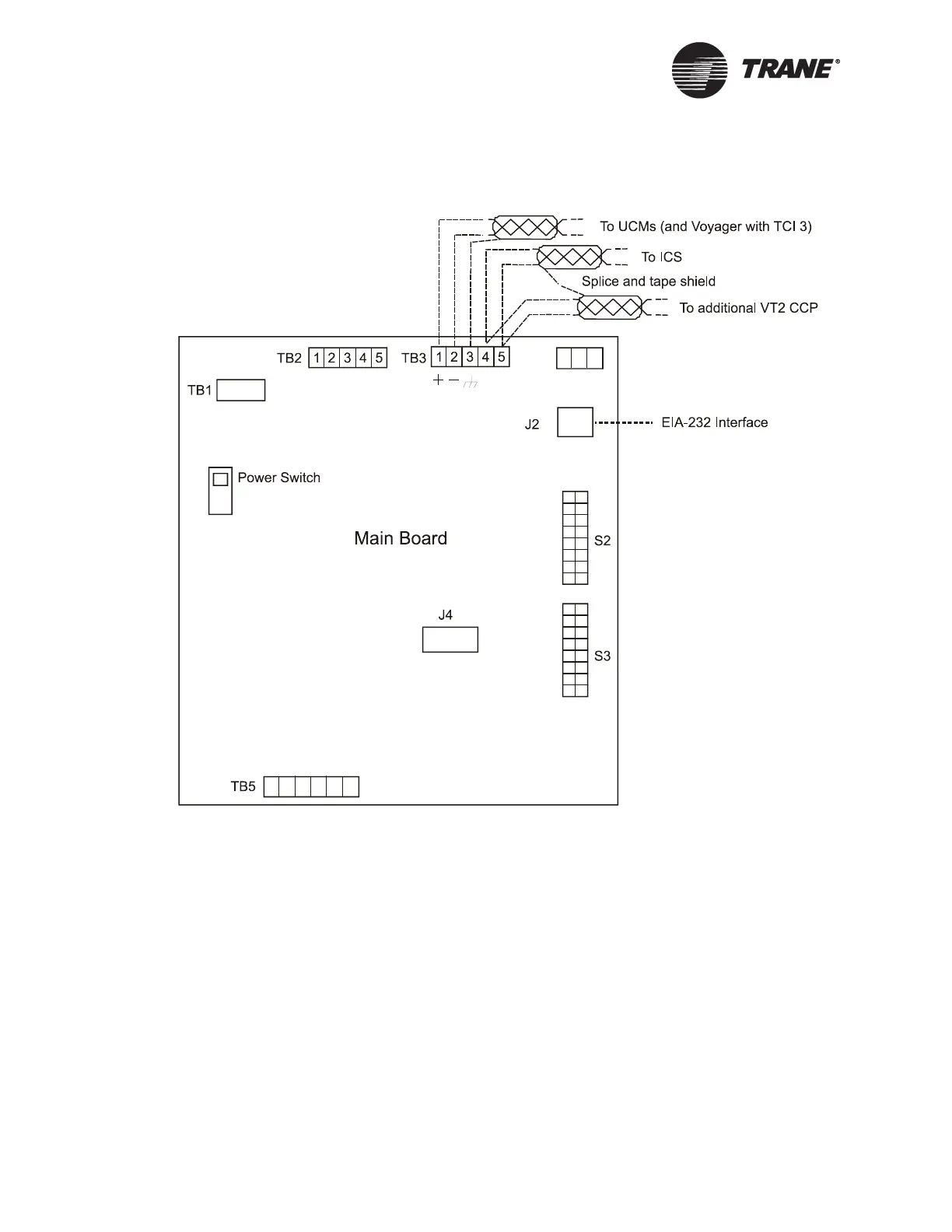

Figure 58. ICS Connections Between the BCU and the VariTrac II CCP
on an Isolated Comm3 Link
Device Addressing
Each UCM must have a unique address on each link. VariTrac II CCPs
can have an address from 1 through 32. The address is set with the S2
DIP switches and must match the address that was set in Site Configura-
tion for Tracer Summit.
• For details about setting the address, refer to the VariTrac II CCP lit-
erature.
• For VariTrac II CCP DIP switch settings, refer to Table 23 on
page 125.
