Network Topology
BMTW-SVN01F-EN 155
in the bus topology at each hub. A typical bus/star topology for an
ARCNET LAN used with Tracer Summit is shown in Figure 72.

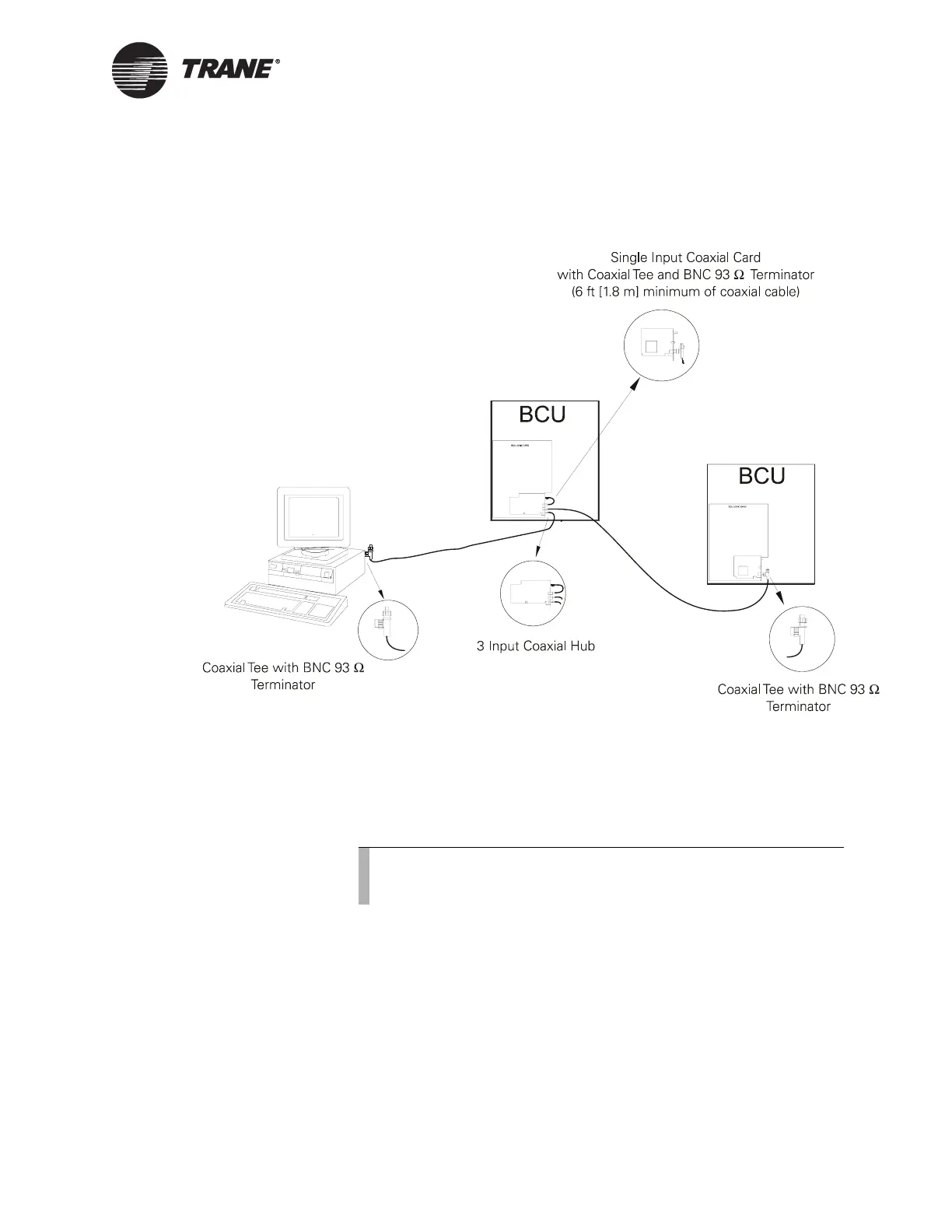

Figure 72. Typical Tracer Summit (ARCNET) Bus/Star Topology
Ethernet LAN
For information about maximum cable length and maximum cable dis-
tance between two devices on a communication link, refer to Table 30 on
page 152. Termination is provided by installing a 50 Ω BNC terminator.
ARCNET LAN
For information about maximum cable length and maximum cable dis-
tance between two devices on a communication link, refer to Table 30 on
page 152. Termination is provided by installing a 93 Ω BNC terminator.
Note:
For further information on designing an Ethernet network,
refer to BAS-EB-70, Tracer Summit for Windows and Ethernet.
