Chapter 6 Network Wiring
148 BMTW-SVN01F-EN
Tracer Summit PC Workstations
The software version on a Tracer Summit PC Workstation determines the
type of network it is able to exist on.
Tracer Summit PC Workstations with Version 11 or higher software:
• Can communicate with BCUs (BMTS) and modular BCUs (BMTW)
• Can exist on either a dedicated BACnet network or a shared IP
network

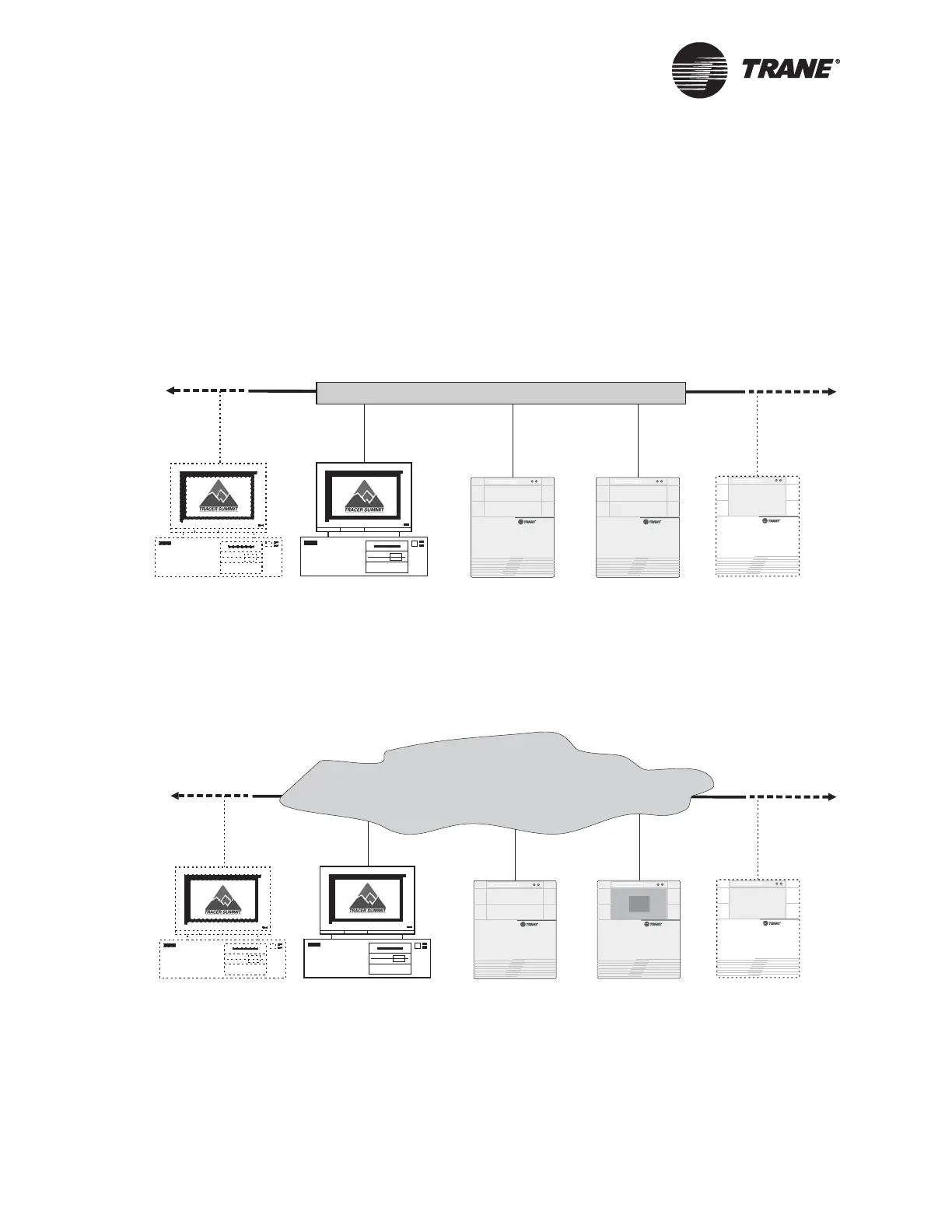

Figure 66. Dedicated Tracer Summit Network
Figure 67. Shared Tracer Summit Network
TRACER SUMMIT
ALM PWR
TRACER SUMMIT
ALM PWR
BCU (BMTW)
Tracer Summit
PC Workstation
BCU (BMTS)
Ethernet or ARCNET
TRACER SUMMIT
ALM PWR
Additional BCUs
(BMTW or BMTS)
Additional
Tracer Summit
PC Workstations
TRACER SUMMIT
ALM PWR
BCU (BMTW)
Tracer Summit
PC Workstation
TRACER SUMMIT
ALM PWR
Additional
BCUs (BMTW)
To other
IP network
devices
Additional
Tracer Summit
PC Workstations
BCU (BMTW)
with Operator
Display
Ethernet IP
TRACER SUMMIT
ALM PWR
To Next Page
