Chapter 6 Network Wiring
164 BMTW-SVN01F-EN

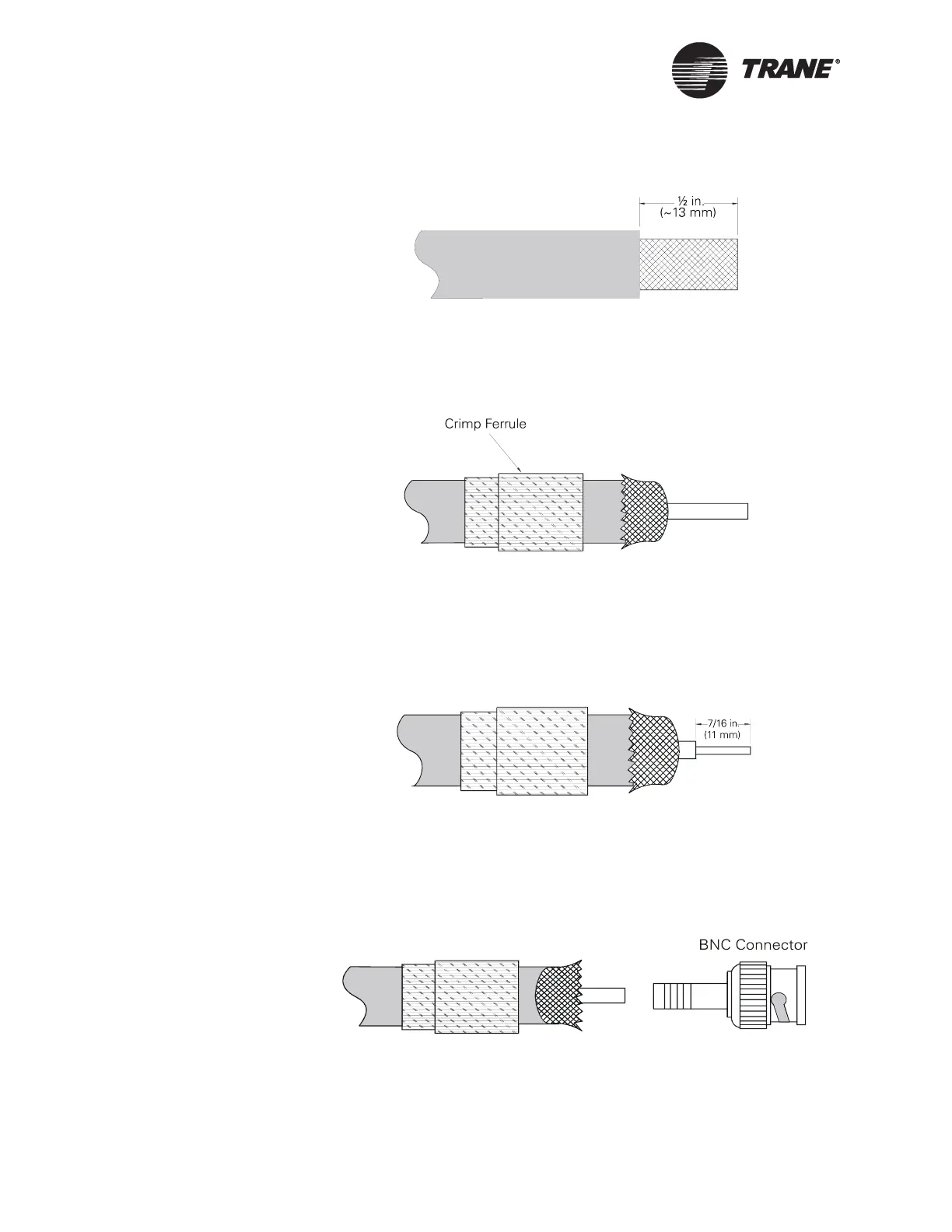

Figure 75. Removing Braid Shield From Cable
4. Fan the coaxial braid slightly and fold it back over the outer jacket as
shown in Figure 76.
Figure 76. Fanning Back the Coaxial Braid
5. Using the coaxial cable stripper, remove 7/16 inch of the center con-
ductor shield from the end of the cable as shown in Figure 77. If a
small plastic cord is present, remove it using a knife or small wire
cutter.
Figure 77. Removing Center Conductor Shield
6. Push the BNC connector body onto the cable.
7. Fan the braid around the connector body, and slide the crimp ferrule
over the braid and onto the connector as shown in Figure 78.
Figure 78. Installing Connector Body Assembly to Cable
8. With the proper crimping tool, crimp the ferrule onto the braid and
connector body.
