Valtra Versu N174 V

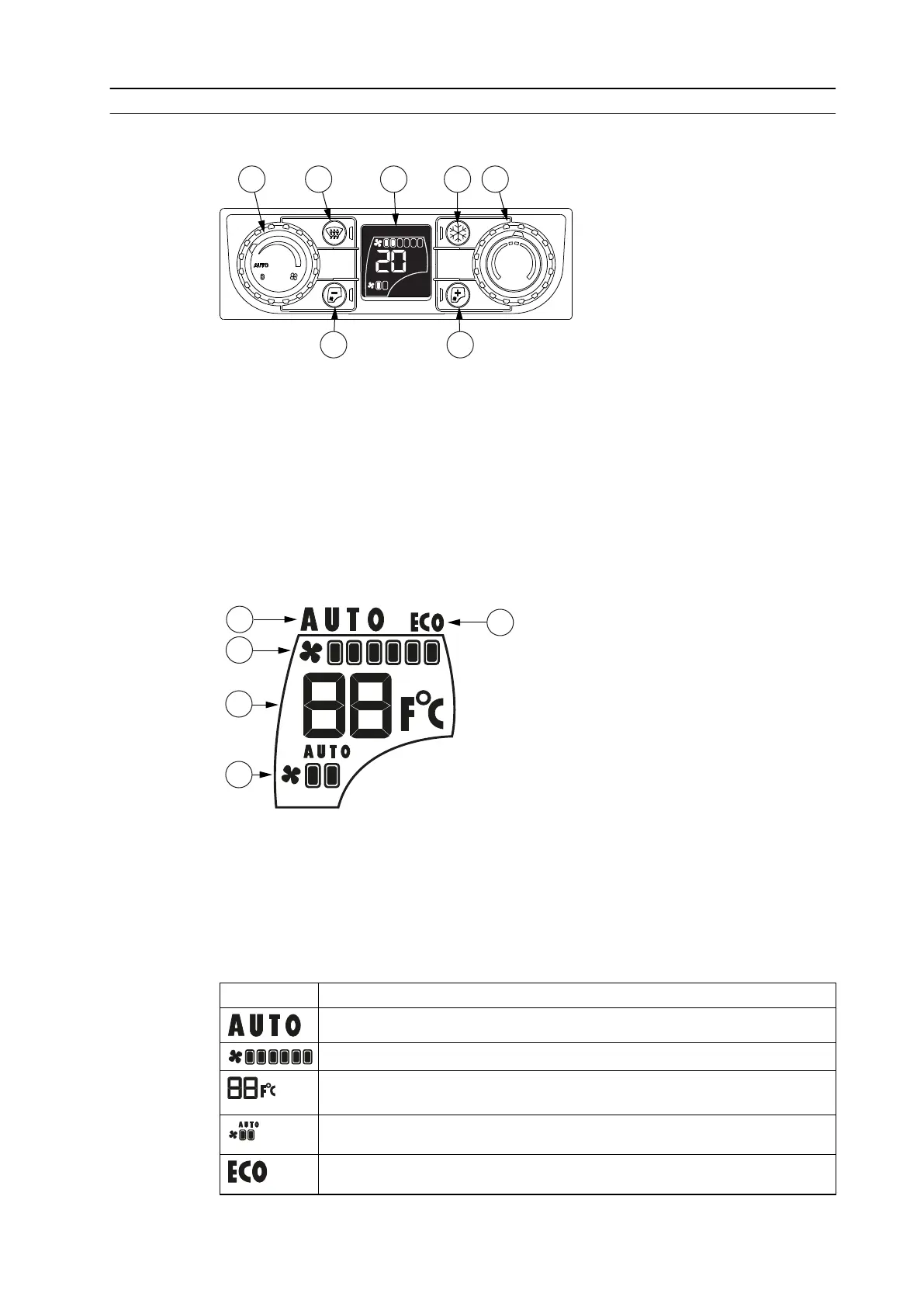

3.6.4.1 Automatic air conditioning control panel and display
Control panel
AUTO
AUTO
°
C
1
2
4
5
3
6
7
GUID-DDF9F4A0-689E-45E8-B4AA-5455ED35A00D
1. Fan speed control knob (selection OFF/Auto/Manual)
2. Defrost
3. Display
4. Air conditioning ON/OFF
5. Temperature control knob
6. Additional heater fan speed decrease (selection Manual/OFF/Auto)
7. Additional heater fan speed increase (selection ON/Manual)
Display
1
2
3
4
5
GUID-F20FB364-0A39-4A5B-BE19-605EA501B52F
1. Automatic mode
2. Fan speed
3. Set temperature
4. Additional heater
5. ECO mode
Indicator
Indication
Displayed when the automatic fan speed and the AC compressor are on.
Displays the fan speed.
Displays the selected target temperature.
If adjusted below 16°C, LO is displayed. If adjusted over 29°C, HI is displayed.
Displays the additional heater fan status and speed (OFF, 1, 2, AUTO).
Displayed when the ECO mode (temperature control without the AC compressor switched
on) is on.
