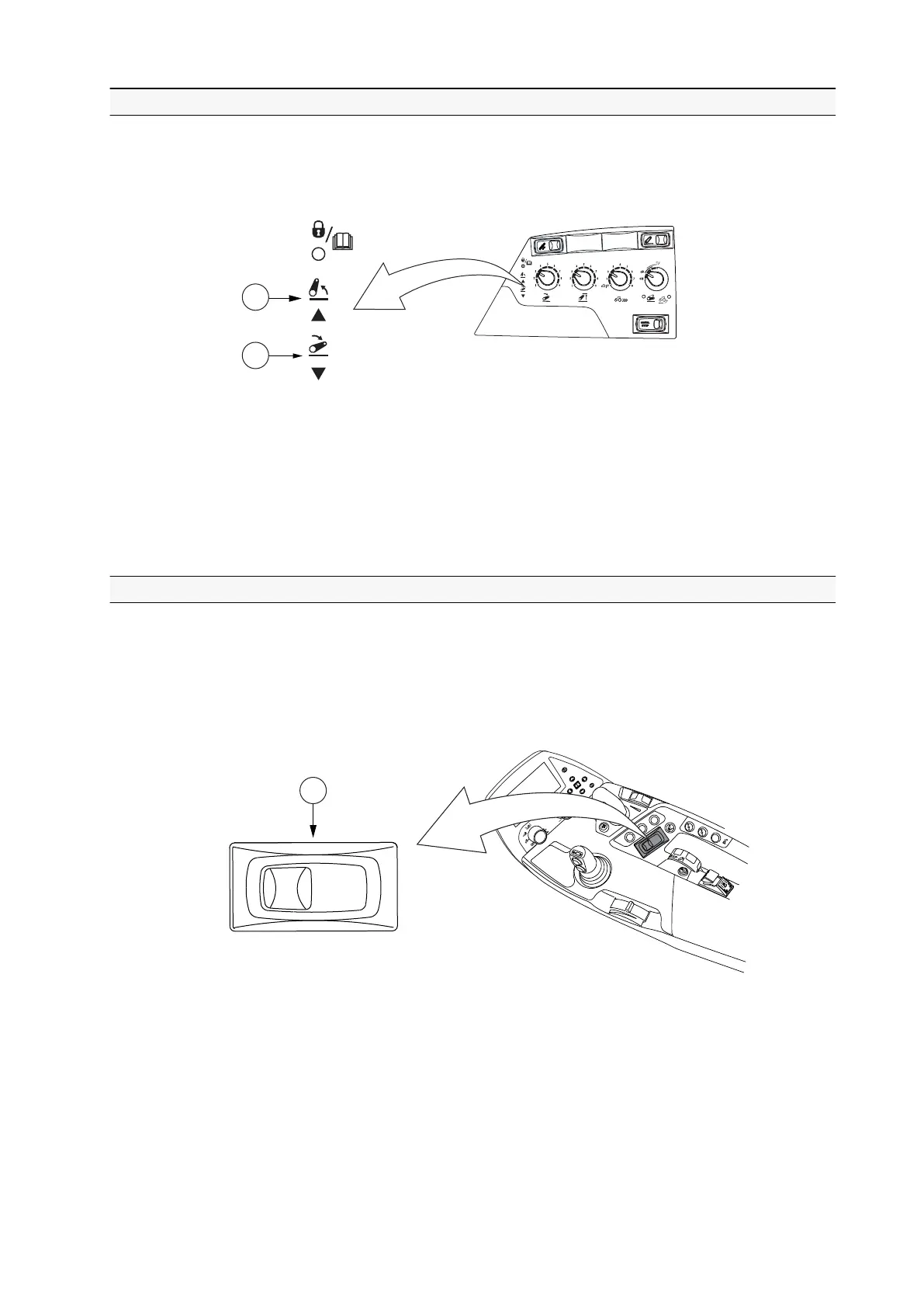

3.13.2 Lifting/lowering indicator lights
The indicator lights indicate when the lower links are moving.
Lit indicator light indicates that the rear linkage is being used.
GUID-F5D129A3-D4BC-4BF1-890D-C5628501ACCA
1. Lifting indicator light
2. Lowering indicator light
• The lifting indicator (red) is lit when the lower links are lifting.
• The lowering indicator (green) is lit when the links are lowering. The lowering
indicator light is lit also when rear linkage is set to floating position.
3.13.3 Activating the linkage
Use the lift/stop/lower switch to activate the linkage.
The linkage has to be activated every time the power has been turned on or
when the lifting/lowering switch or lifting/lowering push buttons have been used.
1
2
OFF
ON
OFF
AUTO
CONTROL
AUTO
CONTROL
GUID-130C7A50-B4B5-4304-9CB6-D59C47711C7C
1. Lift/stop/lower switch
