3. Fasten the pin to the appropriate hole to obtain the desired distance between
the lower links.
Attaching the pin to the oval hole allows a slight lateral movement of the
lower links.
3.14.6 Automatic side limiters
The automatic side limiters are used to limit the distance between the lower links.
They can be set to a fixed position, similar to the standard side limiters, or they
can be set to be released to floating position automatically. The automatic side
limiters are optional equipment.
IMPORTANT: Adjust the automatic side limiters so that they do not come into
contact with the rear wheels.

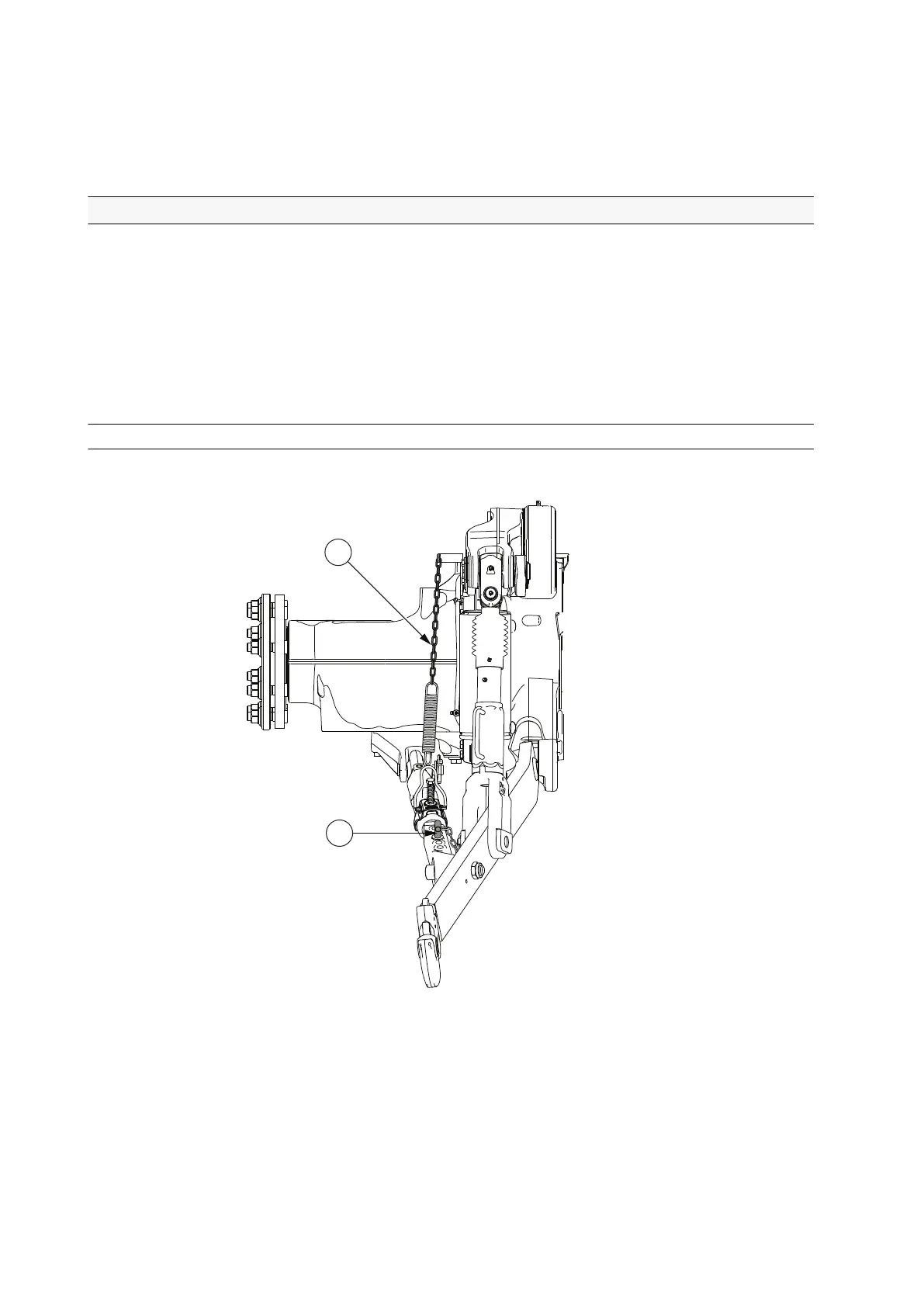

3.14.6.1 Setting automatic side limiters to fixed position
GUID-4CDE4C5B-B4A3-413A-99C2-AF79D4A77346
1. Holding chain
2. Limiting pin
1. Adjust the chain to the length where it does not release the side limiter's
locking when the linkage is lowered down.
2. Pull out the limiting pin.
3. Operation
