• Two valves with joystick control (1F and 2F)
• Two valves with control levers (3F and 4F)
• Two 6/2 change valves for simultaneous coupling of front linkage and front
loader
3.15.1 Auxiliary hydraulic controls and functions
The auxiliary hydraulic controls are positioned on the armrest.
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
1
2
3
4
5
6
7
8
GUID-5E7847F1-C159-4CC6-8084-288E63FFDAFB

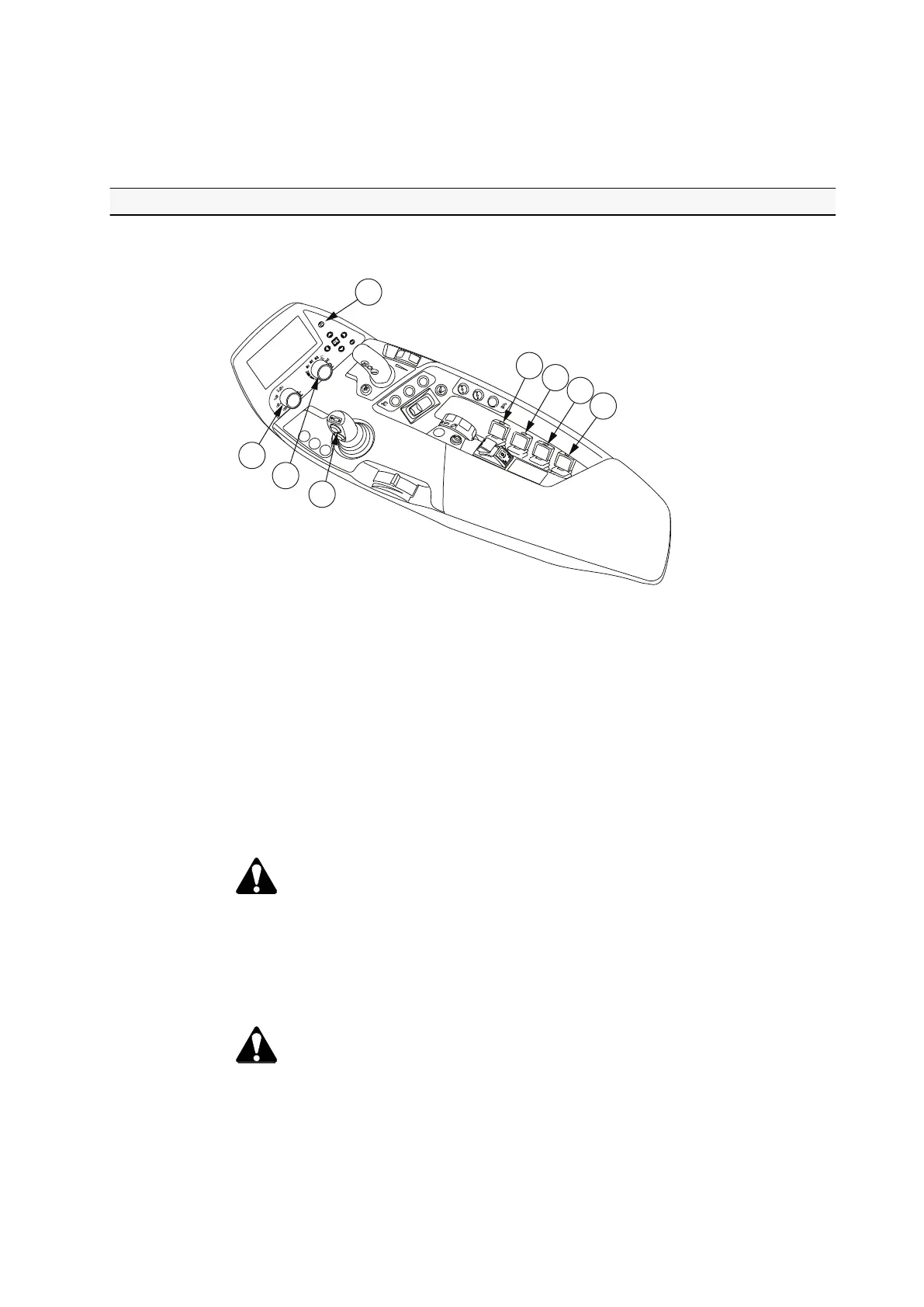

1. Auxiliary hydraulics on/off push button
2. Control lever for auxiliary hydraulics rear valve 3 (optional)
3. Control lever for auxiliary hydraulics rear valve 4 (optional)
4. Control lever for auxiliary hydraulics rear valve 5 (optional) / front valve 3F
(optional)
5. Control lever for auxiliary hydraulics front valve 3F (optional) / front valve 4F
(optional)
6. Joystick functions selector
7. Selector for the predefined factory/user settings
8. Joystick with push buttons
DANGER:
To prevent accidental auxiliary hydraulics control movements, always
turn off the auxiliary hydraulics during road driving and during work if
you do not need it.
All the standard and optional valves have the same functions, except for the
on/off valves.
WARNING: The programmable features of the joystick or other
controls MUST NOT be used to operate a loader. In order to prevent
involuntary loader motion, the loader joystick controller must be of a
self-neutralising type. When the operator releases his grip on the
joystick, the joystick must return to a non-operational neutral position -
except for float detent position in the loader lower direction.
