4.8.6.6 Fuses and relays in the cab electric centre
The fuses and relays in the cab electric centre are listed in the following tables.
The fuse diagram is on the reverse side of the electric centre cover. There is
space for spare fuses. The cab electric centre contains 36 fuses and the nominal
current rating of these fuses is 5-25 A.
GUID-AE82D857-4258-4575-8938-1506A5C211BE

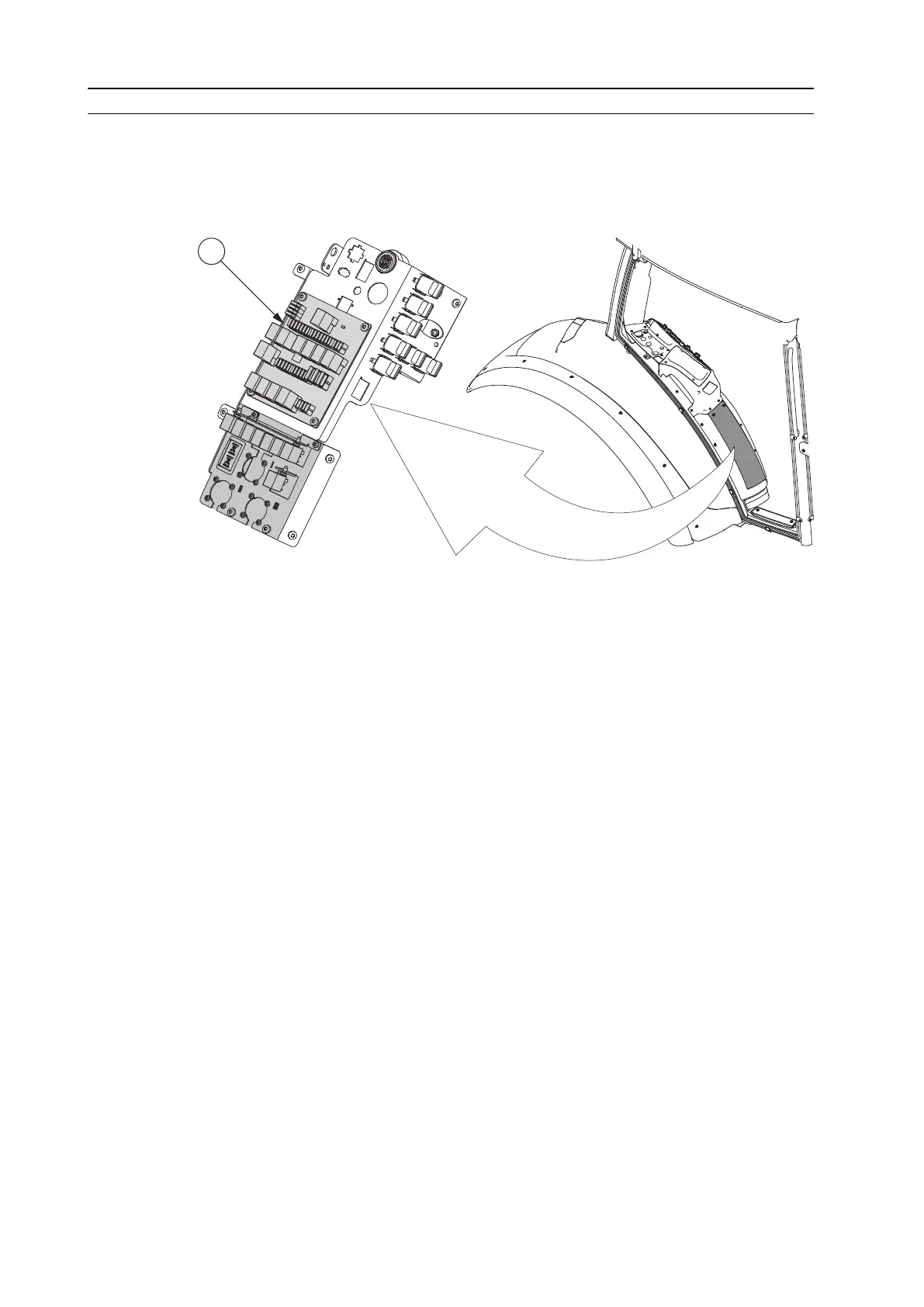

1. Cab electric centre
4. Maintenance
- 436 -
