2. Press down the side of the switch opposite to the symbol to use the lifting
function (+).
The optional push buttons on the rear mudguards can be used for controlling
the rear on/off valve 1.These buttons work in the same way as the switch for
rear on/off valve 1 in the cab.
GUID-DB9F68D4-4A2B-4750-95C3-A065B1AFE25C

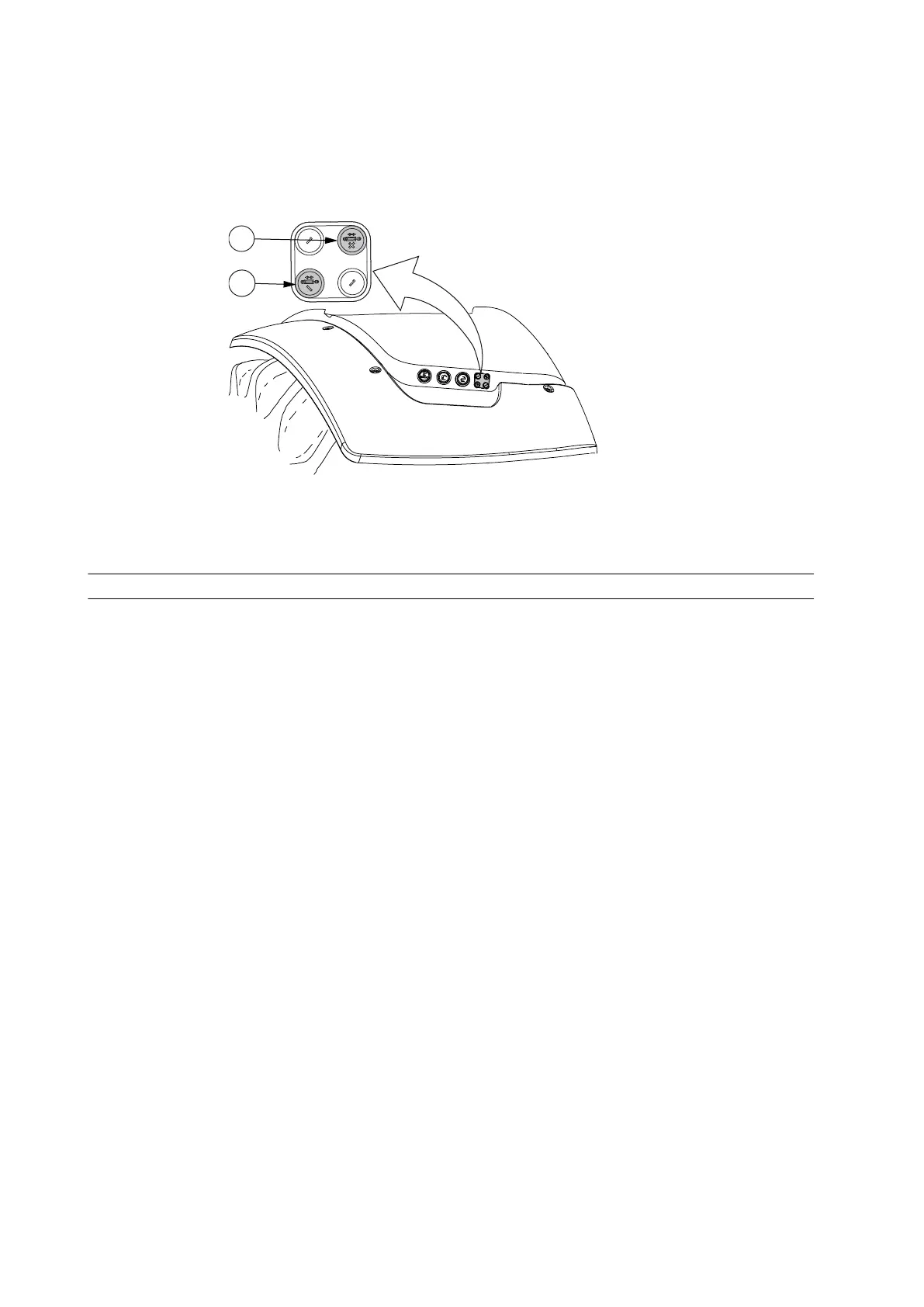

1. Push button for the rear on/off valve 1, lifting function (+)
2. Push button for the rear on/off valve 1, lowering function (-)
3.15.1.7 Controlling the rear valve 1 from rear mudguard push buttons
You can control the auxiliary hydraulic functions on the rear valve 1 from outside
the cab by using the push buttons on the rear mudguards. This is useful, for
example, for adjusting the length of a hydraulic top link when attaching
implements.
Before you start, you have to activate the auxiliary hydraulics with the auxiliary
hydraulics on/off push button.
IMPORTANT:
The rear mudguard push buttons work only when the driving speed is lower than
the safety limit of 2 km/h.
When the rear mudguard push buttons are used, the oil flow is limited to 30% of
the selected predefined factory/user settings for auxiliary hydraulics. You cannot
activate any other hydraulic functions at the same time.
3. Operation
